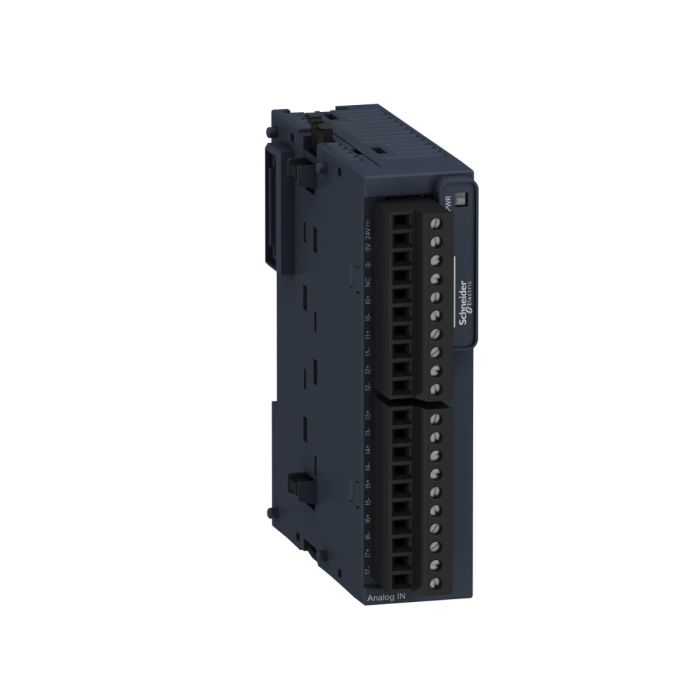

This product is part of the Modicon TM3 range,an offer of expansion I/O modules for Modicon M221,M241,M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply,45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC,input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262,Modicon M241,Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15,top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221,M241 and M251 logic controllers.

Specifications:

Main
Range of product	Modicon TM3
Product or component type	Analog input module
Range compatibility	Modicon M221
	Modicon M241
	Modicon M251
	Modicon M262
Analogue input number	8
Analogue input type	thermocouple - 200...1000 °C with thermocouple J
	thermocouple - 200...1300 °C with thermocouple K
	thermocouple 0...1760 °C with thermocouple R
	thermocouple 0...1760 °C with thermocouple S
	thermocouple 0...1820 °C with thermocouple B
	thermocouple - 200...400 °C with thermocouple T
	thermocouple - 200...1300 °C with thermocouple N
	thermocouple - 200...800 °C with thermocouple E
	thermocouple 0...2315 °C with thermocouple C
	NTC 10k thermistor -90...150 °C
	PTC thermistor 100...10000 Ohm
	thermocouple - 200...1000 °C
Complementary
Analogue input resolution	16 bits
	15 bits + sign
Input impedance	>= 1 MOhm thermocouple
	>= 1 MOhm temperature probe
	>= 1 MOhm thermistor
LSB value	0.1 °Cthermocouple
	0.1 °C with NTC probe
	1 Ohm with PTC/NTC probe
Conversion time	100 ms + 100 ms per channel + 1 controller cycle time
Sampling duration	100 ms
Absolute accuracy error	+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C
	+/- 6 °C at 25 °C for thermocouple R, S 0...200 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C
	+/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C
	+/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C
	+/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C
	+/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C
	+/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C
	+/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Temperature drift	+/- 0.01 %FS/°C
Repeat accuracy	+/-0.5 %FS
Non-linearity	+/- 0.2 %FS
Cross talk	<= 1 LSB
[Us] rated supply voltage	24 V DC
Supply voltage limits	20.4…28.8 V
Type of cable	Twisted shielded pairs cable <30 m for input circuit
Current consumption	30 mA at 24 V DC via external supply
	45 mA at 5 V DC via bus connector
	40 mA at 5 V DC via bus connector
Local signalling	1 LED (green) for PWR
Electrical connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Insulation	Between input and supply at 1500 V AC
	Between input and internal logic at 500 V AC
Marking	CE
Surge withstand	1 kV power supply common mode conforming to IEC 61000-4-5
	0.5 kV power supply differential mode conforming to IEC 61000-4-5
	1 kV input common mode conforming to IEC 61000-4-5
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715
	Top hat type TH35-7.5 rail conforming to IEC 60715
	plate or panel with fixing kit
Height	90 mm
Depth	70 mm
Width	23.6 mm
Net weight	0.11 kg
Environment
Standards	IEC 61131-2
Product certifications	CE
	UKCA
	RCM
	EAC
	cULus
	cULus HazLoc
Resistance to electrostatic discharge	8 kV in air conforming to IEC 61000-4-2
	4 kV on contact conforming to IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
	3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
	1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to magnetic fields	30 A/m conforming to IEC 61000-4-8
Resistance to fast transients	1 kV (I/O) conforming to IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to IEC 61000-4-6
	3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011
	Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
Immunity to microbreaks	10 ms
Ambient air temperature for operation	-10…55 °C horizontal installation
	-10…35 °C vertical installation
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 %, without condensation (in operation)
	10…95 %, without condensation (in storage)
IP degree of protection	IP20
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0…3000 m
Vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail
	3 gn at 8.4…150 Hz on DIN rail
Shock resistance	15 gn for 11 ms

Weight	3.000000
Brand	Schneider Electric
Model	TM3TI8T
Range	M2xx Access.
Family	IDMST

Schneider Electric Module TM3 - 8 inputs temperature
