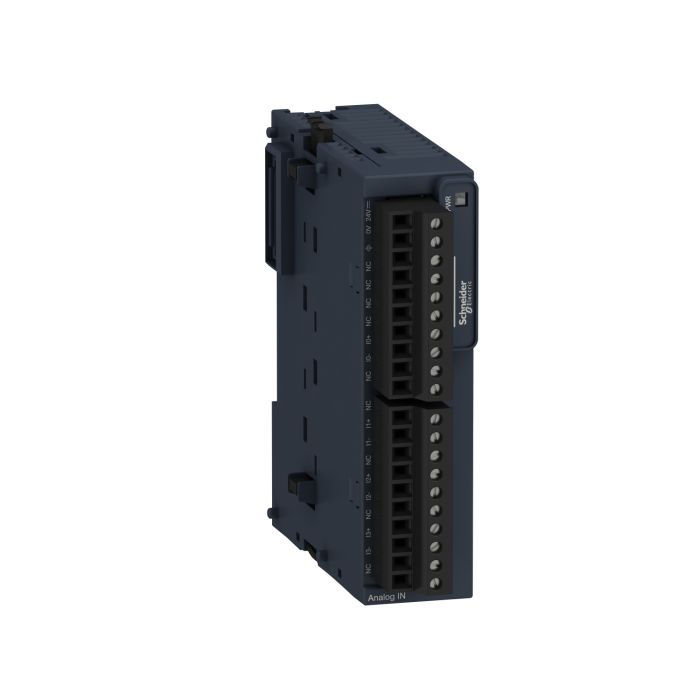

Schneider Electric Modicon TM3 4 Analog Inputs Module, Screw Terminal, 24VDC
Range of product: Modicon TM3
Product type: Analog input module
Analogue input number: 4
Local signalling: 1 LED (green) for PWR
The Schneider Electric TM3AI4 Modicon TM3 module is designed for precise and reliable analog input data acquisition. With four analog input channels and screw terminals, this module is ideal for integrating analog signals into your control system. It operates on a 24VDC power supply, making it suitable for various industrial applications.
Key Features:
Analog Inputs: Four analog input channels allow you to connect sensors and devices that provide analog signals, such as temperature, pressure, and more.
Screw Terminals: The module features screw terminals for secure and convenient wiring connections.
24VDC Power Supply: Compatible with a 24VDC power supply commonly used in industrial settings.
Modicon TM3 Series: Part of the Modicon TM3 series, offering scalability and flexibility in your control system.
Product Specifications:
Input Channels: 4 Analog Inputs
Power Supply: 24VDC
Specifications
| Main | |
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| range compatibility | Modicon M221 |
| Modicon M241 | |
| Modicon M251 | |
| Modicon M262 | |
| analogue input number | 4 |
| Analogue input type | Current 4...20 mA |
| current 0...20 mA | |
| voltage 0...10 V | |
| voltage - 10...10 V | |
| Complementary | |
| Analogue input resolution | 12 bits |
| 11 bits + sign | |
| Permissible continuous overload | 13 V, analogue input type: voltage |
| 40 mA, analogue input type: current | |
| Input impedance | <= 50 Ohm current |
| >= 1 MOhm voltage | |
| LSB value | 2.44 mV 0...10 Vvoltage |
| 4.88 mV - 10...10 Vvoltage | |
| 4.88 µA 0...20 mAcurrent | |
| 3.91 µA 4...20 mAcurrent | |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C |
| +/- 1 % of full scale | |
| Temperature drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Current consumption | 35 mA at 5 V DC via bus connector no load |
| 45 mA at 5 V DC via bus connector full load | |
| 30 mA at 24 V DC via external supply | |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply |
| 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs | |
| Insulation | Between input and supply at 1500 V AC |
| Between input and internal logic at 500 V AC | |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode conforming to EN/IEC 61000-4-5 |
| 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 | |
| 1 kV input common mode conforming to EN/IEC 61000-4-5 | |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| plate or panel with fixing kit | |
| height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| Net weight | 0.11 kg |
| Environment | |
| standards | EN/IEC 61131-2 |
| product certifications | CE |
| UKCA | |
| RCM | |
| EAC | |
| cULus | |
| cULus HazLoc | |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 |
| 4 kV on contact conforming to EN/IEC 61000-4-2 | |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | |
| 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 | |
| Resistance to magnetic fields | 30 A/m conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) | |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 |
| Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 | |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | -10…55 °C horizontal installation |
| -10…35 °C vertical installation | |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail |
| 3 gn at 8.4…150 Hz on DIN rail | |
| Shock resistance | 15 gn for 11 ms |
| Weight | 0.110000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM3AI4 |
| Width [cm] | 9 |
| Height [cm] | 7 |
| Range | M2xx Access. |
| Family | IDMST |
