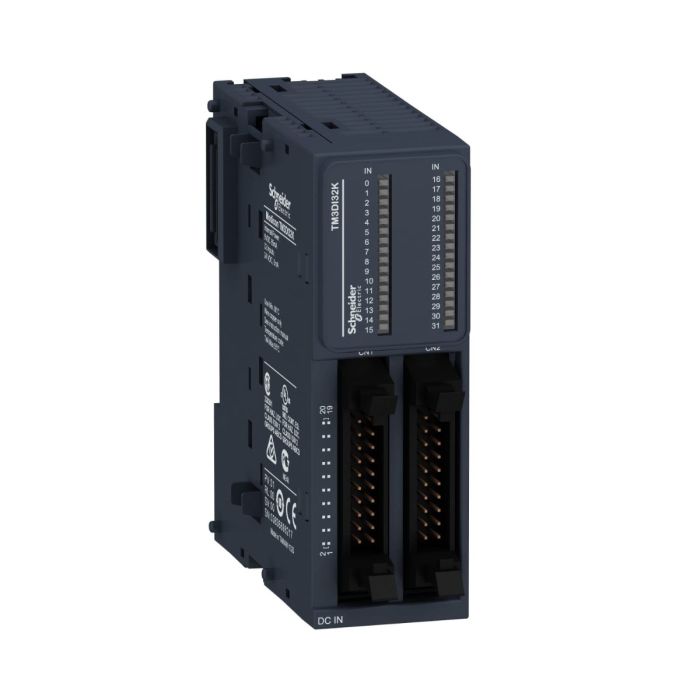

Schneider Electric Modicon TM3 32 Digital Inputs Module, HE10 Connector, 24VDC

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 32 logic inputs and it is supplied with 24V dc. It is equipped with one removable HE10 connector and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers.

Specifications:

Main
Range of product	Modicon TM3
Product or component type	Discrete input module
range compatibility	Modicon M241
	Modicon M251
	Modicon M221
	Modicon M262
Discrete input number	32 for input conforming to IEC 61131-2 Type 1
Discrete input logic	Sink or source (positive/negative)
Discrete input voltage	24 V
Discrete input current	5 mA for input
Complementary
Discrete I/O number	32
Current consumption	5 mA at 5 V DC via bus connector (at state off)
	0 mA at 24 V DC via bus connector (at state on)
	0 mA at 24 V DC via bus connector (at state off)
	65 mA at 5 V DC via bus connector (at state on)
discrete input voltage type	DC
Voltage state 1 guaranteed	15...28.8 V for input
Current state 1 guaranteed	>= 2.5 mA (input)
Voltage state 0 guaranteed	0...5 V for input
Current state 0 guaranteed	<= 1 mA (input)
Input impedance	4.4 kOhm
Response time	4 ms (turn-on)
	4 ms (turn-off)
Local signalling	1 LED per channel (green) for input status
Electrical connection	HE-10 connectorfor inputs
Maximum cable distance between devices	Unshielded cable: <30 m for regular input
Insulation	Between input and internal logic at 500 V AC
	Non-insulated between inputs
Marking	CE
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715
	Top hat type TH35-7.5 rail conforming to IEC 60715
	plate or panel with fixing kit
height	90 mm
Depth	81.3 mm
Width	33.5 mm
Net weight	0.1 kg
Environment
standards	EN/IEC 61131-2
product certifications	cULus
	CE
	UKCA
	RCM
	EAC
	cULus HazLoc
Resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2
	4 kV on contact conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
	3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
	1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
Resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
Resistance to fast transients	1 kV for I/O conforming to EN/IEC 61000-4-4
Surge withstand	1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
	3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
	Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
Ambient air temperature for operation	-10…35 °C vertical installation
	-10…55 °C horizontal installation
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 %, without condensation (in operation)
	10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0…3000 m
Vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail
	3 gn at 8.4…150 Hz on DIN rail
	3.5 mm at 5…8.4 Hz on panel
	3 gn at 8.4…150 Hz on panel
Shock resistance	15 gn for 11 ms
