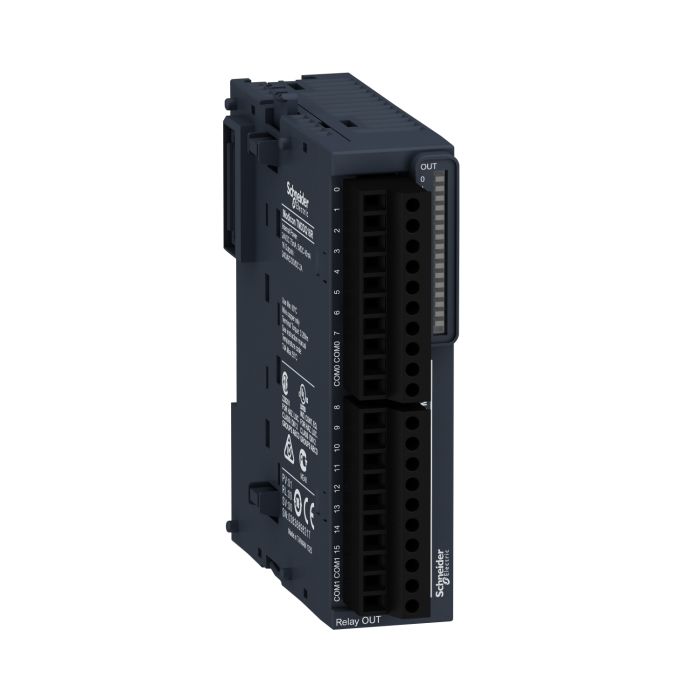

Schneider Electric Modicon TM3 16-Relay Output Module, Screw Clamp, 24V DC
Range of product: Modicon TM3
Product type: Discrete output module
Discrete output type: Relay normally open
Local signalling: 1 LED per channel (green) for output status
The Schneider Electric TM3DQ16R, part of the Modicon TM3 series, is a versatile multi-purpose output module that provides easy and efficient control over your devices and systems. This module features 16 relay outputs to execute various control functions. You can configure these relays according to your application needs to control electrical circuits at 24V DC. Secure and reliable connections are ensured through the screw clamp terminals.
Key Features:
16 Relay Outputs: The output module features 16 relay outputs to handle multiple control tasks.
Screw Clamp Terminals: Screw clamp terminals ensure secure and reliable connections with the module.
24V DC Voltage: Efficiently operates with a 24V DC power source, commonly used in industrial environments.
Modicon TM3 Series: Belongs to the robust and reliable Modicon TM3 series.
Technical Specifications:
Number of Relays: 16 relay outputs
Power Supply Voltage: 24V DC
Specifications
| Main | |
| Range of product | Modicon TM3 |
| Product or component type | Discrete output module |
| range compatibility | Modicon M241 |
| Modicon M251 | |
| Modicon M221 | |
| Modicon M262 | |
| Discrete output type | Relay normally open |
| Discrete output number | 16 |
| discrete output logic | Positive or negative |
| Discrete output voltage | 240 V AC for relay output |
| 30 V DC for relay output | |
| Discrete output current | 2000 mA for relay output |
| Complementary | |
| Discrete I/O number | 16 |
| Current consumption | 0 mA at 24 V DC via bus connector (at state off) |
| 75 mA at 24 V DC via bus connector (at state on) | |
| Response time | 10 ms (turn-on) |
| 5 ms (turn-off) | |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA at 5 V DC for relay output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for relay output |
| Insulation | Between output and internal logic at 2300 V AC |
| Between outputs at 750 V AC | |
| Between output groups at 1500 V AC | |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| plate or panel with fixing kit | |
| height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.145 kg |
| Environment | |
| standards | EN/IEC 61131-2 |
| product certifications | cULus |
| CE | |
| UKCA | |
| RCM | |
| EAC | |
| cULus HazLoc | |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 |
| 4 kV on contact conforming to EN/IEC 61000-4-2 | |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | |
| 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 | |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 2 kV for relay output conforming to EN/IEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) | |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 |
| Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 | |
| Ambient air temperature for operation | -10…35 °C vertical installation |
| -10…55 °C horizontal installation | |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail |
| 3 gn at 8.4…150 Hz on DIN rail | |
| 3.5 mm at 5…8.4 Hz on panel | |
| 3 gn at 8.4…150 Hz on panel | |
| Shock resistance | 15 gn for 11 ms |
| Weight | 0.145000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM3DQ16R |
| Width [cm] | 8.46 |
| Height [cm] | 9 |
| Range | M2xx Access. |
| Family | IDMST |
