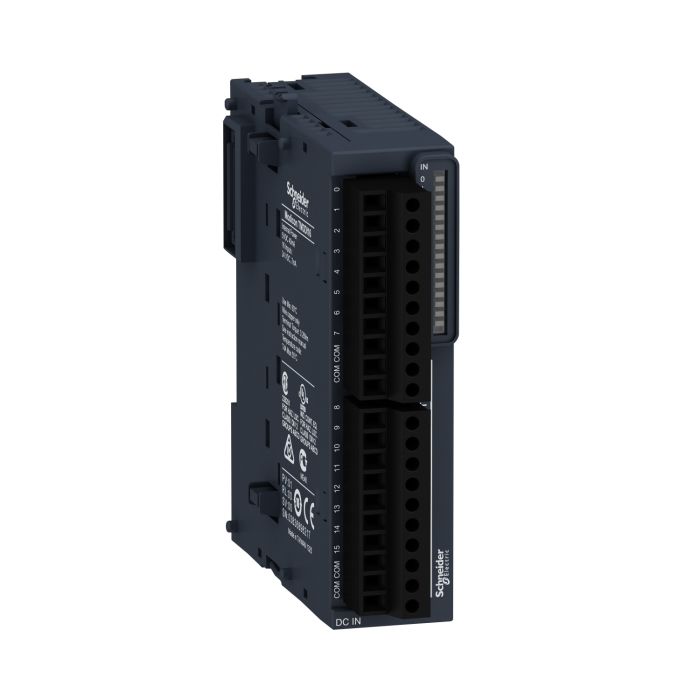

Schneider Electric Modicon TM3 16-Input Module, Screw Clamp, 24V DC
Range of product: Modicon TM3
Product type: Discrete output module
Discrete input number: 16 for input conforming to IEC 61131-2 type 3
Local signalling: 1 LED per channel (green) for input status
The Schneider Electric TM3DI16, a member of the Modicon TM3 series, is an efficient 16-input module designed to enhance your control system's capabilities. This module allows you to monitor and process 16 discrete input signals for your industrial applications. Featuring screw clamp terminals, the TM3DI16 ensures secure and reliable connections while operating with a 24V DC voltage source.
Key Features:
16 Discrete Inputs: The module provides 16 discrete inputs for versatile monitoring and control.
Screw Clamp Terminals: Secure and reliable connections are established using the screw clamp terminals.
24V DC Voltage: Compatible with a 24V DC power source, commonly used in industrial settings.
Modicon TM3 Series: Part of the reliable and robust Modicon TM3 series.
Technical Specifications:
Number of Inputs: 16 discrete inputs
Power Supply Voltage: 24V DC
Specifications
| Main | |
| Range of product | Modicon TM3 |
| Product or component type | Discrete input module |
| range compatibility | Modicon M241 |
| Modicon M251 | |
| Modicon M221 | |
| Modicon M262 | |
| Discrete input number | 16 for input conforming to IEC 61131-2 type 3 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Complementary | |
| Discrete I/O number | 16 |
| Current consumption | 40 mA at 5 V DC via bus connector (at state on) |
| 5 mA at 5 V DC via bus connector (at state off) | |
| 0 mA at 24 V DC via bus connector (at state on) | |
| 0 mA at 24 V DC via bus connector (at state off) | |
| discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Current state 0 guaranteed | <= 1 mA (input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) |
| 4 ms (turn-off) | |
| Local signalling | 1 LED per channel (green) for input status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <50 m for regular input |
| Insulation | Between input and internal logic at 500 V AC |
| Non-insulated between inputs | |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| plate or panel with fixing kit | |
| height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.1 kg |
| Environment | |
| standards | EN/IEC 61131-2 |
| product certifications | CE |
| cULus | |
| UKCA | |
| RCM | |
| EAC | |
| cULus HazLoc | |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 |
| 4 kV on contact conforming to EN/IEC 61000-4-2 | |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | |
| 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 | |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) | |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 |
| Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 | |
| Ambient air temperature for operation | -10…35 °C vertical installation |
| -10…55 °C horizontal installation | |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail |
| 3 gn at 8.4…150 Hz on DIN rail | |
| 3.5 mm at 5…8.4 Hz on panel | |
| 3 gn at 8.4…150 Hz on panel | |
| Shock resistance | 15 gn for 11 ms |
| Weight | 0.100000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM3DI16 |
| Width [cm] | 8.46 |
| Height [cm] | 9 |
| Range | M2xx Access. |
| Family | IDMST |
