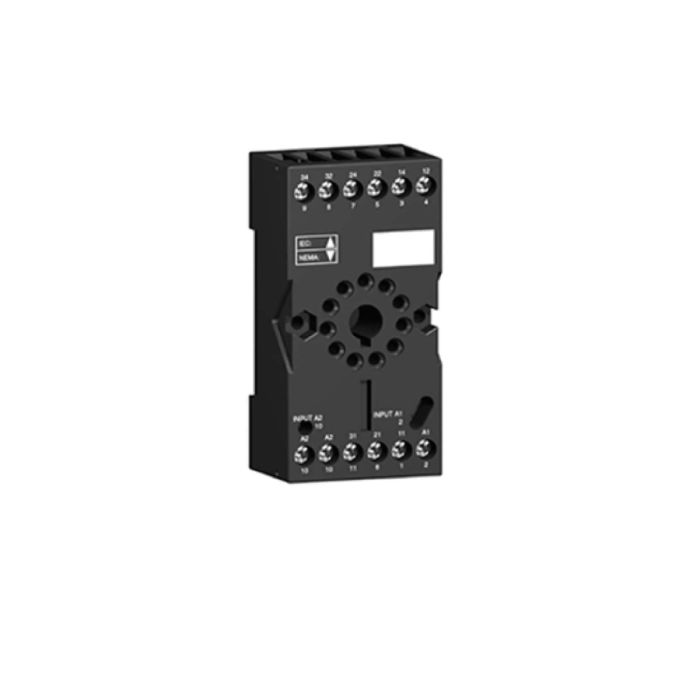

Schneider Electric Mixed Contact Socket for RXM2 Relay
Range of product: Harmony Electromechanical Relays
Product type: Socket
compatibility: Plug-in relay RUM with 3 C/O contact, Plug-in relay RE48A with 2 C/O contact
The Schneider Electric RUZC3M is a mixed contact socket designed for use with RXM2 type relays. This socket is used to securely connect the relay and facilitate the wiring and maintenance of the electrical circuit. It is compatible with 10 A relays and features a screw connector. The RUZC3M socket is designed for use in 250 V applications and is an essential component for relay-based electrical systems.
Key Features:
Socket for RXM2 Relay: Designed to accommodate RXM2 type relays.
Secure Connection: Ensures a secure and reliable connection for the relay.
Easy Wiring: Simplifies the wiring process, making installation and maintenance convenient.
Mixed Contact: Provides a versatile socket with mixed contact types.
Screw Connector: Features a screw-type connector for connecting wires.
Voltage Rating: Suitable for use in 250 V applications.
| Specifications | |
Main | |
| Range of product | Harmony Electromechanical Relays |
| Harmony Timer Relays | |
| Product or component type | Socket |
| contact terminal arrangement | Mixed |
| Product compatibility | Plug-in relay RUM with 3 C/O contact |
| Plug-in relay RE48A with 2 C/O contact | |
| Shape of pin | Cylindrical |
| Device short name | RUZ |
| Sale per indivisible quantity | 1000% |
| Complementary | |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Ue] rated operational voltage | < 250 V |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Fixing mode | By screw (panel) |
| Clip-on (35 mm symmetrical DIN rail) | |
| Marking | CE |
| Width | 38 mm |
| Net weight | 0.054 kg |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Environment | |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | |
| Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | |
| standards | IEC 61984 |
| product certifications | CSA |
| UL | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V |
| Weight | 0.054000 |
|---|---|
| Brand | Schneider Electric |
| Model | RUZC3M |
| Width [cm] | 3.8 |
| Range | Zelio Relays - RUM |
| Family | IDSIG |
