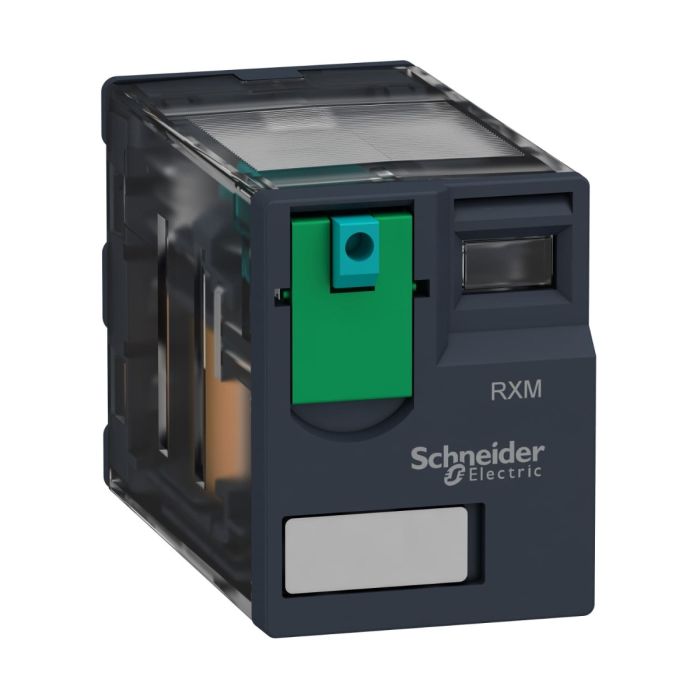

Schneider Electric Miniature Plug-In Relay, 4PDT, 6A, 24V DC
Range of product: Harmony Electromechanical Relays
Product type: Plug-in relay
Contacts type and composition: 4 C/O
Shape of pin: Flat
The Schneider Electric RXM4AB1BD is a versatile miniature plug-in relay designed to meet various control and switching needs. It features four sets of double throw (4PDT) contacts, making it suitable for applications where multiple circuits need to be controlled simultaneously. With a 6A current rating and 24V DC coil voltage, this relay is well-suited for industrial and commercial applications.
Key Features:
4PDT Contacts: This relay offers four sets of double throw contacts, providing flexibility for controlling multiple circuits.
Miniature Design: The compact design allows for efficient use of space in control panels and equipment.
6A Current Rating: With a 6A current rating, it can handle moderate electrical loads.
24V DC Coil Voltage: The 24V DC coil voltage makes it compatible with standard DC control systems.
Plug-In Mounting: Easy plug-in installation for quick setup and maintenance.
Technical Specifications:
Contact Configuration: 4PDT (Four sets of double throw)
Current Rating: 6A
Coil Voltage: 24V DC
| Specifications | |
Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 24 V DC |
| Status LED | Without |
| control type | Lockable test button |
| Utilisation coefficient | 20% |
| Complementary | |
| Shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC |
| 3 A at 250 V (AC) NC conforming to IEC | |
| 6 A at 28 V (DC) NO conforming to IEC | |
| 6 A at 250 V (AC) NO conforming to IEC | |
| 6 A at 277 V (AC) conforming to UL | |
| 8 A at 30 V (DC) conforming to UL | |
| Continuous output current | 5:00 AM |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 6 A at 250 V AC |
| 6 A at 28 V DC | |
| Maximum switching capacity | 1500 VA/168 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption | 0.9 W |
| Drop-out voltage threshold | >= 0.1 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 650 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits | 19.2...26.4 V DC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| Net weight | 0.037 kg |
| Device presentation | Complete product |
| Environment | |
| Dielectric strength | 1300 V AC between contacts with micro disconnection |
| 2000 V AC between coil and contact with basic insulation | |
| 2000 V AC between poles with basic insulation | |
| product certifications | UL |
| CE | |
| GOST | |
| CSA | |
| Lloyd's | |
| standards | UL 508 |
| IEC 61810-1 | |
| CSA C22.2 No 14 | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation |
| 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn for in operation |
| 30 gn for not operating | |
| Pollution degree | 2 |
| Weight | 0.037000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXM4AB1BD |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
