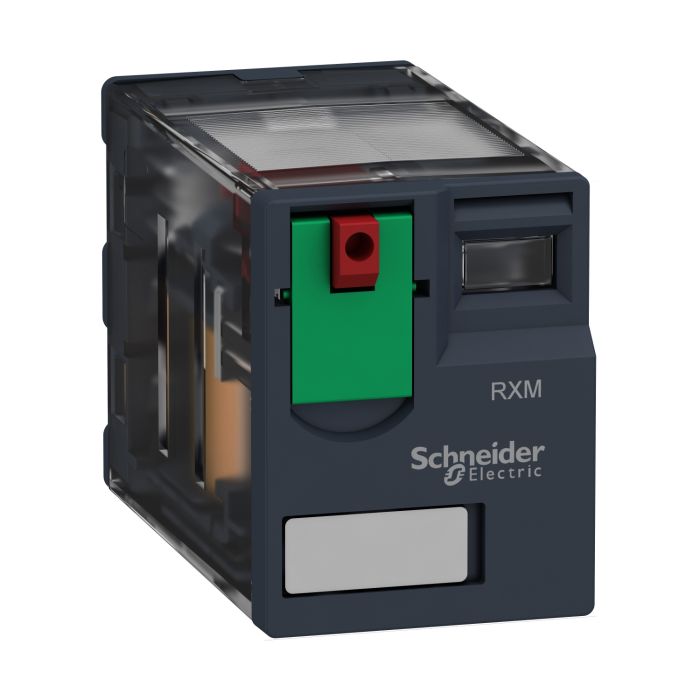

Schneider Electric Miniature Plug-In Relay, 4PDT, 6A, 24V AC
Range of product: Harmony Electromechanical Relays
Product type: Plug-in relay
Contacts type and composition: 4 C/O
Shape of pin: Flat
The RXM4AB1B7 relay from Schneider Electric is a versatile miniature plug-in relay designed to meet various control and switching requirements. It features four double-pole, double-throw (4PDT) contacts, making it suitable for applications that require simultaneous control of multiple circuits. With a current rating of 6A and a 24V AC coil voltage, this relay is well-suited for industrial and commercial applications.
Key Features:
4PDT Contacts: This relay provides four pairs of double-pole, double-throw contacts, offering flexibility in controlling multiple circuits.
Miniature Design: The compact design allows for efficient use of space in control panels and equipment.
6A Current Rating: With a 6A current rating, it can handle moderate electrical loads.
24V AC Coil Voltage: The 24V AC coil voltage makes it compatible with standard alternating current control systems.
Plug-In Installation: Easy installation facilitates quick setup and maintenance.
Technical Specifications:
Contact Configuration: 4PDT (Four double-pole, double-throw contacts)
Current Rating: 6A
Coil Voltage: 24V AC
Specifications
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| device short name | RXM |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Status LED | Without |
| control type | Lockable test button |
| Utilisation coefficient | 20% |
| Complementary | |
| Shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC |
| 3 A at 250 V (AC) NC conforming to IEC | |
| 6 A at 28 V (DC) NO conforming to IEC | |
| 6 A at 250 V (AC) NO conforming to IEC | |
| 6 A at 277 V (AC) conforming to UL | |
| 8 A at 30 V (DC) conforming to UL | |
| Continuous output current | 05:00 ص |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 6 A at 250 V AC |
| 6 A at 28 V DC | |
| Maximum switching capacity | 1500 VA/168 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption in VA | 1.2 at 60 Hz |
| Average consumption | 1.2 VA at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 180 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 19.2...26.4 V AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| Net weight | 0.037 kg |
| Device presentation | Complete product |
| Environment | |
| Dielectric strength | 1300 V AC between contacts with micro disconnection |
| 2000 V AC between coil and contact with basic insulation | |
| 2000 V AC between poles with basic insulation | |
| product certifications | CSA |
| Lloyd's | |
| CE | |
| UL | |
| GOST | |
| standards | CSA C22.2 No 14 |
| UL 508 | |
| IEC 61810-1 | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation |
| 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn for in operation |
| 30 gn for not operating | |
| Pollution degree | 2 |
| Weight | 0.037000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXM4AB1B7 |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
