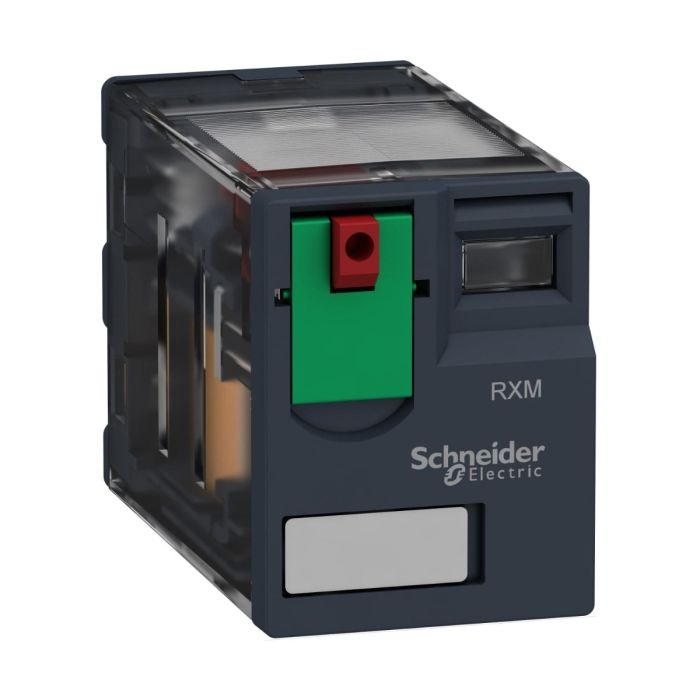

Schneider Electric Miniature plug-in relay,12 A,2 CO,24 V AC
Product or component type: Plug-in relay
Control type: Lockable test button
Shape of pin: Flat
The Schneider Electric RXM2AB1B7 is a high-quality miniature plug-in relay designed for a variety of applications. With a 12A rated current and two changeover (CO) contacts, this relay offers versatile control and switching capabilities. It features a lockable test button for convenience and safety. The relay operates with a 24V AC coil, making it suitable for a wide range of control and automation systems.
Key Features:
Versatile Relay: The RXM2AB1B7 is suitable for a wide range of control and automation applications.
Double Changeover Contacts: With 2 CO contacts, it provides flexible control options.
Lockable Test Button: The relay's test button can be locked for safe and easy testing.
Low Voltage Operation: Designed to work with a 24V AC coil, making it suitable for various systems.
Product Specifications:
Rated Current: 12A
Contacts: 2 CO (Changeover)
Coil Voltage: 24V AC
Enhance your control systems and applications with the Schneider Electric RXM2AB1B7 Miniature Plug-In Relay.
| Specifications | |
Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Status LED | Without |
| control type | Lockable test button |
| Utilisation coefficient | 20% |
| Complementary | |
| Shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 12 A at 28 V (DC) NO conforming to IEC |
| 12 A at 250 V (AC) NO conforming to IEC | |
| 6 A at 28 V (DC) NC conforming to IEC | |
| 6 A at 250 V (AC) NC conforming to IEC | |
| 12 A at 28 V (DC) conforming to UL | |
| 12 A at 277 V (AC) conforming to UL | |
| Continuous output current | 10:00 AM |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 12 A at 250 V AC |
| 12 A at 28 V DC | |
| Maximum switching capacity | 3000 VA/336 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption in VA | 1.2 at 60 Hz |
| Average consumption | 1.2 VA at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 180 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 19.2...26.4 V AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| Net weight | 0.037 kg |
| Device presentation | Complete product |
| Environment | |
| Dielectric strength | 1300 V AC between contacts with micro disconnection |
| 2000 V AC between coil and contact with basic insulation | |
| 2000 V AC between poles with basic insulation | |
| product certifications | UL |
| Lloyd's | |
| CE | |
| CSA | |
| GOST | |
| standards | IEC 61810-1 |
| CSA C22.2 No 14 | |
| UL 508 | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation |
| 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn for in operation |
| 30 gn for not operating | |
| Pollution degree | 3 |
| Weight | 0.037000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXM2AB1B7 |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
