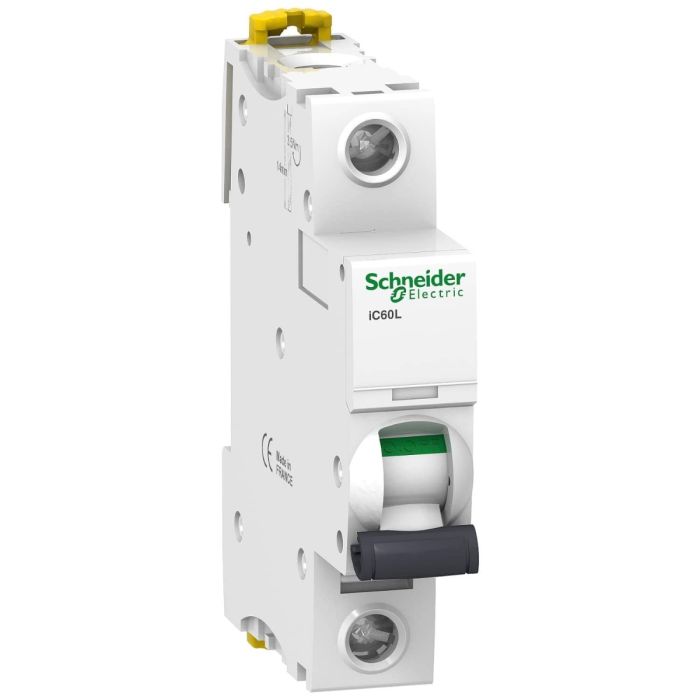

Schneider Electric Acti9 IC60L Miniature Circuit Breaker (MCB), 1P, 63A, C Curve, 15kA, IEC/EN 60947-2
In stock
SKU
A9F94163
Special Price EGP 1,028 Regular Price EGP 1,569
Schneider Electric Acti9 IC60L Miniature Circuit Breaker (MCB), 1P, 63A, C Curve, 15kA, IEC/EN 60947-2 is available to buy in increments of 1
Quick Overview
Range: Acti9
Product type: Miniature circuit-breaker
Device application: Distribution
Poles description: 1P
You May Also Like:
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 16 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 32 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 25 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 20 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 40 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker, 1P, 10 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Overvoltage release, Acti9, iMSU, voltage release, 230 V AC (A9A26500)Special Price EGP 1,185 Regular Price EGP 6,326
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 63 A, C curveSpecial Price EGP 419 Regular Price EGP 581
Schneider Electric Acti9 iC60N 63 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 440 Regular Price EGP 672
Schneider Electric Acti9 IK60N Miniature Circuit Breaker 1P, 50A, C CurveSpecial Price EGP 419 Regular Price EGP 581
Acti9 iK60N Miniature Circuit Breaker 3P, 40 A, C curve (A9K24340)Special Price EGP 1,402 Regular Price EGP 1,947
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N 32 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 2P, 63 A, C curveSpecial Price EGP 866 Regular Price EGP 1,202
Schneider Electric Acti9 iC60N 20 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 iC60N 40 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 3P, 63 A, C curveSpecial Price EGP 1,948 Regular Price EGP 2,974
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 1P, 25 A, 10 kA, C curveSpecial Price EGP 316 Regular Price EGP 485
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 3P, 63 A, C curveSpecial Price EGP 1,635 Regular Price EGP 2,271
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
This Acti9 iC60L is a low voltage miniature circuit breaker (MCB). It has 1P with 1 protected pole, rated current 63A and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard. It complies with industrial standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. It is DIN rail mountable. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Specifications:
| Main | |
| Device application | Distribution |
| Range | Acti9 |
| product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60L |
| Poles description | 1P |
| Number of protected poles | ١ |
| [In] rated current | 63 A |
| Network type | DC |
| AC | |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| 15 kA Icu at 72 V DC conforming to EN/IEC 60947-2 | |
| 25 kA Icu at 12...48 V DC conforming to EN/IEC 60947-2 | |
| Utilisation category | Category A conforming to EN 60947-2 |
| Category A conforming to IEC 60947-2 | |
| Suitability for isolation | Yes conforming to EN 60947-2 |
| Yes conforming to IEC 60947-2 | |
| Standards | EN 60947-2 |
| IEC 60947-2 | |
| Complementary | |
| Network frequency | 50/60 Hz |
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 7.5 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz |
| 7.5 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz | |
| 35 kA 50 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz | |
| 35 kA 50 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz | |
| 15 kA 50 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz | |
| 15 kA 50 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz | |
| 20 kA 100 % conforming to EN 60947-2 - 72 V DC | |
| 20 kA 100 % conforming to IEC 60947-2 - 72 V DC | |
| 25 kA 100 % conforming to EN 60947-2 - 12...60 V DC | |
| 25 kA 100 % conforming to IEC 60947-2 - 12...60 V DC | |
| Limitation class | ٣ |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 |
| 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 |
| 6 kV conforming to IEC 60947-2 | |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | Trip indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Single terminal (top or bottom) 1…35 mm² rigid |
| Single terminal (top or bottom) 1…25 mm² flexible | |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IP20 conforming to EN 60529 | |
| Pollution degree | 3 conforming to EN 60947-2 |
| 3 conforming to IEC 60947-2 | |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Weight | 0.215000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9F94163 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.85 |
| Width [cm] | 1.8 |
| Height [cm] | 8.5 |
| Range | Acti9 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 1P |
| [In] Rated Current | 63 A |
| IP Degree of Protection | IP20 |
