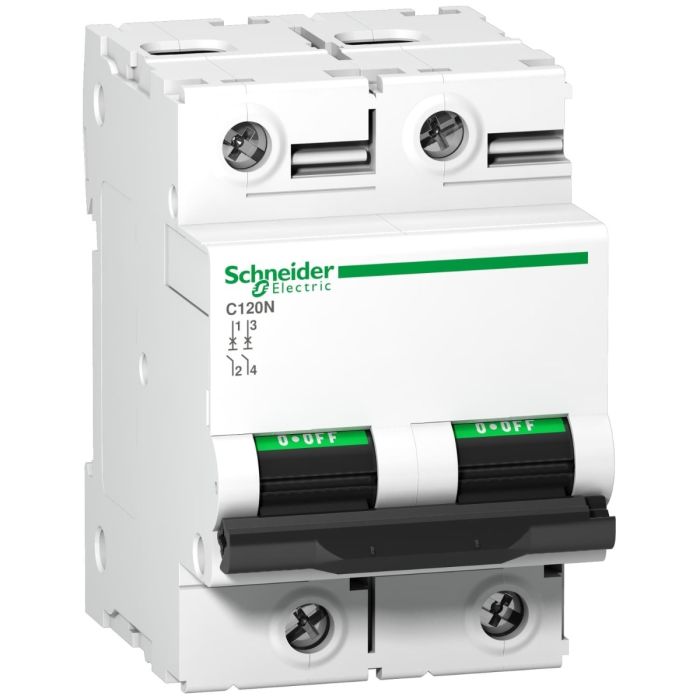

Schneider Electric Miniature Circuit Breaker, Acti9 C120N, 2P, 125 A, C Curve, 10,000 A, IEC 60898-1, 10 kA, IEC 60947-2

Out of stock
SKU
A9N18363
Special Price EGP 3,903 Regular Price EGP 5,959
Quick Overview

Product or component type: Miniature circuit-breaker
Numbers of poles: 2P
Mounting mode: Clip-on

The Schneider Electric A9N18363 Miniature Circuit Breaker is part of the Acti9 C120N series and is designed to provide reliable circuit protection in a wide range of electrical installations. This 2-pole circuit breaker features a current rating of 125 A and is equipped with a C curve characteristic, suitable for applications requiring medium levels of protection. It complies with international standards IEC 60898-1 and IEC 60947-2, ensuring safety and quality.



Key Features:

Reliable Protection: The A9N18363 circuit breaker offers protection against overcurrents and short circuits, enhancing the safety of your electrical circuits.

High Current Rating: With a 125 A current rating, it can handle a variety of electrical loads.

C Curve Characteristic: This circuit breaker is designed with a C curve, making it ideal for applications that require moderate protection.

Compliance with Standards: It adheres to international standards IEC 60898-1 and IEC 60947-2, ensuring its quality and reliability.

Durable Construction: Built to withstand the rigors of electrical environments and maintain its performance over time.



Product Specifications:

Series: Acti9 C120N

Number of Poles: 2

Current Rating: 125 A

Characteristic: C Curve

Short-Circuit Breaking Capacity: 10,000 A

Standards: IEC 60898-1, IEC 60947-2

Rated Breaking Capacity: 10 kA







Enhance the safety and reliability of your electrical circuits with the Schneider Electric A9N18363 Miniature Circuit Breaker.



Specifications:

Main


Range of productC120
RangeActi9
Product nameC120
Product or component typeMiniature circuit-breaker
Device short nameC120N
Device applicationDistribution
Poles description2P
Number of protected poles2
Neutral positionLeft
[In] rated current125 A at 30 °C
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacity10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
 10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2
 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Suitability for isolationYes conforming to IEC 60947-2
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage380...415 V AC 50/60 Hz
 220...240 V AC 50/60 Hz
 440 V AC 50/60 Hz
 <= 250 V DC
 230...400 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
[Ics] rated service breaking capacity7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
 10 kA 100 % conforming to EN/IEC 60947-2 - <= 250 V DC
Limitation class3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
Contact position indicatorYes
control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
mounting support35 mm symmetrical DIN rail
Comb busbar and distribution block compatibilityYES
9 mm pitches6
height81 mm
Width54 mm
Depth73 mm
Net weight0.41 kg
ColourWhite
Mechanical durability20000 cycles
Electrical durability5000 cycles conforming to IEC 60947-2
Locking options descriptionHandle sealable with cable diameter 0.7mm in OFF or ON position
Connections - terminalsTunnel type terminals1…50 mm² rigid
 Tunnel type terminals1.5…35 mm² flexible
Wire stripping length15 mm
Tightening torque3.5 N.m
earth-leakage protectionSeparate block
Environment
standardsEN/IEC 60947-2
 EN/IEC 60898-1
product certificationsEAC
IP degree of protectionIP20 conforming to IEC 60529
Pollution degree3 conforming to IEC 60947-2
Overvoltage categoryIV
Tropicalisation2 conforming to IEC 60068-1
Relative humidity95 % at 55 °C
Operating altitude2000 m
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…85 °C
More Information
Weight0.410000
BrandSchneider Electric
ModelA9N18363
ColorWhite
Device ApplicationDistribution
Depth [cm]7.3
Width [cm]5.4
Height [cm]8.1
RangeActi9
TypeMiniature circuit-breaker
Poles2P
[In] Rated Current125 A at 30 °C
