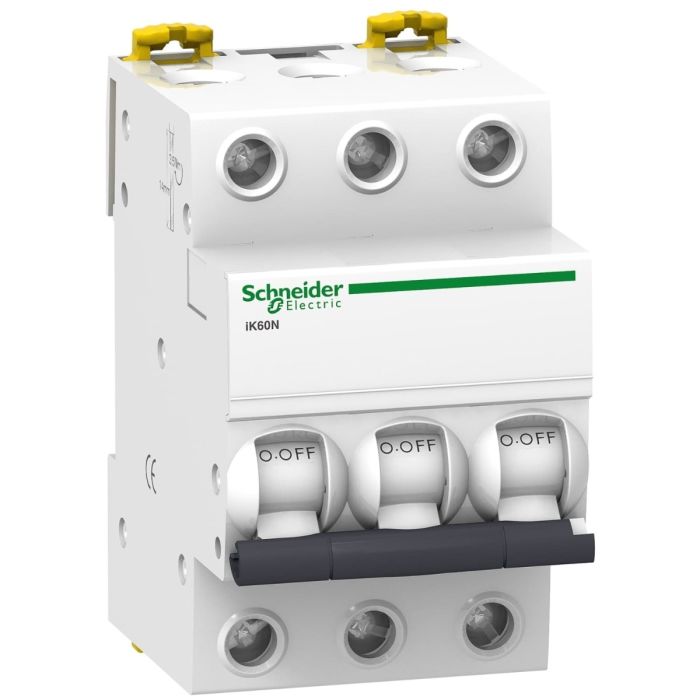

Schneider Electric Acti9 iK60N Miniature Circuit Breaker 3P, 63 A, C curve
In stock
SKU
A9K24363
Special Price EGP 1,635 Regular Price EGP 2,271
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 3P, 63 A, C curve is available to buy in increments of 1
Quick Overview
Range: Acti9
Product type: Miniature circuit-breaker
Device application: Distribution
Poles description: 3P
You May Also Like
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 16 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 32 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Resi9 Miniature Circuit Breaker (MCB), 1P, 16A, C curve, 4500ASpecial Price EGP 161 Regular Price EGP 264
Schneider Electric Resi9 Miniature Circuit Breaker (MCB), 1P, 32A, C curve, 4500ASpecial Price EGP 161 Regular Price EGP 264
Schneider Electric, Acti9 Disbo 18way 125A Panel + 19 Resi9 MCBsSpecial Price EGP 7,500 Regular Price EGP 15,999
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 25 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 20 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Resi9 Miniature Circuit Breaker (MCB), 1P, 25A, C curve, 4500ASpecial Price EGP 161 Regular Price EGP 264
Schneider Electric Resi9 Miniature Circuit Breaker (MCB), 1P, 20A, C curve, 4500ASpecial Price EGP 161 Regular Price EGP 264
Acti9 Disbo 18-way Panel Bundle + 19 MCB iK60, 6 KVASpecial Price EGP 6,099 Regular Price EGP 11,999
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 40 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker, 1P, 10 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Relay Socket - 8-Pin Octal Base, Screw Terminals, Schneider ElectricSpecial Price EGP 125 Regular Price EGP 216
Schneider Electric Trailing lead, Unica extend, 3 Schuko, Switchable, USB type A+A, 1.5m Cable, AnthraciteSpecial Price EGP 400 Regular Price EGP 1,250
Trailing lead, Unica extend, 5 Schuko, switchable, USB type A+A, 1.5m cable, whiteSpecial Price EGP 460 Regular Price EGP 1,395
Schneider Electric Miniature Plug-In Relay, 4PDT, 6A, 24V DCSpecial Price EGP 212 Regular Price EGP 366
Trailing lead, Unica extend, 3 Schuko, switchable, USB type A+A, 1.5m cable, whiteSpecial Price EGP 400 Regular Price EGP 1,250
Schneider Electric Resi9, 1P, 10A Miniature Circuit Breaker (MCB), C curve, 4500A (IEC/EN 60898-1)Special Price EGP 161 Regular Price EGP 264
Overvoltage release, Acti9, iMSU, voltage release, 230 V AC (A9A26500)Special Price EGP 1,185 Regular Price EGP 6,326
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 63 A, C curveSpecial Price EGP 419 Regular Price EGP 581
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 63A In rated current and C tripping curve.
Specifications:
| Main | |
| Device application | Distribution |
| Range | Acti9 |
| product name | Acti9 iK60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 63 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Complementary | |
| Network frequency | 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 12:00 AM |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 78.5 mm |
| Net weight | 300 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid |
| Tunnel type terminal (top or bottom) 1…25 mm² flexible | |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Weight | 0.300000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9K24363 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.85 |
| Width [cm] | 5.4 |
| Height [cm] | 8.5 |
| Range | IK602P |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 3P |
| [In] Rated Current | 63 A at 30 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
