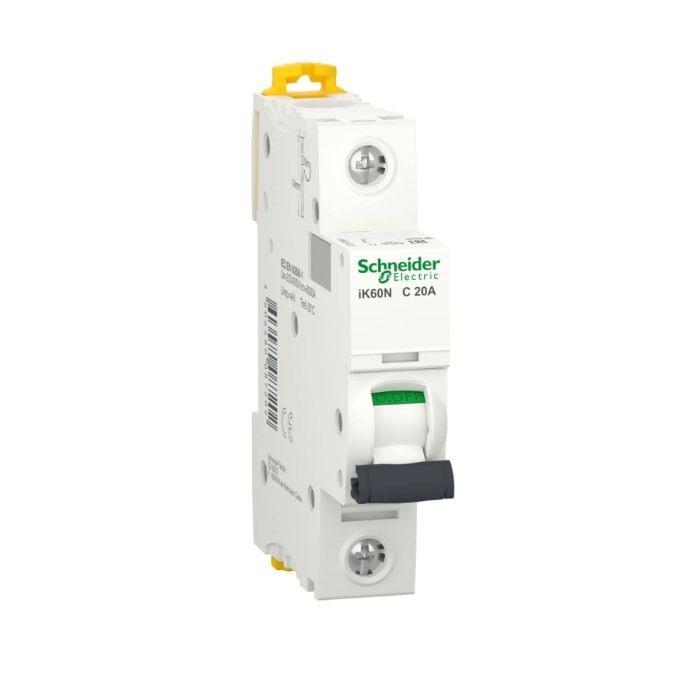

Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 20 A, C curve
In stock
SKU
A9K24120
Special Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 20 A, C curve is available to buy in increments of 1
Quick Overview
Rang: Acti9
Poles description: 1P
Number of protected poles: 1
[In] rated current: 20 A at 30 °C
Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
You May Also Like:
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 16 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 32 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 25 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 40 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker, 1P, 10 A, C curveSpecial Price EGP 167 Regular Price EGP 253
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 1P, 63 A, C curveSpecial Price EGP 419 Regular Price EGP 581
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 1,185 Regular Price EGP 6,326
Schneider Electric Acti 9, IH mechanical time switch, 24 h, 200 h memorySpecial Price EGP 2,700 Regular Price EGP 4,520
Schneider Electric Acti9 iC60N 63 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 440 Regular Price EGP 672
Schneider Electric Acti9 IK60N Miniature Circuit Breaker 1P, 50A, C CurveSpecial Price EGP 419 Regular Price EGP 581
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 3P, 40 A, C curveSpecial Price EGP 1,402 Regular Price EGP 1,947
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N 32 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 iK60N Miniature Circuit Breaker 2P, 63 A, C curveSpecial Price EGP 866 Regular Price EGP 1,202
Schneider Electric Acti9 iC60N 20 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 3P, 63 A, C curveSpecial Price EGP 1,948 Regular Price EGP 2,974
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 1P, 25 A, 10 kA, C curveSpecial Price EGP 316 Regular Price EGP 485
Schneider Electric Acti9 iC60N 40 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 316 Regular Price EGP 483
Schneider Electric Acti9 C120N 100 A Miniature Circuit Breaker 1P, C curveSpecial Price EGP 1,550 Regular Price EGP 2,367
Schneider Electric Acti9 C120N Miniature circuit-breaker, 3P, 100 A, C curveSpecial Price EGP 4,159 Regular Price EGP 6,349
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 20A In rated current and C tripping curve.
| Main | |
| Device application | Distribution |
| Range | Acti9 |
| product name | Acti9 iK60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 20 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Complementary | |
| Network frequency | 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 100 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid |
| Tunnel type terminal (top or bottom) 1…16 mm² flexible | |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | III |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Weight | 0.150000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9K24120 |
| Color | White |
| Device Application | Distribution |
| Range | Acti9 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 1P |
| [In] Rated Current | 20 A at 30 °C |
