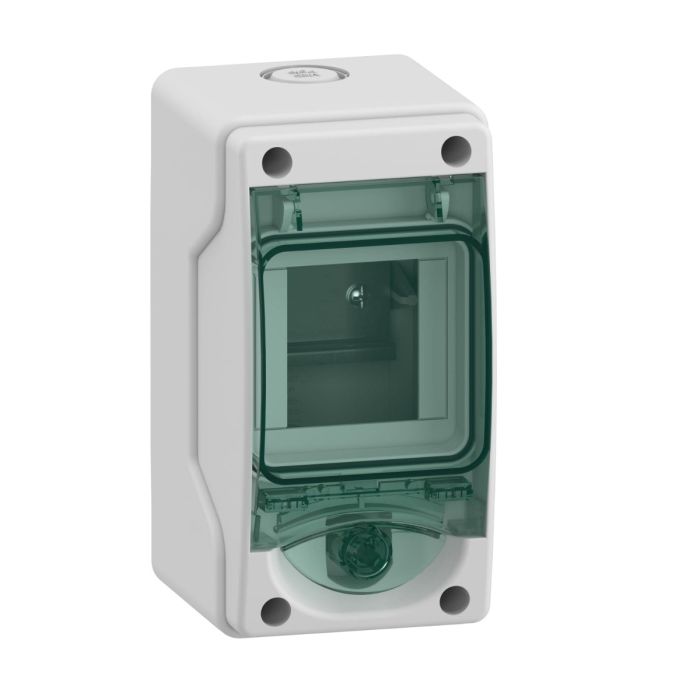

Schneider Electric, Mini Kaedra, For Modular Device, 1 Openings, 3 Modules
Range: Mureva
Product Type: Mini Kaedra for Modular Device
Number of Openings: 1
Module Capacity: 3 Modules
Description: The 13975 Mini Kaedra for Modular Device is a versatile and compact solution for housing modular electrical devices. With a single opening and a module capacity of 3 modules, it provides flexibility in configuring and organizing electrical components. This mini Kaedra is designed for efficient use of space while maintaining a clean and organized appearance.
Ideal for various applications, the Mini Kaedra ensures easy access to modular devices and facilitates quick installations. Its design supports a range of electrical configurations, making it suitable for residential, commercial, and industrial settings.
Key Features:
Mini Kaedra for Modular Device
Number of Openings: 1
Module Capacity: 3 Modules
Versatile and Compact Design
Efficient Use of Space
Easy Access to Modular Devices
Suitable for Residential, Commercial, and Industrial Applications
| Specifications | |
Main | |
| Range | Mureva |
| Product name | Mureva Enclosure |
| Product or component type | Weatherproof enclosure |
| Enclosure type | Mini enclosure for modular device |
| Mounting plate description | Slotted |
| Complementary | |
| Enclosure mounting | Surface |
| Number of 18 mm modules per row | 3 |
| Total number of 18 mm modules | 3 |
| Number of horizontal rows | 12:00 AM |
| Electrical insulation class | Double insulation |
| Class II | |
| Provided equipment | 1 marking kit |
| type of front cover | Transparent |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 1 |
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 80 mm |
| Height | 150 mm |
| Depth | 98 mm |
| Internal depth | 56 mm |
| Colour | Door: transparent green |
| Enclosure: light grey (RAL 7035) | |
| Environment | |
| standards | IEC 61439-3 |
| IEC 60670 | |
| IEC 60695-2-1 | |
| EN 50262 | |
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 |
| Ultraviolet degradation test conforming to ISO 4892-2:2013 | |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Weight | 0.260000 |
|---|---|
| Brand | Schneider Electric |
| Model | 13975 |
| Depth [cm] | 9.8 |
| Width [cm] | 8 |
| Height [cm] | 15 |
| Range | Kaedra |
| Family | HDCFD |
