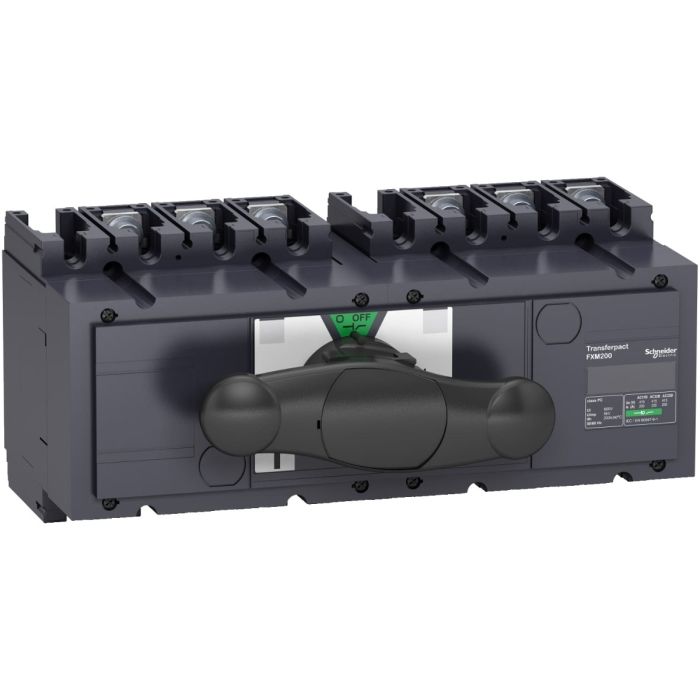

Schneider Electric, Manual source changeover switch INS250 - 3 poles - 200 A

In stock
SKU
31142
Special Price EGP 33,228 Regular Price EGP 50,345
Quick Overview

Range: TransferPact ComPact
Product or component type: Manual transfer switch
Device application: Change source of supply
Poles Description: 3P

FXM200 is a complete manual source changeover assembly for two Compact INS250-200 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size,taking up less room in the switchboard. The operational current is 200A at 690VAC 50/60Hz,in categories AC22A/AC23A. The operational current is 200A at 125VDC (2 poles in series) or at 250VDC (4 poles in series),in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON,OFF,replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.



Specifications

Main


Range of productINS250
RangeTransferPacT
 ComPact
device short nameINS250
Product or component typeManual transfer switch
Device applicationChange source of supply
Range compatibilityComPact ComPacT INS INS250 switch disconnector
Poles description3P
Network typeDC
 AC
Network frequency50/60 Hz
Mounting modeFixed
Upside connectionFront
downside connectionFront
Suitability for isolationYes
Contact position indicatorYes
[Icm] rated short-circuit making capacity30 kA switch-disconnector alone 690 V AC at 50/60 Hz
 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
Complementary
transfer switch classPC
Number of contact position٣
control typeDirect front rotary handle
Operating modeManual
mounting supportPlate
 Rail
Locking options descriptionPadlocking in OFF position
[Ie] rated operational currentAC-22A: 200 A AC 50/60 Hz 220/240 V
 AC-22A: 200 A AC 50/60 Hz 380/415 V
 AC-22A: 200 A AC 50/60 Hz 440/480 V
 AC-22A: 200 A AC 50/60 Hz 500/525 V
 AC-22A: 200 A AC 50/60 Hz 660/690 V
 AC-23A: 200 A AC 50/60 Hz 220/240 V
 AC-23A: 200 A AC 50/60 Hz 380/415 V
 AC-23A: 200 A AC 50/60 Hz 440/480 V
 AC-23A: 200 A AC 50/60 Hz 500/525 V
 AC-23A: 200 A AC 50/60 Hz 660/690 V
 DC-22A: 200 A DC 125 V 2 poles in series
 DC-23A: 200 A DC 125 V 2 poles in series
[Ith] conventional free air thermal current200 A at 60 °C
Rated dutyUninterrupted
Intermittent duty classClass 120 - 60 %
[Ui] rated insulation voltage750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-3
 125 V DC conforming to IEC 60947-3
Mechanical interlockingWith mechanical interlocking
Mechanical durability15000 cycles
Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz
 AC-22A: 1500 cycles 500 V AC 50/60 Hz
 AC-22A: 1500 cycles 690 V AC 50/60 Hz
 AC-23A: 1500 cycles 440 V AC 50/60 Hz
 AC-23A: 1500 cycles 500 V AC 50/60 Hz
 AC-23A: 1500 cycles 690 V AC 50/60 Hz
 DC-22A: 1500 cycles 125 V DC 2 poles in series
 DC-23A: 1500 cycles 125 V DC 2 poles in series
Connection pitch35 mm
[Icw] rated short-time withstand current1.8 kA during 30 s conforming to IEC 60947-3
 2.2 kA during 20 s conforming to IEC 60947-3
 4.9 kA during 3 s conforming to IEC 60947-3
 8.5 kA during 1 s conforming to IEC 60947-3
height136 mm
Width295 mm
Depth131 mm
Net weight6.4 kg
Environment
standardsIEC 60947-3
 IEC 60947-1
product certificationsCB
Electrical shock protection classClass II
IP degree of protectionIP40 conforming to IEC 60947-3
Pollution degree3
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C









More Information
Weight6.500000
BrandSchneider Electric
Model31142
Depth [cm]13.1
Width [cm]29.5
Height [cm]13.6
