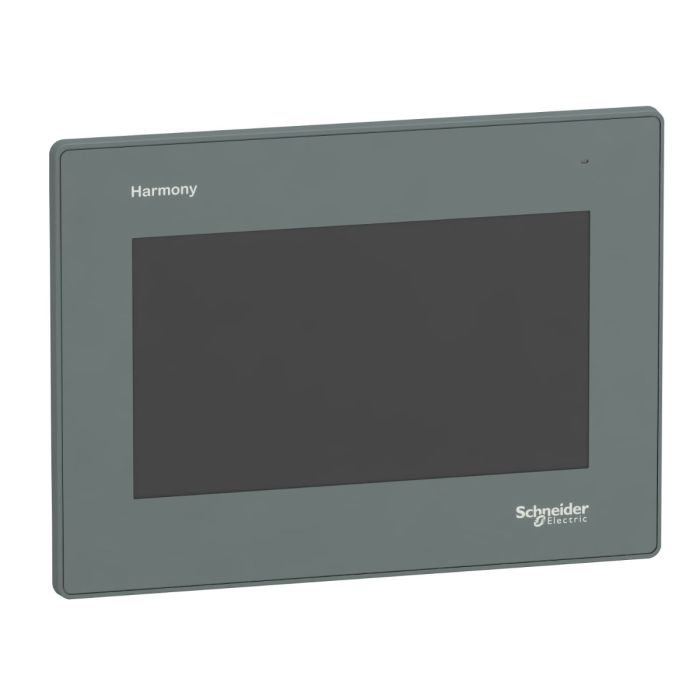

Schneider Electric Magelis XU Series HMI HMIGXU3500
Range of product: Harmony Easy GXU
Product type: Advanced touchscreen panel
Display size: 7 inch
Display type: LCD touch screen
The Schneider Electric Magelis XU Series HMI (Human-Machine Interface) model HMIGXU3500 is a 7-inch wide-screen basic model designed to provide an intuitive and user-friendly interface for various applications. With its embedded real-time clock (RTC) and one serial port, it offers essential features for controlling and monitoring processes.
Key Features:
7-inch Wide-Screen: The HMI features a 7-inch wide-screen display, providing a clear and spacious interface for users.
Embedded RTC: An embedded real-time clock ensures accurate timekeeping and timestamping of data, essential for time-sensitive applications.
Serial Port: Equipped with one serial port for communication and data exchange with other devices and systems.
User-Friendly Interface: The Magelis XU Series offers an easy-to-navigate interface for controlling and monitoring processes.
Technical Specifications:
Screen Size: 7 inches
Serial Port: 1 port
Specifications
| Main | |
| Range of product | Harmony Easy GXU |
| Product or component type | Advanced touchscreen panel |
| Display type | LCD touch screen |
| Display colour | 65536 colours |
| Display resolution | 800 x 480 pixels WVGA |
| Display size | 7 inch |
| Complementary | |
| Backlight lifespan | 20000 hours |
| [Us] rated supply voltage | 24 V DC |
| Software designation | Vijeo Designer Basic configuration software |
| Memory description | Internal, 32 MB for application |
| Internal DDR, 128 MB | |
| Internal, 128 kB for backup | |
| Integrated connection type | COM1 serial link: 9-way male SUB-D connector, RS422/RS485 |
| USB type mini B | |
| Cut-out dimensions | 190 x 135 mm |
| Environment | |
| Quality labels | CE |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| IP degree of protection | IP65 (front panel) |
| Weight | 0.881000 |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGXU3500 |
| Range | GXU |
| Family | IDHMI |
| Display | 7 inch LCD Touch Screen |
