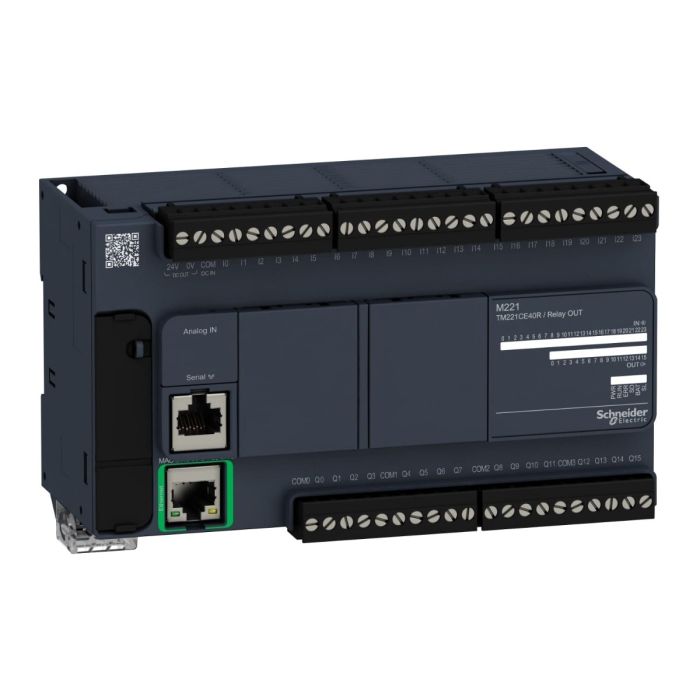

Schneider Electric M221 Controller with 40 I/O, Relay Output, and Ethernet
In stock
SKU
TM221CE40R
Special Price EGP 43,282 Regular Price EGP 78,694
Schneider Electric M221 Controller with 40 I/O, Relay Output, and Ethernet is available to buy in increments of 1
Quick Overview
Range of product: Modicon M221
Product type: Logic controller
Discrete output current: 2 A
Discrete I/O number: 40
The Schneider Electric TM221CE40R is an M221 Controller designed for industrial applications. This controller features 40 I/O points and relay outputs, making it suitable for various automation and control tasks. It also includes Ethernet connectivity, allowing for network integration and remote monitoring.
Product Features:
Industrial Controller: Designed for industrial automation and control applications.
40 I/O Points: Provides flexibility with 40 input/output points.
Relay Outputs: Equipped with relay outputs for switching applications.
Ethernet Connectivity: Allows for network integration and remote monitoring.
Versatile Usage: Suitable for a wide range of automation tasks.
Specifications
| Main | |
| Range of product | Modicon M221 |
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete input number | 24, discrete input conforming to IEC 61131-2 Type 1 |
| Analogue input number | 2 at 0...10 V |
| Discrete output type | Relay normally open |
| Discrete output number | 16 relay |
| Discrete output voltage | 5...125 V DC |
| 5...250 V AC | |
| Discrete output current | 02:00 ص |
| Complementary | |
| Discrete I/O number | 40 |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture) |
| 14 (remote I/O-Architecture) | |
| Supply voltage limits | 85…264 V |
| Network frequency | 50/60 Hz |
| Inrush current | 40 A |
| Maximum power consumption in VA | 70 VA at 100...240 V with max number of I/O expansion module |
| 41 VA at 100...240 V without I/O expansion module | |
| Power supply output current | 0.52 A 5 V for expansion bus |
| 0.24 A 24 V for expansion bus | |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| analogue input resolution | 10 bits |
| LSB value | 10 mV |
| Conversion time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Permitted overload on inputs | +/- 30 V DC for 5 min (maximum) for analog input |
| +/- 13 V DC (permanent) for analog input | |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Discrete input current | 7 mA for discrete input |
| 5 mA for fast input | |
| Input impedance | 3.4 kOhm for discrete input |
| 100 kOhm for analog input | |
| 4.9 kOhm for fast input | |
| Response time | 35 µs turn-off, I2...I5 terminal(s) for input |
| 10 ms turn-on for output | |
| 10 ms turn-off for output | |
| 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input | |
| 35 µs turn-on, other terminals terminal(s) for input | |
| 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input | |
| 100 µs turn-off, other terminals terminal(s) for input | |
| Configurable filtering time | 0 ms for input |
| 3 ms for input | |
| 12 ms for input | |
| Output voltage limits | 125 V DC |
| 277 V AC | |
| Maximum current per output common | 07:00 ص |
| Absolute accuracy error | +/- 1 % of full scale for analog input |
| Electrical durability | 100000 cycles AC-12, 120 V, 240 VA, resistive |
| 100000 cycles AC-12, 240 V, 480 VA, resistive | |
| 300000 cycles AC-12, 120 V, 80 VA, resistive | |
| 300000 cycles AC-12, 240 V, 160 VA, resistive | |
| 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive | |
| 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive | |
| 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive | |
| 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive | |
| 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive | |
| 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive | |
| 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive | |
| 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive | |
| 100000 cycles DC-12, 24 V, 48 W, resistive | |
| 300000 cycles DC-12, 24 V, 16 W, resistive | |
| 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) | |
| 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms) | |
| Switching frequency | 20 switching operations/minute with maximum load |
| Mechanical durability | 20000000 cycles for relay output |
| Minimum load | 1 mA at 5 V DC for relay output |
| Protection type | Without protection at 5 A |
| Reset time | 1 s |
| Memory capacity | 256 kB for user application and data RAM with 10000 instructions |
| 256 kB for internal variables RAM | |
| Data backed up | 256 kB built-in flash memory for backup of application and data |
| Data storage equipment | 2 GB SD card (optional) |
| Battery type | BR2032 or CR2032X lithium non-rechargeable |
| Backup time | 1 year at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Maximum size of object areas | 8000 %MW memory words |
| 255 %TM timers | |
| 512 %KW constant words | |
| 255 %C counters | |
| 512 %M memory bits | |
| Realtime clock | With |
| Clock drift | <= 30 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| counter function | Single phase |
| A/B | |
| Pulse/direction | |
| Integrated connection type | USB port with mini B USB 2.0 connector |
| Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface | |
| Ethernet with RJ45 connector | |
| Supply | (Serial)serial link supply: 5 V, <200 mA |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 |
| 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 | |
| 480 Mbit/s for USB | |
| Communication port protocol | USB port: USB - SoMachine-Network |
| Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network | |
| Ethernet | |
| Port Ethernet | 10BASE-T/100BASE-TX 1 port with 100 m copper cable |
| Communication service | DHCP client |
| Modbus TCP client | |
| Ethernet/IP adapter | |
| Modbus TCP server | |
| Modbus TCP slave device | |
| Local signalling | 1 LED (green) for PWR |
| 1 LED (green) for RUN | |
| 1 LED (red) for module error (ERR) | |
| 1 LED (green) for SD card access (SD) | |
| 1 LED (red) for BAT | |
| 1 LED per channel (green) for I/O state | |
| 1 LED (green) for SL | |
| Ethernet network activity (green) for ACT | |
| Ethernet network link (yellow) for Link (Link Status) | |
| Electrical connection | Removable screw terminal block for inputs |
| removable screw terminal block for outputs | |
| terminal block, 3 terminal(s) for connecting the 24 V DC power supply | |
| connector, 4 terminal(s) for analogue inputs | |
| Mini B USB 2.0 connector for a programming terminal | |
| Maximum cable distance between devices | Shielded cable: <10 m for fast input |
| Unshielded cable: <30 m for output | |
| Unshielded cable: <30 m for digital input | |
| Unshielded cable: <1 m for analog input | |
| Insulation | Between input and internal logic at 500 V AC |
| Non-insulated between analogue input and internal logic | |
| Non-insulated between analogue inputs | |
| Between supply and ground at 1500 V AC | |
| Between sensor power supply and ground at 500 V AC | |
| Between input and ground at 500 V AC | |
| Between output and ground at 1500 V AC | |
| Between supply and internal logic at 2300 V AC | |
| Between sensor power supply and internal logic at 500 V AC | |
| Between output and internal logic at 2300 V AC | |
| Between Ethernet terminal and internal logic at 500 V AC | |
| Between supply and sensor power supply at 2300 V AC | |
| Marking | CE |
| Sensor power supply | 24 V DC at 250 mA supplied by the controller |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| plate or panel with fixing kit | |
| height | 90 mm |
| Depth | 70 mm |
| Width | 160 mm |
| Net weight | 0.456 kg |
| Environment | |
| standards | EN/IEC 61131-2 |
| UL 508 | |
| CAN/CSA C22.2 No. 213 | |
| IACS E10 | |
| ANSI/ISA 12-12-01 | |
| product certifications | DNV-GL |
| EAC | |
| ABS | |
| cULus | |
| LR | |
| RCM | |
| CE | |
| UKCA | |
| cULus HazLoc | |
| Environmental characteristic | Ordinary and hazardous location |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 |
| 4 kV on contact conforming to EN/IEC 61000-4-2 | |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | |
| 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 | |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| 2 kV (relay output) conforming to EN/IEC 61000-4-4 | |
| 1 kV (I/O) conforming to EN/IEC 61000-4-4 | |
| 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4 | |
| 1 kV (serial link) conforming to EN/IEC 61000-4-4 | |
| Surge withstand | 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5 |
| 2 kV relay output common mode conforming to EN/IEC 61000-4-5 | |
| 1 kV I/O common mode conforming to EN/IEC 61000-4-5 | |
| 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5 | |
| 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5 | |
| 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5 | |
| 1 kV relay output differential mode conforming to EN/IEC 61000-4-5 | |
| 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 | |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL) | |
| 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) | |
| Electromagnetic emission | Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to EN/IEC 55011 |
| Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to EN/IEC 55011 | |
| Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011 | |
| Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011 | |
| Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 | |
| Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011 | |
| Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to EN/IEC 55011 | |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) |
| -10…35 °C (vertical installation) | |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail |
| 3.5 mm at 5…8.4 Hz on panel mounting | |
| 1 gn at 8.4…150 Hz on symmetrical rail | |
| 1 gn at 8.4…150 Hz on panel mounting | |
| Shock resistance | 98 m/s² for 11 ms |
| Weight | 0.456000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM221CE40R |
| Width [cm] | 7 |
| Height [cm] | 9 |
| Range | M221 |
| Family | IDMST |
