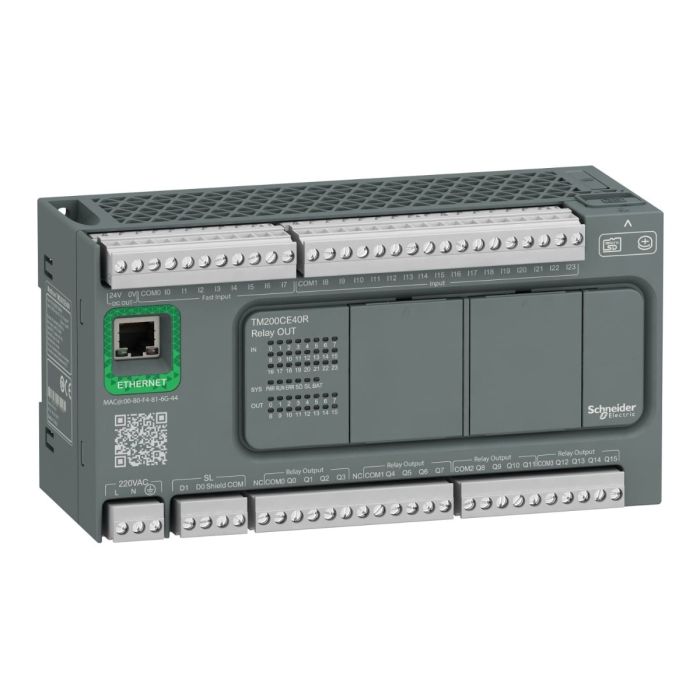

Schneider Electric M200 Controller with 40 I/O, Relay Outputs, and Ethernet
Out of stock
SKU
TM200CE40R
Special Price EGP 18,829 Regular Price EGP 34,234
Quick Overview
Range of product: Easy Modicon M200
Product type: Logic controller
Discrete output current: 2 A
Discrete I/O number: 40
The Schneider Electric TM200CE40R is an M200 Controller designed for industrial automation applications. This controller features 40 I/O points, relay outputs, and Ethernet connectivity. It is ideal for applications where communication and control are essential, offering a balanced combination of I/O points and networking capabilities.
Product Features:
Industrial Controller: Designed for industrial automation and control applications.
40 I/O Points: Provides a suitable number of input/output points for various applications.
Relay Outputs: Equipped with relay outputs for switching applications.
Ethernet Connectivity: Enables communication and networking capabilities.
Versatile Usage: Suitable for a wide range of automation tasks.
Specifications
| Main | |
| Range of product | Easy Modicon M200 |
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete I/O number | 40 |
| Discrete input number | I2...I5: 4 fast input |
| I0, I1, I6, I7: 4 high speed input | |
| I8...I23: 16 regular input | |
| Discrete output number | 16 relay |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Discrete input current | 7 mA for input |
| Discrete input logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage | 24 V DC |
| 220 V AC | |
| Discrete output current | 02:00 ص |
| Discrete output type | Relay normally open |
| Power consumption in VA | 59…69 VA at 100...240 V AC (with max I/O) |
| Complementary | |
| Maximum number of I/O expansion module | 4 with 128 discrete output(s) for transistor output |
| 4 with 80 discrete output(s) for relay output | |
| Supply voltage limits | 85…264 V |
| Network frequency | 50/60 Hz |
| Inrush current | 50 A |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Input impedance | 3.3 kOhm for discrete input |
| Response time | 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input |
| 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input | |
| 100 µs turn-off, I2...I5 terminal(s) for fast input | |
| 35 µs turn-on, I2...I5 terminal(s) for fast input | |
| 100 µs turn-off, I8...I13 terminal(s) for regular input | |
| 35 µs turn-on, I8...I13 terminal(s) for regular input | |
| 10 ms turn-off, Q0...Q15 terminal(s) for relay output | |
| 10 ms turn-on, Q0...Q15 terminal(s) for relay output | |
| 125 µs turn-off, I14...I23 terminal(s) for regular input | |
| 55 µs turn-on, I14...I23 terminal(s) for regular input | |
| Configurable filtering time | 0 ms for input |
| 3 ms for input | |
| 12 ms for input | |
| Output voltage limits | 30 V DC |
| 250 V AC | |
| Maximum current per output common | 04:00 ص |
| Electrical durability | 100000 cycles AC-12, 240 V, 480 VA, resistive |
| 100000 cycles DC-12, 24 V, 48 W, resistive | |
| Switching frequency | 0.1 Hz with maximum load |
| Mechanical durability | 20000000 cycles for relay output |
| Minimum load | 10 mA at 5 V DC for relay output |
| Memory capacity | 512 byte internal flash for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup time | 3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Control signal type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) |
| Pulse/direction at 100 kHz for fast input (HSC mode) | |
| Single phase at 100 kHz for fast input (HSC mode) | |
| CW/CCW at 100 kHz for fast input (HSC mode) | |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector |
| Non isolated serial link serial 1 with terminal block connector and RS485 interface | |
| Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface | |
| Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface | |
| Isolated serial link serial 2 with terminal block connector and RS485 interface | |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 |
| 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 | |
| 12 Mbit/s for USB | |
| 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP | |
| Communication port protocol | USB port: USB - SoMachine-Network |
| Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network | |
| Ethernet Modbus TCP/IP: Modbus TCP/IP client/server | |
| Local signalling | 1 LED (green) for PWR |
| 1 LED (green) for RUN | |
| 1 LED (red) for module error (ERR) | |
| 1 LED (green) for SD card access (SD) | |
| 1 LED (red) for BAT | |
| 1 LED (green) for SL1 | |
| 1 LED per channel (green) for I/O state | |
| 2 LEDs (green) for communication (LK/ACT 10/100) | |
| Electrical connection | Mini B USB 2.0 connectorfor a programming terminal |
| RJ45 connectorfor connecting Ethernet network | |
| removable screw terminal blockfor inputs | |
| removable screw terminal blockfor outputs | |
| removable screw terminal block, 4 terminal(s) for connecting the serial link1 | |
| removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply | |
| Maximum cable distance between devices | Unshielded cable: <50 m for input |
| Shielded cable: <10 m for fast input | |
| Shielded cable: <10 m for high speed input | |
| Unshielded cable: <150 m for output | |
| Insulation | Non-insulated between inputs |
| Between output and internal logic at 1780 V AC | |
| Between output groups at 1780 V AC | |
| Between supply and internal logic at 1780 V AC | |
| Between input and internal logic at 500 V AC | |
| Between fast input and internal logic at 500 V AC | |
| Between input groups at 500 V AC | |
| Sensor power supply | 24 V DC at 300 mA supplied by the controller |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 | |
| height | 90 mm |
| Depth | 70 mm |
| Width | 175 mm |
| Net weight | 0.512 kg |
| Environment | |
| IP degree of protection | IP20 with protective cover in place |
| product certifications | RCM |
| IACS E10 | |
| CSA | |
| cULus | |
| standards | IEC 61010-2-201 |
| IEC 61131-2 | |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
| Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 | |
| Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 | |
| Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 | |
| Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 | |
| 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 | |
| Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 | |
| Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 | |
| Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 | |
| Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 | |
| Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 | |
| Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 | |
| Shock resistance | 15 gn for 11 ms |
| 30 gn for 6 ms | |
| Immunity to microbreaks | 10 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail |
| 1 gn at 8.4…150 Hz on symmetrical rail | |
| 3.5 mm at 5…8.7 Hz on panel mounting | |
| 2 gn at 8.7…150 Hz on panel mounting | |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Weight | 0.512000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM200CE40R |
| Width [cm] | 17.5 |
| Height [cm] | 9 |
| Range | M200 |
| Family | IDMST |
