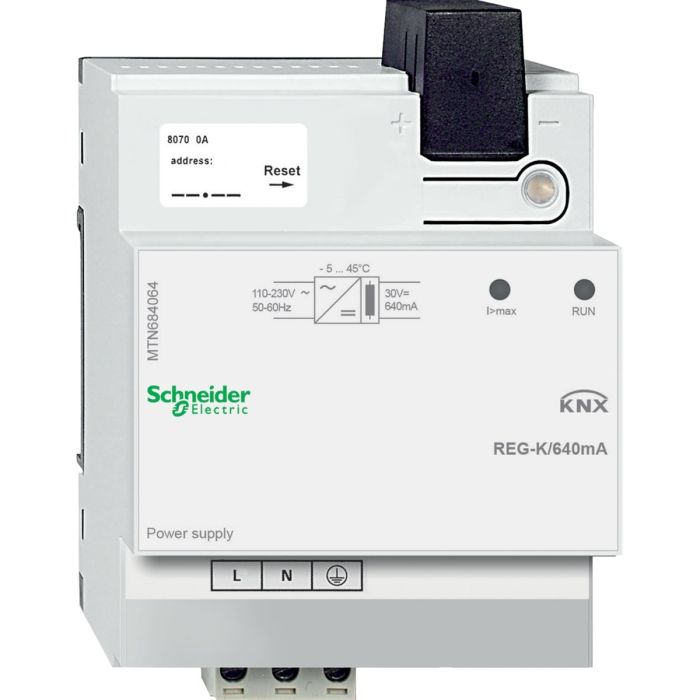

KNX power supply REG-K/640 mA. For generating the bus voltage for a line with up to 64 bus devices. With integrated choke to decouple the power supply from the bus and a push-button to disconnect the power and reset the bus devices connected to the line. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. Nominal voltage: AC 110-230 V ±10%. Operating voltage: min. AC 92 V - max. AC 253 V. Mains frequency: 50-60 Hz ±10%. Output voltage: DC 30 V. Output current: max. 640 mA, short-circuit-proof. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover
Specifications:
Main | |
Range of product | KNX |
product or component type | Power supply |
Bus type | KNX |
Additional information | With integrated choke |
Complementary | |
total number of 18 mm modules | 4 |
mounting support | DIN rail |
Network frequency | 50...60 Hz |
local signalling | LED |
| Weight | 0.314000 |
|---|---|
| Brand | Schneider Electric |
| Color | Light Gray |
| Range | KNX |
