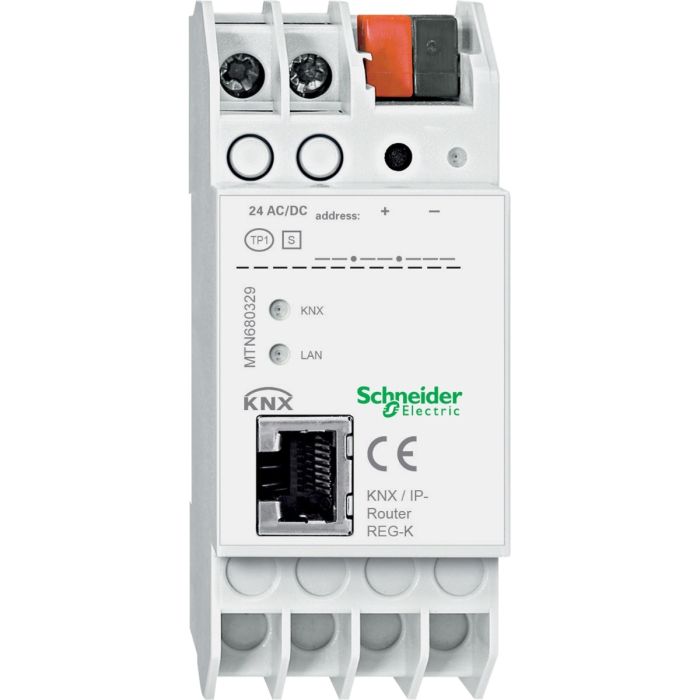

MTN680329 is a KNX/IP router REG-K, its color is light grey. It has 2 modules of 18 mm and its mounting wiring device is DIN rail. It has an ethernet RJ45 communication network and allows TCP/IP and KNX port protocols. It includes an updateable software. The router device has a rated voltage of 24 V and IP20 degree of protection. It is halogen free and Green Premium product compliant with EU RoHS Directive. At KNX all devices are connected to a common bus line (2 wires) which will be installed parallel to the main circuit. Each device is mainly able to communicate with all the others. When a sensor is activated, the actuator carries out the desired orders and acts. All functions can be parameterized and extended constantly without damaging the building.
Specifications:
Main | |
Range of product | SpaceLogic KNX |
Range | SpaceLogic KNX |
product or component type | Router |
Bus type | KNX |
Market segment | Small commercial |
Residential | |
Complementary | |
Software type | Updateable software |
Communication network type | Ethernet RJ45 |
Communication port protocol | TCP/IP |
KNX | |
total number of 18 mm modules | 2 |
mounting support | DIN rail |
[Ue] rated operational voltage | 24 V |
Environment | |
IP degree of protection | IP20 |
| Weight | 0.108000 |
|---|---|
| Brand | Schneider Electric |
| Color | Light Gray |
| Range | SpaceLogic KNX |
| IP Degree of Protection | IP20 |
