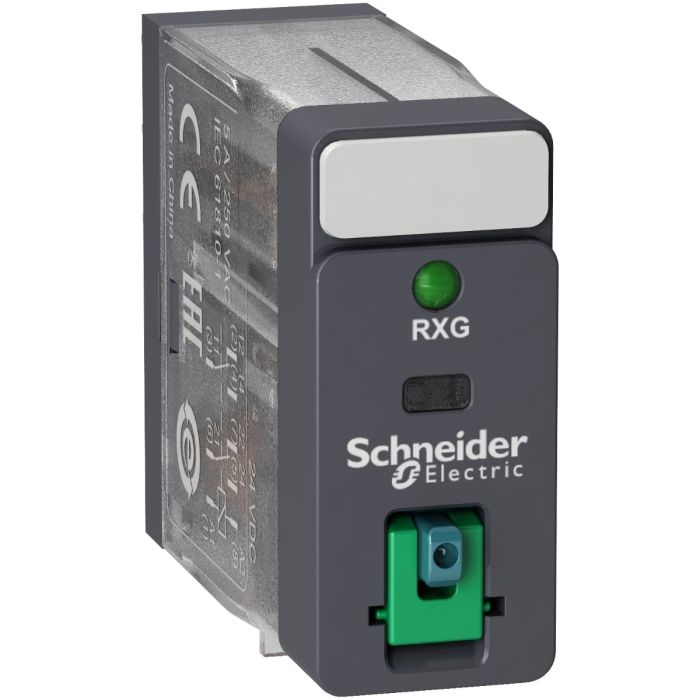

Schneider Electric Interface Plug-in Relay, 5 A, 2 CO (2 Changeover Contacts), Lockable Test Button, LED Indicator, 24 V DC
Range of product: Harmony Electromechanical Relays
Product type: Plug-in relay
Contacts type and composition: 2 C/O
Status LED: Status LED
The Schneider Electric RXG22BD is a reliable interface plug-in relay designed for various industrial applications. With 2 changeover contacts (2 CO), a lockable test button, and a built-in LED indicator, this relay offers versatile and secure control solutions.
Key Features:
2 CO Contacts: This relay features 2 changeover contacts, making it suitable for a wide range of applications.
Lockable Test Button: The test button is lockable, providing added security and control.
LED Indicator: The built-in LED indicator offers visual feedback about the relay's status.
Product Specifications:
Type: Interface Plug-in Relay
Current Rating: 5 A
Contacts: 2 CO (2 Changeover Contacts)
Test Button: Lockable
LED Indicator: Yes
Voltage: 24 V DC
Specifications
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | Interface relay |
| Product or component type | Plug-in relay |
| Device short name | RXG |
| Contacts type and composition | 2 C/O |
| Complementary | |
| Status LED | With |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Maximum contact resistance | 100 mOhm |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL |
| 5 A at 30 V (DC) conforming to IEC | |
| 5 A at 250 V (AC) conforming to IEC | |
| 5 A at 250 V (AC) conforming to UL | |
| Maximum switching voltage | 250 V AC |
| 30 V DC | |
| Load current | 5 A at 250 V AC |
| Maximum switching capacity | 1250 VA |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Operating rate | <= 1800 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Utilisation coefficient | 20% |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C |
| 100000 cycles for NC resistive load at 55 °C | |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| Dielectric strength | 1000 V AC between contacts with micro disconnection |
| 5000 V AC between coil and contact with reinforced insulation | |
| 3000 V AC between poles with basic insulation | |
| Coil resistance | 1100 Ohm +/- 10 % |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Test levels | Level A group mounting |
| Mounting position | Any position |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Coil insulation class | Class F |
| Operate time | 20 ms |
| Release time | 20 ms |
| [Uc] control circuit voltage | 24 V DC |
| Safety reliability data | B10d = 100000 |
| colour of cover | Standard |
| control type | Lockable test button |
| Local signalling | Flag |
| Torque value | 0.8 N.m |
| Net weight | 0.02 kg |
| Device presentation | Complete product |
| Environment | |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation |
| 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation | |
| IP degree of protection | IP40 |
| Shock resistance | 20 gn in operation |
| 100 gn not in operation | |
| Protection category | RT I |
| standards | CSA C22.2 No 14 |
| UL 508 | |
| IEC 61810-1 | |
| product certifications | CSA |
| CE | |
| EAC | |
| UL | |
| DNV-GL | |
| Pollution degree | 2 |
| Overvoltage category | III |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
| Weight | 0.020900 |
|---|---|
| Brand | Schneider Electric |
| Model | RXG22BD |
| Range | Zelio Relays - RXG |
| Family | IDSIG |
