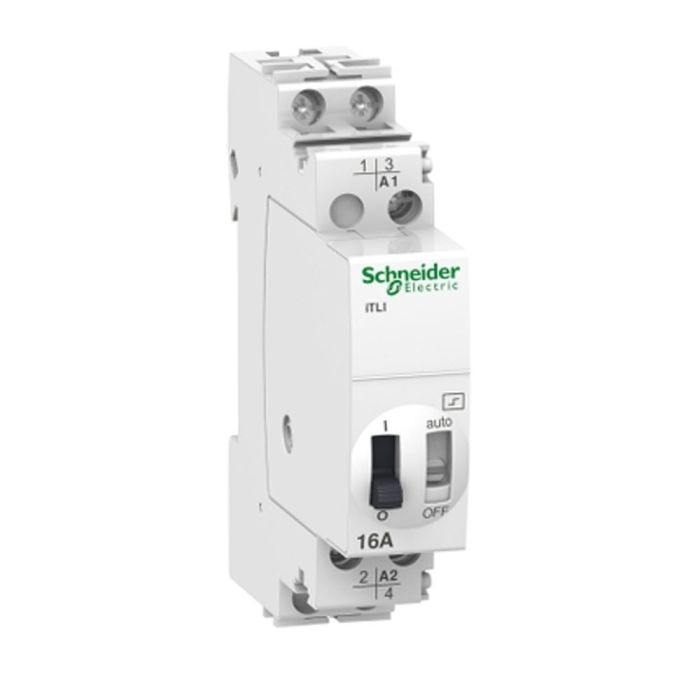

Schneider Electric Impulse Relay , 2P, 1NO+1NC, 16A, Coil 110VDC, 230, 240VAC, 50, 60Hz
In stock
SKU
A9C30815
EGP 3,926
Schneider Electric Impulse Relay , 2P, 1NO+1NC, 16A, Coil 110VDC, 230, 240VAC, 50, 60Hz is available to buy in increments of 1
Quick Overview
Range: Acti9
Product type: Impulse relay
Device application: Changeover relay
Poles: 2P
This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC.
Specifications:
| Main | |
| range of product | Acti9 |
| product name | Acti9 iTL |
| Product or component type | Impulse relay |
| Device short name | iTLi |
| Device application | Changeover relay |
| Poles | 2P |
| Pole contact composition | 1 NO + 1 NC |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage | 230...240 V AC 50/60 Hz |
| 110 V DC | |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| control type | Coil deconnection |
| Remote and manual control | |
| Control signal type | Impulse |
| Switching frequency | 5 switching operations/minute |
| 100 switching operations/day | |
| Impulse duration | 50 ms...1 s |
| Remote control type | Illuminated push-button 3 mA |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability | AC-21: 200000 cycles |
| AC-22: 100000 cycles | |
| Connections - terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid |
| Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end | |
| Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible | |
| Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule | |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility | Acti9 iATEt |
| Acti9 iATL4 | |
| Acti9 iATLc | |
| Acti9 iATLc+s | |
| Acti9 iATLm | |
| Acti9 iATLs | |
| Acti9 iATLz | |
| Acti9 iETL iTL 16 | |
| Acti9 iATLc+c | |
| Acti9 iATL24 | |
| Environment | |
| Standards | EN 669-1 |
| EN 669-2-2 | |
| Product certifications | CCC |
| GOST | |
| Quality labels | CEBEC |
| NF | |
| IMQ | |
| KEMA | |
| VDE | |
| Noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening) |
| IP40 conforming to IEC 60529 (in enclosure) | |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Weight | 0.112000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9C30815 |
| Range | Impulse Relays |
| Family | HDCFD |
| Type | Impulse relay |
| Poles | 2P |
| [In] Rated Current | 16 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
