Schneider Electric Hour Counter, Harmony XB5, Plastic, 22mm, Mechanical 5 Digit Display, 230..240V AC
Range: Harmony XB5
Product Type: Hour counter
Bezel material: Dark grey plastic
Reset: Without
You May Also Like:
Schneider Electric Illuminated Push Button, Plastic, Flush, Green, 22mm, Spring Return, 24V AC/DC, 1 Normally Open + 1 Normally ClosedSpecial Price EGP 796 Regular Price EGP 1,373

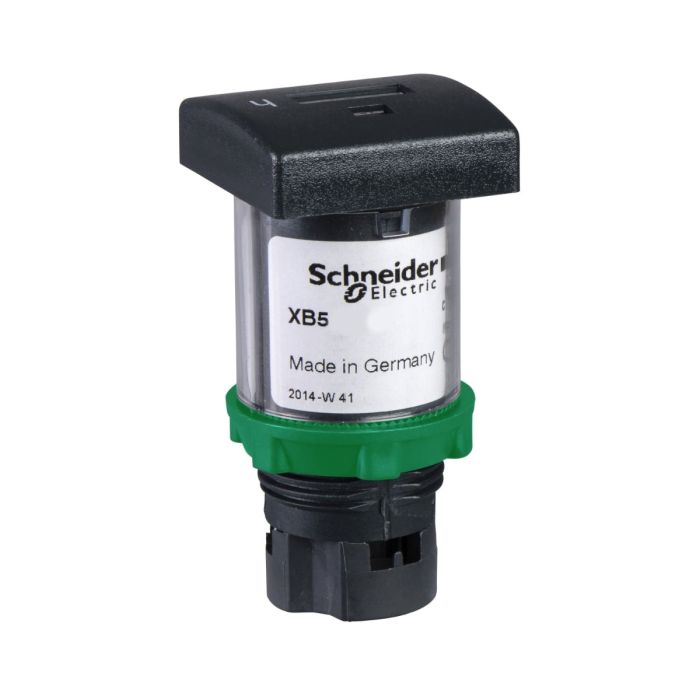

This Schneider Electric Harmony XB5 hour counter has 5 display digits and is supplied with 230 to 240Vac. It has a rectangular shape with a metal body and a plastic bezel. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into a standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications It is CE and UL certified. This range delivers an innovative and ergonomic design that allows easy operation and improves the look and feel of your control panels and machines.
Specifications:
| Main | |
| Range of Product | Harmony XB5 |
| Bezel material | Dark grey plastic |
| Product or Component Type | Hour counter |
| Mounting diameter | 0.9 in (22 mm) |
| Reset | Without |
| Complementary | |
| [Us] rated supply voltage | 230...240 V +/- 10 % |
| Display digits | 5 |
| Current Consumption | 8 mA |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mounting Mode | Flush-mounted |
| Mounting Support | Panel mounting |
| Height | 1.2 in (30 mm) |
| Width | 1.2 in (30 mm) |
| Depth | 2.4 in (60 mm) |
| Device presentation | Monolithic product |
| Net Weight | 0.099 lb(US) (0.045 kg) |
| Environment | |
| Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| NEMA Degree of Protection | NEMA 13 |
| Standards | IEC 60947-5-1 |
| Product Certifications | CE |
| UL | |
| Ordering and shipping details | |
| Category | US10CS222467 |
| Discount Schedule | 0CS2 |
| GTIN | 3389110102642 |
| Returnability | |
| Country of origin | FR |
| Weight | 2.000000 |
|---|---|
| Range | Harmony XB5 |
| Family | IDSIG |
| Type | Head for Push-button |
