Schneider Electric Pendant Control Station, Harmony XAC, Empty, Plastic, Yellow, 12 Cut-Outs, Cable 22…35mm
Schneider Electric Pendant Control Station, Harmony XAC, Empty, Plastic, Yellow, 12 Cut-Outs, Cable 22…35mm is available to buy in increments of 1
Quick Overview
Range: Harmony XAC
Product type: Pendant control station
Control station type: Double insulated
Color: Yellow

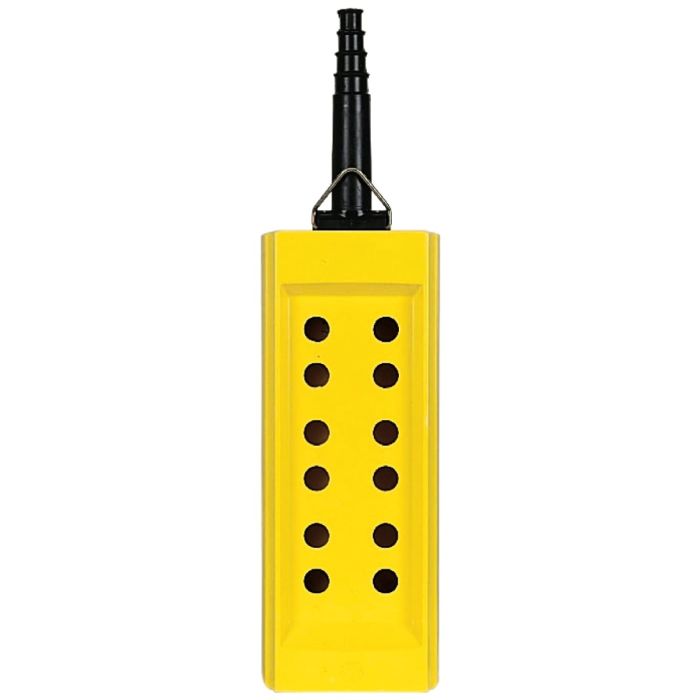

This Harmony XACB125 is an empty pendant control station with 12 openings in 2 columns. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Specifications:
Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACB |
| Complementary | |
| Control station type | Double insulated |
| Enclosure material | Glass reinforced polyester |
| Electrical circuit type | Control circuit |
| Power circuit | |
| enclosure type | Empty enclosure |
| Number of cut-out | 12 cut-outs in 2 rows |
| Control station colour | Yellow |
| Cable entry | Rubber sleeve with stepped entry 22…35 mm |
| Guard rail | Without |
| Vertical operator cut-out centre | 40 mm |
| Standards | IEC 60947-5-1 |
| CSA C22.2 No 14 | |
| Product certifications | CSA type 4 |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Brand | Schneider Electric |
|---|---|
| Model | XACB125 |
| Color | Yellow |
| Range | Harmony XAC |
| Family | IDSIG |
| Type | Pendant control station |
| IP Degree of Protection | IP65 |
| IK Degree of Protection | IK08 |
