Schneider Electric Harmony Miniature Plug-In Relay, 6A, 4 C/O, 230V AC
Range: Harmony Electromechanical Relays
Product type: Plug-in relay
Control type: Lockable test button
Shape of pin: Flat

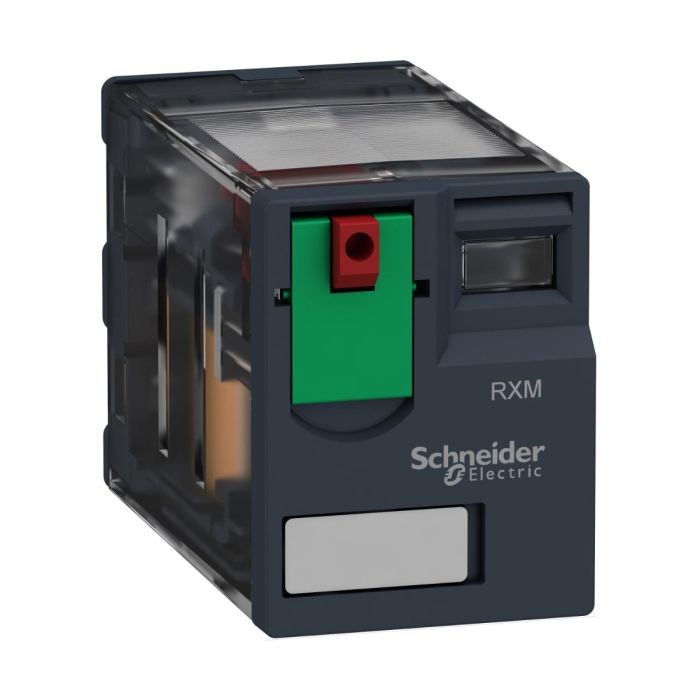

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
Specifications:
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| status LED | Without |
| control type | Lockable test button |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 6:00 AM |
| Continuous output current | 5:00 AM |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC |
| 3 A at 250 V (AC) NC conforming to IEC | |
| 6 A at 28 V (DC) NO conforming to IEC | |
| 6 A at 250 V (AC) NO conforming to IEC | |
| 6 A at 277 V (AC) conforming to UL | |
| 8 A at 30 V (DC) conforming to UL | |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.2 at 60 Hz |
| Rated operational voltage limits | 184...253 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| Average consumption | 1.2 VA at 60 Hz |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc |
| Load current | 6 A at 250 V AC |
| 6 A at 28 V DC | |
| Operating time | 20 ms |
| Maximum switching capacity | 1500 VA/168 W |
| Average resistance | 15000 Ohm at 20 °C +/- 15 % |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Utilisation coefficient | 20% |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| Reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection |
| 2000 V AC between coil and contact with basic insulation | |
| 2000 V AC between poles with basic insulation | |
| Compatibility code | RXM |
| Protection category | RT I |
| pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Product weight | 0.037 kg |
| Environment | |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | IEC 61810-1 |
| CSA C22.2 No 14 | |
| UL 508 | |
| Product certifications | UL |
| Lloyd's | |
| CE | |
| CSA | |
| GOST | |
| IECEE CB Scheme | |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation |
| 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating | |
| Shock resistance | 10 gn for in operation |
| 30 gn for not operating |
| Weight | 0.037000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXM4AB1P7 |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
| Type | Plug-in relay |
| IP Degree of Protection | IP40 |
