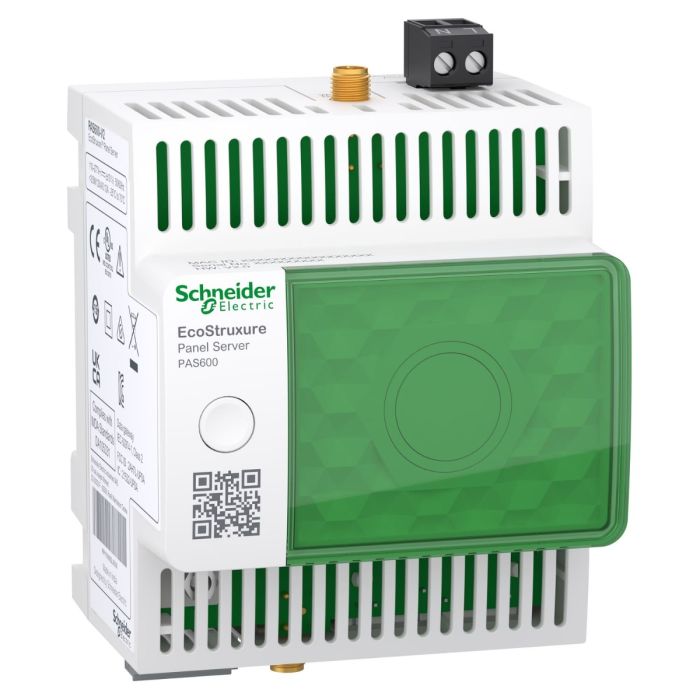

Schneider Electric EcoStruxure Panel Server, Universal Wireless, Concentrator Modbus Gateway 110-277 VAC/DC
Range: EcoStruxure
Product Type: Gateway
Device Application: Gateway
Product Compatibility: Wireless access point
EcoStruxure Panel Server is a gateway,providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy,PowerLogic HeatTag,Power Tag Ambiant,Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres,depth 70,2 millimetres and height 85 millimetres. From 110 to 277 VAC/DC 50-60Hz 3W/10VA Max Power Supply. -25°C to +70°C Operating temperature. 5-95relative humidity. Major certifications including CE,UL/CSA,IEC61010,UL61010,IEC61974-1,Marine certification,IEC61443-4-2,RCM,EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors,IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert,Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert,Asset Advisor and Resource Advisor.
Specifications:
| Main | |
| Range | EcoStruxure |
| Product name | Panel Server Universal |
| Product or Component Type | Gateway |
| Device short name | PAS600 |
| Device Application | Gateway |
| [Us] rated supply voltage | 110...277 V AC 50/60 Hz |
| 110...277 V DC | |
| Communication gateway | Ethernet TCP/IP to wireless devices |
| Ethernet/serial | |
| Complementary | |
| Product Compatibility | Wireless access point |
| Maximum power consumption in W | HW V2: 3.5 W 110...277 V |
| HW V1: 3 W 110...277 V | |
| Maximum power consumption in VA | HW V2: 12 VA at 110...277 V |
| HW V1: 10 VA at 110...277 V | |
| Communication network type | HW V2: Wi-Fi infrastructure5 GHz |
| HW V2: Wi-Fi infrastructure2.4 GHz | |
| HW V1: Wi-Fi infrastructure 10/100BASE-T2.4 GHz | |
| Ethernet 10/100BASE-T2.4 GHz | |
| Wi-Fi access point IEEE 802.15.42.4 GHz | |
| Wireless IEEE 802.15.4 even/odd or none parity 1.2...115.2 kbit/s | |
| Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s | |
| Communication port protocol | Modbus TCP |
| DHCP | |
| HTTPS | |
| NTP/SNTP | |
| IPv4 | |
| IPv6 | |
| TCP/IP | |
| Communication port support | 2 RJ45 ETHERNET |
| Screw terminal block RS485 | |
| Number of server device(s) | 32 Modbus RTU product(s) |
| 128 Modbus TCP/IP product(s) | |
| 40 wireless (IEEE 802.15.4) product(s) - mixed | |
| 85 wireless (IEEE 802.15.4) product(s) - depending on configuration | |
| Number of devices | 64 Modbus TCP/IP |
| Memory capacity | HW V2: 32 GB eMMC |
| HW V1: 512 MB NAND | |
| Number of inputs | 0 |
| Connections - terminals | Power supply screw terminal block top) 0.002…0.004 in² (1.5…2.5 mm²) |
| Communication screw terminal block bottom) 0.0002…0.002 in² (0.14…1.5 mm²) | |
| Tightening torque | Power supply: 5.3 lbf.in (0.6 N.m) |
| Communication: 2.21 lbf.in (0.25 N.m) | |
| Wire stripping length | Power supply: 0.3 in (7 mm) |
| Communication: 0.3 in (7 mm) | |
| Number of connectors | HW V2: 2 screw connector for Wi-Fi and IEEE 802.15.4 |
| HW V1: 1 screw connector for Wi-Fi | |
| Connector type | HW V2: connector(s)1 x RP-SMA Wi-Fi for antenna bottom |
| HW V2: connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top | |
| HW V1: connector(s)1 x RP-SMA Wi-Fi for antenna bottom | |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Product Certifications | CE |
| cULus | |
| CB | |
| RCM | |
| UKCA | |
| FCC | |
| IC | |
| DNV Marine | |
| ANSI RF | |
| IACS E10 | |
| Standards | IEC 61010 |
| IEC 61010-1 | |
| IEC 61010-2-201 | |
| UL 61010 | |
| UL 61010-1 | |
| UL 61010-2-201 | |
| EN 61010-1 | |
| EN 61010-2-201 | |
| CAN/CSA C22.2 No. 61010-1-12 | |
| CAN/CSA C22.2 No. 61010-2-201 | |
| IEC 62974-1 | |
| IEC 61326-1 | |
| EN 61326-1 | |
| ETSI EN 301 489-1 | |
| ETSI EN 301 489-17 | |
| EN 301-893 | |
| EN 55032 | |
| CISPR 11 | |
| ETSI EN 300 328 | |
| IEEE 802.15.4 | |
| IEEE 802.11a/b/g/n | |
| IEEE 802.3 af/at | |
| FCC CFR 47 part 15 class A | |
| EN 62311 | |
| IEC 62311 | |
| ANSI C63.10 | |
| IEC 60945 | |
| EN 62974-1 | |
| DNVGL-GC-0339 | |
| Depth | 2.8 in (70.2 mm) |
| Height | 3.7 in (93 mm) |
| Width | 2.8 in (72 mm) |
| Net Weight | 7.09 oz (201 g) |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function Available | Embedded web page for configuration and upgrade |
| Diagnosis capabilities | |
| Diagnostic report | |
| Diagnostics on communication | |
| Energy management | |
| With integrated web server | |
| Firmware update | |
| Backup/restore configuration | |
| Configurable event | |
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network |
| Switched Ethernet network | |
| Web services | HTTPS server |
| SFTP publication (CSV / JSON) | |
| HTTPS publication (CSV / JSON) | |
| Communication Service | Device Profile for Web Services (DPWS) |
| Modbus TCP client | |
| Modbus TCP server | |
| SNTP client | |
| DHCP client | |
| RSTP | |
| Commissioning interface | EcoStruxure Power Commission desktop |
| EcoStruxure Power Commission Mobile (through Wi-Fi Access point) | |
| EcoStruxure Power Commission web (for third party device integration) | |
| Web page | |
| Realtime clock | With RTC-battery set |
| With user calibration | |
| Time synchronisation protocol | NTP |
| SNTP | |
| Range compatibility | EcoStruxure Facility Expert |
| EcoStruxure Building Operation | |
| EcoStruxure Power Operation | |
| EcoStruxure Power Monitoring Expert | |
| EcoStruxure Asset Advisor | |
| EcoStruxure Energy Hub | |
| EcoStruxure Resource Advisor | |
| Third party SCADA | |
| Communication interface | Modbus and wireless (IEEE802.15.4) product |
| Environment | |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 front face) |
| IP20 casing) | |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Pollution degree | 2 |
| Operating altitude | < 6561.68 ft (2000 m) |
| Ordering and shipping details | |
| Category | US10PL109785 |
| Discount Schedule | 0PL1 |
| GTIN | 3.60648E+12 |
| Returnability | Yes |
| Country of origin | IN |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | PAS600 |
| Range | Power Tags & Smart Link |
| Family | DPLVP |
| IP Degree of Protection | IP40 |
