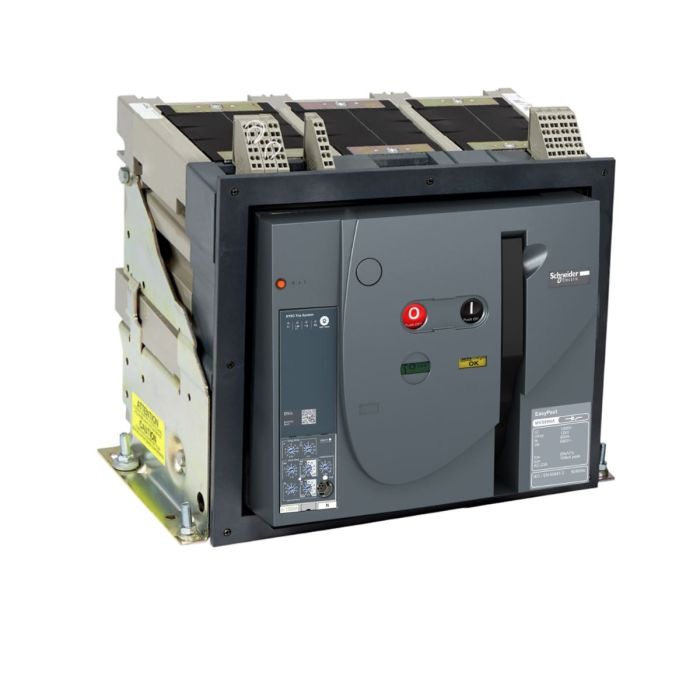

Schneider Electric EP MVS CB 2500A 65kA 3P MF ET2 fixed Manual Circuit breaker
Out of stock
SKU
MVS25H3MF2L
Special Price EGP 251,288 Regular Price EGP 418,813
Quick Overview
Range: EasyPact
Product type: Circuit breaker
Device application: Distribution
Poles: 3P
You May Also Like:
Schneider Electric Circuit Breaker , EasyPact EZCV250N , TMD, 63A, 3 Poles, 3DSpecial Price EGP 12,837 Regular Price EGP 25,673
EasyPact MVS25 is a 2500A circuit breaker. The application is suitable for 690V AC@50/60Hz. With manually operating mechanism(ACB/SD),and basic trip unit with display. It provides basic protection(LI),the breaking capacity(Icu) is 65kA@220…440V,and completed selectivity Ics=100%Icu. This version object is 3poles fixed installation mode. The final product is conformed with IEC60947-2 standard,and pollution degree 4 level as IEC60664-1. The cables can be rear-connected with supply by horizontal or vertical,attached with optional accessories inside the slots. The chassis locking in connected or disconnected,also OFF-position locking by keylock. This size is 352mm height,422mm width,297mm depth.
Specifications:
| Main | |
| Range | EasyPact |
| Product name | MVS25H |
| Device short name | MVS25H |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3P 3d |
| [In] rated current | 2500 A at 40 °C |
| Network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | H |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category B |
| Trip unit name | ET2I |
| Trip unit technology | Electronic |
| Trip unit rating | 2500 A |
| Complementary | |
| Network frequency | 50/60 Hz |
| Control type | Manually operated |
| Mounting mode | Fixed |
| Mounting support | Base plate |
| Rail | |
| Connection position | Vertical |
| Horizontal | |
| Location of connection | Rear |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| Circuit breaker CT rating | 2500 A |
| Breaking capacity | 65 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 65 kA (Ics) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA (Ics) at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 20000 cycles (with maintenance) conforming to IEC 60947-2 |
| 10000 cycles (without maintenance) conforming to IEC 60947-2 | |
| Electrical durability | Category B: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Category B: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 | |
| Connection pitch | 115 mm without spreader |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 143 kA (Icm) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 65 kA (1 s) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA (1 s) at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA (3 s) at 440/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Trip unit protection functions | LI |
| Protection type | Overload protection (long time) |
| Instantaneous short-circuit protection | |
| Fault indication | Internal fault |
| Overload | |
| Short-circuit | |
| Long time pick-up adjustment type Ir | Adjustable 9 settings |
| Long time pick-up adjustment range | 0.4...1 x In |
| Long time delay adjustment type | Adjustable 9 settings |
| [tr] long-time delay adjustment range | 0.5…24 s at 6 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Instantaneous pick-up adjustment type Ii | Adjustable 9 settings |
| Instantaneous pick-up adjustment range | 1.5...10 x Ir |
| Zone selective interlocking ZSI | With |
| Current sensor rating range | 1000/4000 A |
| Maximum breaking time | 25 ms |
| Maximum closing response time | 70 ms |
| Height | 352 mm |
| Width | 422 mm |
| Depth | 297 mm |
| Net weight | 60 kg |
| Environment | |
| Standards | IEC 60947-2 |
| Product certifications | CCC |
| IEC | |
| CCS | |
| GOST | |
| Pollution degree | 4 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -5…70 °C |
| Ambient air temperature for storage | -40…85 °C without control unit |
| -25…85 °C with control unit |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | MVS25H3MF2L |
| Device Application | Distribution |
| Range | EasyPact |
| Family | PPACB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 2500 A at 40 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP40 |
