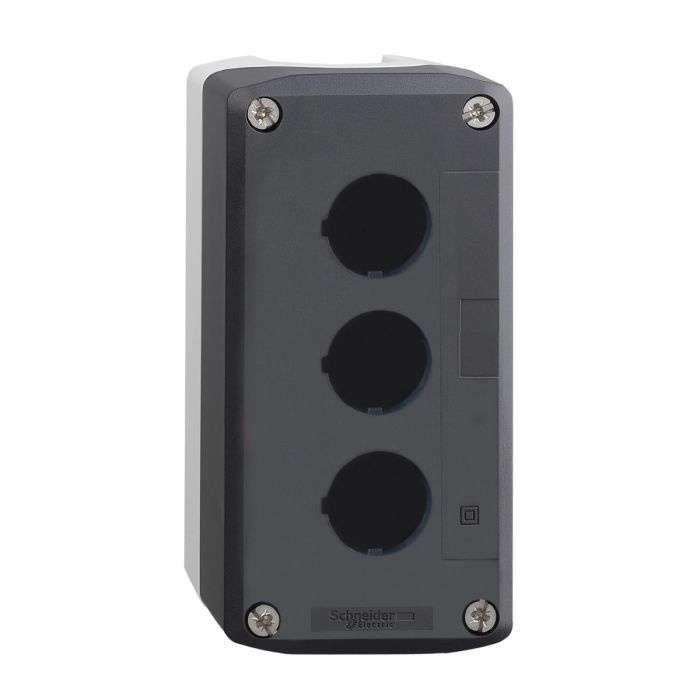

Schneider Electric Empty Control Station in Dark Grey Plastic with Light Grey Lid and 3 Cutouts
Range of product: Harmony XALE
Product type: Empty control station
Number of cut-out: 3 cut-outs
The XALD03 is an empty control station designed for industrial applications. It features a dark grey plastic base with a light grey lid and is equipped with three cutouts. This control station is part of Schneider Electric's Harmony XALD series, known for its durability and versatility in industrial environments.
Key Features:
Versatile Cutouts: The control station is equipped with three cutouts, providing you with flexibility to install a variety of control and signaling components such as pushbuttons, indicator lights, and selector switches.
Robust Construction: Built to withstand tough industrial conditions, this control station offers reliability and longevity.
Custom Configuration: It comes as an empty enclosure, allowing you to customize it with specific control components to meet your application requirements.
Color Scheme: The dark grey base and light grey lid are standard color choices for industrial control stations.
Specifications
| Main | |
| Range of product | Harmony XALD |
| Product or component type | Empty control station |
| device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Cable entry | 2 knock-outs for cable entry, clamping capacity: 14 mm |
| 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| Complementary | |
| Assembly style | For customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 3 |
| Net weight | 0.238 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block | Rear mounting |
| Front mounting | |
| Electrical composition code | SF1 |
| MF2 | |
| PF2 | |
| PF1 | |
| MR1 | |
| MF1 | |
| SF2 | |
| SR1 | |
| SR2 | |
| PR1 | |
| Main group | 3 cut-outs |
| Group of product | Standard grey |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK03 conforming to IEC 62262 |
| standards | IEC 60947-1 |
| CSA C22.2 No 14 | |
| UL 508 | |
| IEC 60947-5-5 | |
| IEC 60947-5-1 | |
| IEC 60947-5-4 | |
| JIS C8201-5-1 | |
| JIS C8201-1 | |
| Weight | 0.238000 |
|---|---|
| Brand | Schneider Electric |
| Model | XALD03 |
| Color | Gray |
| Range | ControlStations |
| Family | IDSIG |
