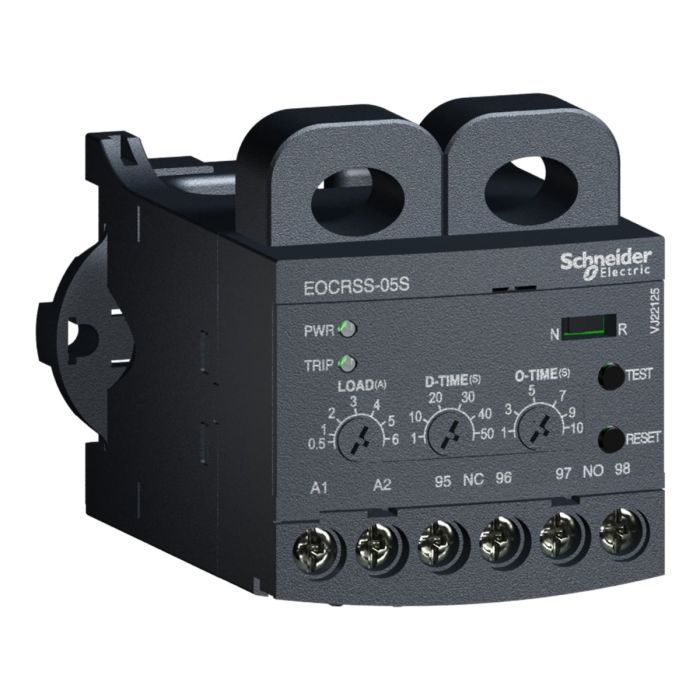

Name: Schneider Electric Electronic overcurrent relay - 0.5..6 A - 220 V AC (EOCRSS-05S)
Brand: Gila Electric
SKU: EOCRSS-05S
Price: 2867.00 EGP
Availability: InStock

Details

The Schneider Electric EOCRSS-05S Electronic Overcurrent Relay is a versatile protection device designed to safeguard motors and electrical systems from overcurrent conditions. With a current range of 0.5-6 A and compatibility with 220 V AC, this electronic relay is a reliable solution for a wide range of applications.

Specifications:


Main
Range of product	EOCR
device short name	EOCR-3D420
Product or component type	Protection relay
Protection type	Overload, In > OC setting
	Sensitivity to phase loss
	Sensitivity to phase reverse
	Locked rotor, In > 3 times OC setting
	Phase unbalance, 50 %
Product specific application	Overcurrent protection
Analogue output range	4...20 mA
Network type	AC
Network frequency	50...60 Hz
protection ajustment range	0.5…10 A
Tripping threshold	0.5...6 A
Complementary
[Us] rated supply voltage	220 V AC
Mounting support	35 mm DIN rail
	Panel
Contacts type and composition	1 NO + 1 NC (OL)
Short-circuit and overload protection	By 4 A gG fuse
[Ue] rated operational voltage	600 V AC 50...60 Hz for power circuit conforming to UL
	690 V AC 50...60 Hz for power circuit conforming to CSA
	690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-4-1
Reset	Manual reset
	Electrical 0…1 s by interruption of power supply
Time delay type	O-Time: 0.3, 1...30 s, off (definite)
	D-Time: 1...120 s, off (definite)
	O-Time: 1...30 class (inverse)
	D-Time: 0...120 s (inverse)
Display type	7 segments LED
power consumption per relay	3 W
Connections - terminals	Control circuit: cable 2 x 1…1.5 mm²flexible with cable end - M3
	Control circuit: cable 2 x 1…1.5 mm²flexible without cable end - M3
	Control circuit: cable 1 x 1…2.5 mm²flexible with cable end - M3
	Control circuit: cable 1 x 1…2.5 mm²flexible without cable end - M3
Tightening torque	Control circuit: 0.8...1.2 N.m on cable, 4.7 mm
height	71 mm
Width	70 mm
Depth	68 mm
Net weight	0.325 kg
Environment
standards	IEC 60947-4-1
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C conforming to IEC 60947-4-1
Ambient air temperature for storage	-30…80 °C
Operating altitude	2000 m
Fire resistance	650 °C conforming to IEC 60695-2-12
	960 °C conforming to UL 94
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-7
Vibration resistance	4 gn on panel mounting conforming to IEC 60068-2-6
	2 gn on 35 mm DIN rail conforming to IEC 60068-2-6
Dielectric strength	2 kV 50...60 Hz in between case and circuit conforming to IEC 60255-5
	1 kV 50...60 Hz in between contact conforming to IEC 60255-5
	2 kV 50...60 Hz in between circuit conforming to IEC 60255-5
Surge withstand	6 kV conforming to IEC 61000-4-5
Electromagnetic compatibility	Resistance to radiated electromagnetic fields: 10 V/m level 3 conforming to IEC 61000-4-3
	Resistance to electrostatic discharge: 8 kV air, 6 kV contact conforming to IEC 61000-4-2
	Resistance to fast transient: 2 kV conforming to IEC 61000-4-4
	Conducted RF disturbances: 10 V conforming to EN 61000-4-6
	Conducted RF disturbances: class A conforming to EN 55011
[Ith] conventional free air thermal current	5 A for control circuit
Permissible current	250 V, 5 A AC

More Information

More Information
Weight	0.325000
Brand	Schneider Electric
Model	EOCRSS-05S
Depth [cm]	6.8
Width [cm]	7
Height [cm]	7.1
Range	EOCR
Family	PPCTR
