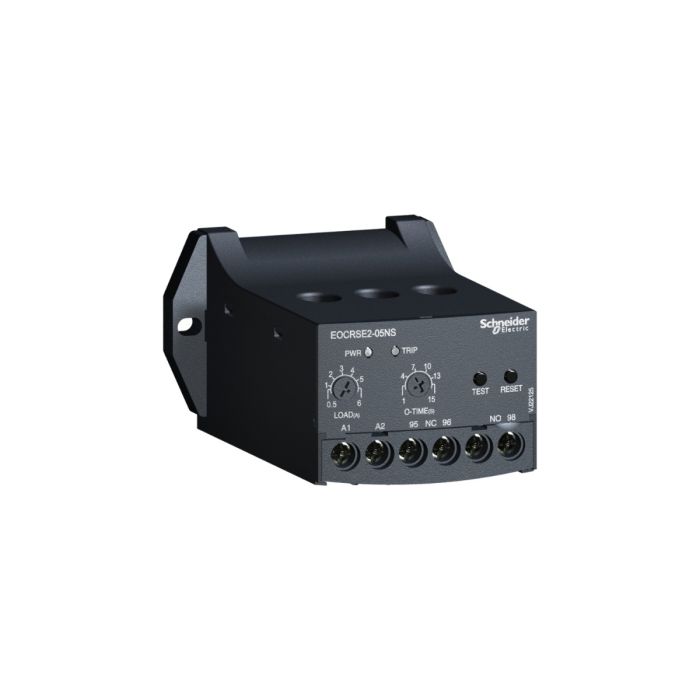

Schneider Electric, Electronic overcurrent relay - 0.5..6 A - 220 V AC (EOCRSE2-60NS)
Product or component type: Protection relay
Product specific application: Overcurrent protection
Network frequency: 50...60 Hz
The Schneider Electric EOCRSE2-60NS Electronic Overcurrent Relay is a versatile protection device designed to safeguard motors and electrical systems from overcurrent conditions. With a current range of 0.5-6 A and compatibility with 220 V AC, this electronic relay is a reliable solution for a wide range of applications.
Key Features:
Overcurrent Protection: This relay provides essential overcurrent protection, preventing damage to motors and equipment caused by excessive current flow.
Wide Current Range: With a current range of 0.5-6 A, it's suitable for various motor sizes and applications.
Digital Display: The relay features a digital display for easy monitoring and setup, enhancing user convenience.
Quick Response: It offers a rapid response to overcurrent conditions, minimizing downtime and potential damage.
Product Specifications:
Rated Current Range: 0.5-6 A
Voltage Compatibility: 220 V AC
Ensure the safety and efficiency of your electrical systems with the Schneider Electric EOCRSE2-60NS Electronic Overcurrent Relay.
| Specifications | |
Main | |
| Range of product | EOCR |
| device short name | EOCR-3D420 |
| Product or component type | Protection relay |
| Protection type | Overload, In > OC setting |
| Sensitivity to phase loss | |
| Sensitivity to phase reverse | |
| Locked rotor, In > 3 times OC setting | |
| Phase unbalance, 50 % | |
| Product specific application | Overcurrent protection |
| Analogue output range | 4...20 mA |
| Network type | AC |
| Network frequency | 50...60 Hz |
| protection ajustment range | 0.5…10 A |
| Tripping threshold | 0.5...6 A |
| Complementary | |
| [Us] rated supply voltage | 220 V AC |
| Mounting support | 35 mm DIN rail |
| Panel | |
| Contacts type and composition | 1 NO + 1 NC (OL) |
| Short-circuit and overload protection | By 4 A gG fuse |
| [Ue] rated operational voltage | 600 V AC 50...60 Hz for power circuit conforming to UL |
| 690 V AC 50...60 Hz for power circuit conforming to CSA | |
| 690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-4-1 |
| Reset | Manual reset |
| Electrical 0…1 s by interruption of power supply | |
| Time delay type | O-Time: 0.3, 1...30 s, off (definite) |
| D-Time: 1...120 s, off (definite) | |
| O-Time: 1...30 class (inverse) | |
| D-Time: 0...120 s (inverse) | |
| Display type | 7 segments LED |
| power consumption per relay | 3 W |
| Connections - terminals | Control circuit: cable 2 x 1…1.5 mm²flexible with cable end - M3 |
| Control circuit: cable 2 x 1…1.5 mm²flexible without cable end - M3 | |
| Control circuit: cable 1 x 1…2.5 mm²flexible with cable end - M3 | |
| Control circuit: cable 1 x 1…2.5 mm²flexible without cable end - M3 | |
| Tightening torque | Control circuit: 0.8...1.2 N.m on cable, 4.7 mm |
| height | 71 mm |
| Width | 70 mm |
| Depth | 68 mm |
| Net weight | 0.325 kg |
| Environment | |
| standards | IEC 60947-4-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -30…80 °C |
| Operating altitude | 2000 m |
| Fire resistance | 650 °C conforming to IEC 60695-2-12 |
| 960 °C conforming to UL 94 | |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-7 |
| Vibration resistance | 4 gn on panel mounting conforming to IEC 60068-2-6 |
| 2 gn on 35 mm DIN rail conforming to IEC 60068-2-6 | |
| Dielectric strength | 2 kV 50...60 Hz in between case and circuit conforming to IEC 60255-5 |
| 1 kV 50...60 Hz in between contact conforming to IEC 60255-5 | |
| 2 kV 50...60 Hz in between circuit conforming to IEC 60255-5 | |
| Surge withstand | 6 kV conforming to IEC 61000-4-5 |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields: 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: 8 kV air, 6 kV contact conforming to IEC 61000-4-2 | |
| Resistance to fast transient: 2 kV conforming to IEC 61000-4-4 | |
| Conducted RF disturbances: 10 V conforming to EN 61000-4-6 | |
| Conducted RF disturbances: class A conforming to EN 55011 | |
| [Ith] conventional free air thermal current | 5 A for control circuit |
| Permissible current | 250 V, 5 A AC |
| Weight | 0.325000 |
|---|---|
| Brand | Schneider Electric |
| Model | EOCRSE2-60NS |
| Depth [cm] | 6.8 |
| Width [cm] | 7 |
| Height [cm] | 7.1 |
| Range | EOCR |
| Family | PPCTR |
