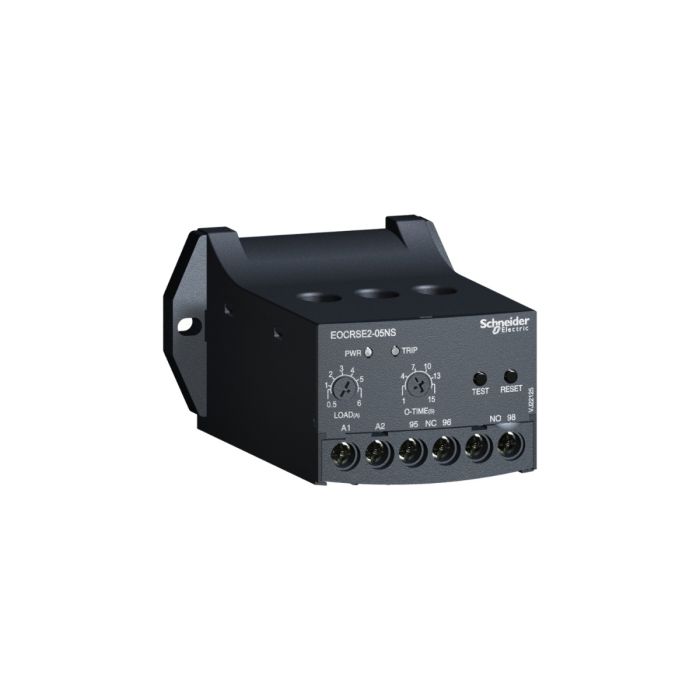

Schneider Electric, Electronic overcurrent relay - 0.5..6 A - 220 V AC (EOCRSE2-05NS)
Product or component type: Protection relay
Product specific application: Overcurrent protection
Network frequency: 50...60 Hz
The Schneider Electric EOCRSE2-05NS Electronic Overcurrent Relay is a versatile and precise device designed to safeguard your electrical circuits and equipment. With a current rating ranging from 0.5A to 6A and compatibility with 220V AC, this relay offers effective protection against overcurrent and short circuits. It's a reliable solution for a wide range of applications, providing rapid response and ensuring the uninterrupted operation of your electrical systems.
Key Features:
Wide Current Range: Adjustable current settings from 0.5A to 6A provide adaptability to various applications.
Overcurrent Protection: Protects circuits and equipment from damage due to overcurrent and short circuits.
220V AC Compatibility: Works seamlessly with 220V AC power sources.
Rapid Response: Swift reaction to overcurrent events, reducing downtime and potential damage.
Product Specifications:
Current Range: 0.5-6A
Voltage Compatibility: 220V AC
The Schneider Electric EOCRSE2-05NS Electronic Overcurrent Relay is an essential component for safeguarding your electrical systems. Whether you need protection for motors, industrial machinery, or other equipment, this relay ensures the reliable performance and security of your circuits.
| Specifications | |
Main | |
| Range of product | EOCR |
| device short name | EOCR-3D420 |
| Product or component type | Protection relay |
| Protection type | Overload, In > OC setting |
| Sensitivity to phase loss | |
| Sensitivity to phase reverse | |
| Locked rotor, In > 3 times OC setting | |
| Phase unbalance, 50 % | |
| Product specific application | Overcurrent protection |
| Analogue output range | 4...20 mA |
| Network type | AC |
| Network frequency | 50...60 Hz |
| protection ajustment range | 0.5…10 A |
| Tripping threshold | 0.5...6 A |
| Complementary | |
| [Us] rated supply voltage | 220 V AC |
| Mounting support | 35 mm DIN rail |
| Panel | |
| Contacts type and composition | 1 NO + 1 NC (OL) |
| Short-circuit and overload protection | By 4 A gG fuse |
| [Ue] rated operational voltage | 600 V AC 50...60 Hz for power circuit conforming to UL |
| 690 V AC 50...60 Hz for power circuit conforming to CSA | |
| 690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-4-1 |
| Reset | Manual reset |
| Electrical 0…1 s by interruption of power supply | |
| Time delay type | O-Time: 0.3, 1...30 s, off (definite) |
| D-Time: 1...120 s, off (definite) | |
| O-Time: 1...30 class (inverse) | |
| D-Time: 0...120 s (inverse) | |
| Display type | 7 segments LED |
| power consumption per relay | 3 W |
| Connections - terminals | Control circuit: cable 2 x 1…1.5 mm²flexible with cable end - M3 |
| Control circuit: cable 2 x 1…1.5 mm²flexible without cable end - M3 | |
| Control circuit: cable 1 x 1…2.5 mm²flexible with cable end - M3 | |
| Control circuit: cable 1 x 1…2.5 mm²flexible without cable end - M3 | |
| Tightening torque | Control circuit: 0.8...1.2 N.m on cable, 4.7 mm |
| height | 71 mm |
| Width | 70 mm |
| Depth | 68 mm |
| Net weight | 0.325 kg |
| Environment | |
| standards | IEC 60947-4-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -30…80 °C |
| Operating altitude | 2000 m |
| Fire resistance | 650 °C conforming to IEC 60695-2-12 |
| 960 °C conforming to UL 94 | |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-7 |
| Vibration resistance | 4 gn on panel mounting conforming to IEC 60068-2-6 |
| 2 gn on 35 mm DIN rail conforming to IEC 60068-2-6 | |
| Dielectric strength | 2 kV 50...60 Hz in between case and circuit conforming to IEC 60255-5 |
| 1 kV 50...60 Hz in between contact conforming to IEC 60255-5 | |
| 2 kV 50...60 Hz in between circuit conforming to IEC 60255-5 | |
| Surge withstand | 6 kV conforming to IEC 61000-4-5 |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields: 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: 8 kV air, 6 kV contact conforming to IEC 61000-4-2 | |
| Resistance to fast transient: 2 kV conforming to IEC 61000-4-4 | |
| Conducted RF disturbances: 10 V conforming to EN 61000-4-6 | |
| Conducted RF disturbances: class A conforming to EN 55011 | |
| [Ith] conventional free air thermal current | 5 A for control circuit |
| Permissible current | 250 V, 5 A AC |
| Weight | 0.325000 |
|---|---|
| Brand | Schneider Electric |
| Model | EOCRSE2-05NS |
| Depth [cm] | 6.8 |
| Width [cm] | 7 |
| Height [cm] | 7.1 |
| Range | EOCR |
| Family | PPCTR |
