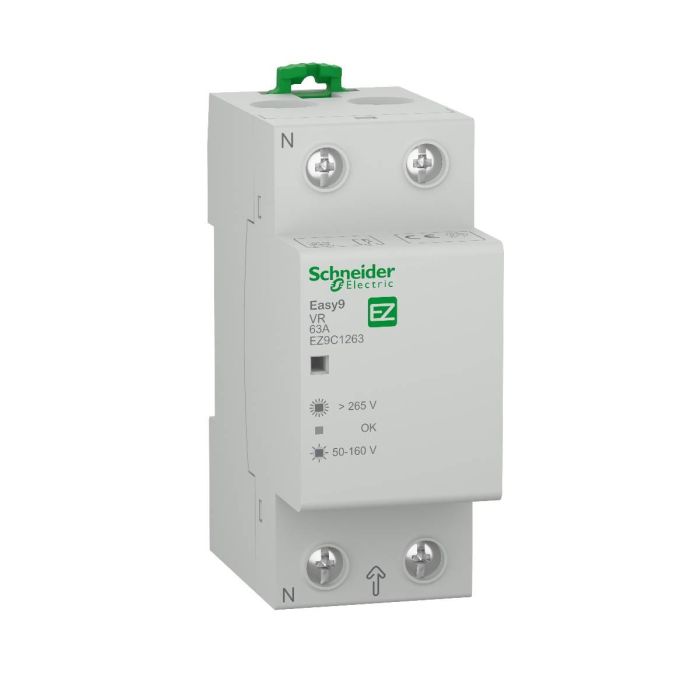

Schneider Electric Easy9 EZ9C1263, 2P 63A Voltage Relay, Home Protection Device
Range: Easy9
Product Type: Relay
Device Type: Voltage relay
Poles: 2P (Double Pole)
This Easy9 product is a voltage control relay.|It has a 1P+Ns with 63A rated current.|The overvoltage tripping is 275VAC and 195VAC for undervoltage tripping.|The Ue rated operational voltage is 440VAC.|The Ui rated insulation voltage is 500VAC.|It has a Uimp rated impulse withstand voltage of 4kV. The operating frequency is 50Hz.|It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm.|The dimensions are (W) 36mm x (H) 84.8mm x (D) 68mm. The color is light grey (RAL7035).|According to IEC 60529 standards, the degree of protection is IP20 or IP40 in modular enclosure.|The operating temperature is -25°C to 55 °C. The storage temperature is -40°C to 80°C.|
Specifications:
Rated Voltage | Typically designed for standard electrical networks |
| Current Rating | 63A |
| Response Time | Fast reaction to voltage changes |
| Electrical Lifespan | Long operational life for reliability |
| Mechanical Durability | Robust design suitable for frequent switching |
| Protection Rating | IP20 (Internal protection) |
| Operating Temperature Range | -5°C to +40°C |
| Certifications & Compliance | IEC standards, CE certified |
| Ask ChatGPT |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | EZ9C1263 |
| Color | White |
| Range | Auxillaries |
| Family | HDCFD |
| Type | Rotary handle |
| Poles | 2P |
| [In] Rated Current | 63A |
| IP Degree of Protection | IP20 |
