Schneider Electric Discrete I/O Extension Module, 6 I O, 24 V Dc, For Zelio Logic
Out of stock
SKU
SR3XT61BD
Special Price EGP 3,711 Regular Price EGP 6,746
Quick Overview
Range: Zelio Logic
Product Type: Discrete I/O extension module
Number or control scheme lines: 120 ladder
Backup time: 10 years 77 °F (25 °C)
You May Also Like:
Schneider Electric Modular smart relay Zelio Logic - “discovery” pack - 26 I O - 24Special Price EGP 21,249 Regular Price EGP 38,635
Schneider Electric Modular Smart Relay Zelio Logic - 26 I/O, 24 V DC, Clock DisplaySpecial Price EGP 17,543 Regular Price EGP 31,897
Schneider Electric Discrete I/O Extension Module for Zelio Logic SR2/SR3, 10 I/O, 24V DCSpecial Price EGP 4,630 Regular Price EGP 8,418
Schneider Electric Discrete I/O Extension Module for Zelio Logic, 14 I/O, 24V ACSpecial Price EGP 6,461 Regular Price EGP 11,748
Schneider Electric Discrete I/O Extension Module, 14 I/O, 24V DC, for Zelio LogicSpecial Price EGP 6,461 Regular Price EGP 11,748
Schneider Electric Zelio Logic Compact Smart Relay, 10 I/O, 100-240V AC/DC, Clock, DisplaySpecial Price EGP 3,711 Regular Price EGP 6,746

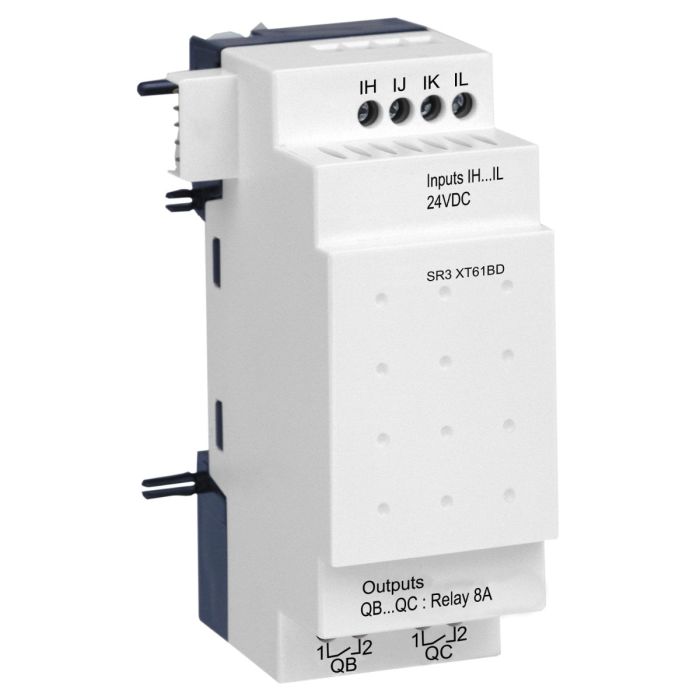

This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts direct current, has 6 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications:
| Main | |
| Range of Product | Zelio Logic |
| Product or Component Type | Discrete I/O extension module |
| Complementary | |
| Number or control scheme lines | 120 ladder |
| Cycle time | 6…90 ms |
| Backup time | 10 years 77 °F (25 °C) |
| Clock drift | 12 min/year 32…131 °F (0…55 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Reverse polarity protection | With |
| Discrete input number | 4 IEC 61131-2 Type 1 |
| Discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz discrete input |
| Voltage state 1 guaranteed | >= 15 V I1...IA and IH...IR discrete input circuit |
| >= 15 V IB...IG used as discrete input circuit | |
| Voltage state 0 guaranteed | <= 5 V I1...IA and IH...IR discrete input circuit |
| <= 5 V IB...IG used as discrete input circuit | |
| Current state 1 guaranteed | >= 1.2 mA IB...IG used as discrete input circuit) |
| >= 2.2 mA I1...IA and IH...IR discrete input circuit) | |
| Current state 0 guaranteed | <= 0.5 mA IB...IG used as discrete input circuit) |
| <= 0.75 mA I1...IA and IH...IR discrete input circuit) | |
| Input compatibility | 3-wire proximity sensors PNP discrete input |
| Input impedance | 12 kOhm IB...IG used as discrete input circuit |
| 7.4 kOhm I1...IA and IH...IR discrete input circuit | |
| Number of Outputs | 2 relay |
| Output voltage limits | 24...250 V AC relay output) |
| 5...30 V DC relay output) | |
| Contacts type and composition | NO relay output |
| Output thermal current | 8 A for all 2 outputs relay output |
| Electrical durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 |
| AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 | |
| DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 | |
| DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 | |
| Switching capacity in mA | >= 10 mA 12 V relay output) |
| Operating rate in Hz | 0.1 Hz at Ie)relay output |
| 10 Hz no load)relay output | |
| Mechanical durability | 10000000 cycles relay output |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 10 ms from state 0 to state 1)relay output |
| 5 ms from state 1 to state 0)relay output | |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
| Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end | |
| Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid | |
| Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid | |
| Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid | |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net Weight | 0.276 lb(US) (0.125 kg) |
| Environment | |
| Product Certifications | GL |
| C-tick | |
| GOST | |
| UL | |
| CSA | |
| Standards | IEC 61000-4-6 level 3 |
| IEC 61000-4-3 | |
| IEC 61000-4-4 level 3 | |
| IEC 61000-4-5 | |
| IEC 61000-4-12 | |
| IEC 61000-4-11 | |
| IEC 60068-2-6 Fc | |
| IEC 61000-4-2 level 3 | |
| IEC 60068-2-27 Ea | |
| IP degree of protection | IP20 IEC 60529 terminal block) |
| IP40 IEC 60529 front panel) | |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 |
| EMC directive conforming to IEC 61000-6-3 | |
| EMC directive conforming to IEC 61000-6-4 | |
| EMC directive conforming to IEC 61131-2 zone B | |
| Low voltage directive conforming to IEC 61131-2 | |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 |
| -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 | |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000.0000000000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Ordering and shipping details | |
| Category | US1000I22378 |
| Discount Schedule | 000I |
| GTIN | 3.38911E+12 |
| Returnability | Yes |
| Country of origin | FR |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | SR3XT61BD |
| Range | SR3 |
| Family | IDMST |
| IP Degree of Protection | IP20 |
