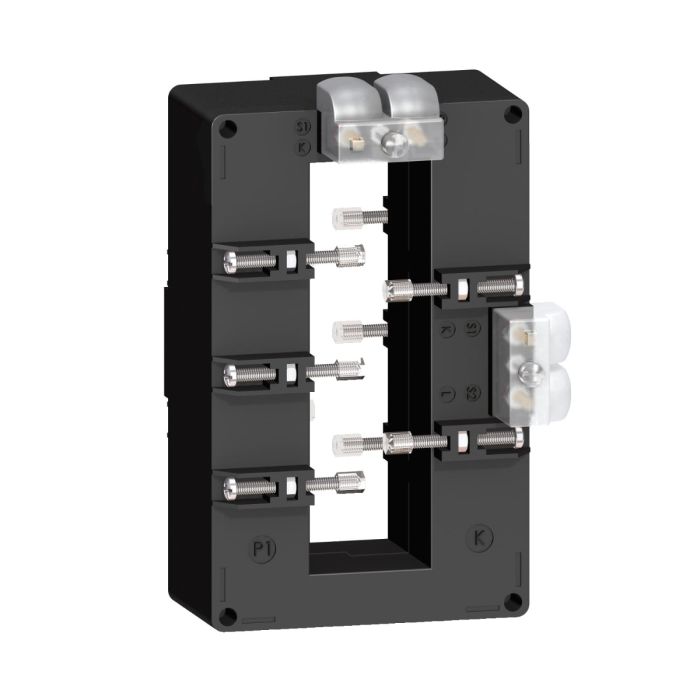

Schneider Electric Current Transformer Tropicalised 2000 5 Double Output For Bars 38X127
In stock
SKU
METSECT5DB200
Special Price EGP 5,337 Regular Price EGP 7,022
Schneider Electric Current Transformer Tropicalised 2000 5 Double Output For Bars 38X127 is available to buy in increments of 1
Quick Overview
Range: PowerLogic
Product type: Current transformer
Secondary current: 5 A
Mounting mode: Insulated locking screw
This current transformer, tropicalised for busbar, has a line rated current of 2000 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.
Specifications:
| Main | |
| Range | PowerLogic |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5AM |
| Accuracy class | Class 0.5 at 15 VA |
| Class 1 at 20 VA | |
| [In] rated current | 2000 A |
| Complementary | |
| Current transformer type | Tropicalised for busbar |
| Solid core | |
| Current transformer ratio | 2000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Inner: 38 mm |
| Outside: 99 mm | |
| Height | Inner: 127 mm |
| Outside: 160 mm | |
| Depth | Frame : 40 mm |
| Total : 78.4 mm | |
| Net weight | 0.91 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 127 x 38 |
| Sealing | With |
| Environment | |
| Standards | VDE 0414 |
| IEC 61869-2 | |
| Product certifications | CE |
| EAC | |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…50 °C |
| Weight | 12.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | METSECT5DB200 |
| Range | PowerLogic |
| Type | Current transformer |
| [In] Rated Current | 2000 A |
| IP Degree of Protection | IP20 |
