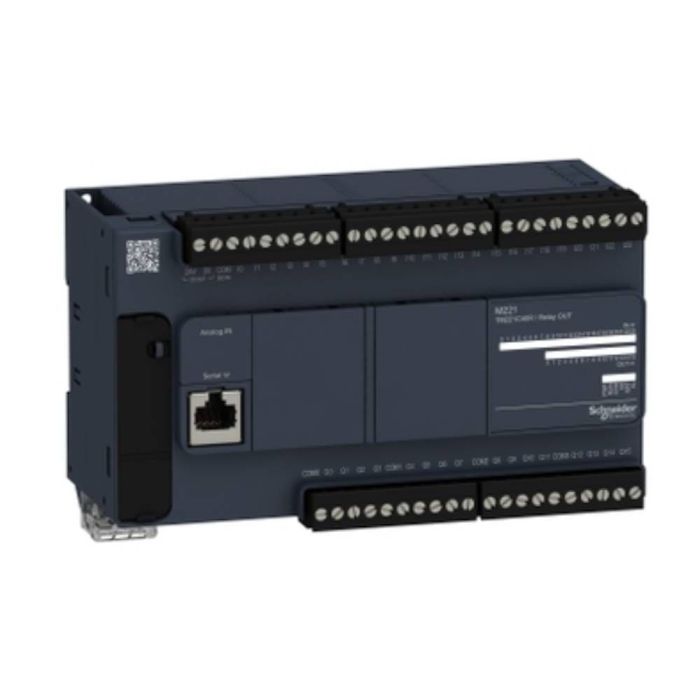

Schneider Electric Controller M221 40 IO Relay

Be the first to review this product
In stock
SKU
TM221C40R
Schneider Electric
Special Price EGP 39,488 Regular Price EGP 71,797
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Schneider Electric Controller M221 40 IO Relay is available to buy in increments of 1
Quick Overview

Range: Modicon M221
Product type: Logic controller
Discrete output number: 16 relay
Discrete output current: 2 A

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete inputs and 16 relay outputs with 10bit input resolution, normally opened relay output.

Specifications:

Main
Range of productModicon M221
Product or component typeLogic controller
[Us] rated supply voltage100...240 V AC
Discrete input number24, discrete input conforming to IEC 61131-2 Type 1
Analogue input number2 at 0...10 V
Discrete output typeRelay normally open
Discrete output number16 relay
Discrete output voltage5...125 V DC
 5...250 V AC
Discrete output current2:00 AM
Complementary
Discrete I/O number40
Maximum number of I/O expansion module7 (local I/O-Architecture)
 14 (remote I/O-Architecture)
Supply voltage limits85…264 V
Network frequency50/60 Hz
Inrush current40 A
Maximum power consumption in VA67 VA at 100...240 V with max number of I/O expansion module
 37 VA at 100...240 V without I/O expansion module
Power supply output current0.52 A 5 V for expansion bus
 0.24 A 24 V for expansion bus
Discrete input logicSink or source (positive/negative)
Discrete input voltage24 V
Discrete input voltage typeDC
Analogue input resolution10 bits
LSB value10 mV
Conversion time1 ms per channel + 1 controller cycle time for analogue input analog input
Permitted overload on inputs+/- 30 V DC for 5 min (maximum) for analog input
 +/- 13 V DC (permanent) for analog input
Voltage state 1 guaranteed>= 15 V for input
Voltage state 0 guaranteed<= 5 V for input
Discrete input current7 mA for discrete input
 5 mA for fast input
Input impedance3.4 kOhm for discrete input
 100 kOhm for analog input
 4.9 kOhm for fast input
Response time35 µs turn-off, I2...I5 terminal(s) for input
 10 ms turn-on for output
 10 ms turn-off for output
 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input
 35 µs turn-on, other terminals terminal(s) for input
 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input
 100 µs turn-off, other terminals terminal(s) for input
Configurable filtering time0 ms for input
 3 ms for input
 12 ms for input
Output voltage limits125 V DC
 277 V AC
Maximum current per output common7:00 AM
Absolute accuracy error+/- 1 % of full scale for analog input
Electrical durability100000 cycles AC-12, 120 V, 240 VA, resistive
 100000 cycles AC-12, 240 V, 480 VA, resistive
 300000 cycles AC-12, 120 V, 80 VA, resistive
 300000 cycles AC-12, 240 V, 160 VA, resistive
 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive
 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive
 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive
 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive
 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive
 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive
 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive
 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive
 100000 cycles DC-12, 24 V, 48 W, resistive
 300000 cycles DC-12, 24 V, 16 W, resistive
 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)
 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Switching frequency20 switching operations/minute with maximum load
Mechanical durability20000000 cycles for relay output
Minimum load1 mA at 5 V DC for relay output
Protection typeWithout protection at 5 A
Reset time1 s
Memory capacity256 kB for user application and data RAM with 10000 instructions
 256 kB for internal variables RAM
Data backed up256 kB built-in flash memory for backup of application and data
Data storage equipment2 GB SD card (optional)
Battery typeBR2032 or CR2032X lithium non-rechargeable
Backup time1 year at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction0.3 ms for event and periodic task
Execution time per instruction0.2 µs Boolean
Exct time for event task60 µs response time
Maximum size of object areas512 %M memory bits
 512 %KW constant words
 8000 %MW memory words
 255 %C counters
 255 %TM timers
Realtime clockWith
Clock drift<= 30 s/month at 25 °C
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Counting input number4 fast input (HSC mode) at 100 kHz 32 bits
counter functionSingle phase
 Pulse/direction
 A/B
Integrated connection typeUSB port with mini B USB 2.0 connector
 Non isolated serial link serial 1 with RJ45 connector and RS485 interface
 Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface
Supply(serial)serial link supply: 5 V, <200 mA
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
 480 Mbit/s for USB
Communication port protocolUSB port: USB - SoMachine-Network
 Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling1 LED (green) for PWR
 1 LED (green) for RUN
 1 LED (red) for module error (ERR)
 1 LED (green) for SD card access (SD)
 1 LED (red) for BAT
 1 LED (green) for SL1
 1 LED (green) for SL2
 1 LED per channel (green) for I/O state
Electrical connectionremovable screw terminal block for inputs
 removable screw terminal block for outputs
 terminal block, 3 terminal(s) for connecting the 24 V DC power supply
 connector, 4 terminal(s) for analogue inputs
 Mini B USB 2.0 connector for a programming terminal
Maximum cable distance between devicesShielded cable: <10 m for fast input
 Unshielded cable: <30 m for output
 Unshielded cable: <30 m for digital input
 Unshielded cable: <1 m for analog input
InsulationBetween input and internal logic at 500 V AC
 Non-insulated between analogue input and internal logic
 Non-insulated between analogue inputs
 Between supply and ground at 1500 V AC
 Between sensor power supply and ground at 500 V AC
 Between input and ground at 500 V AC
 Between output and ground at 1500 V AC
 Between supply and internal logic at 2300 V AC
 Between sensor power supply and internal logic at 500 V AC
 Between output and internal logic at 2300 V AC
 Between Ethernet terminal and internal logic at 500 V AC
 Between supply and sensor power supply at 2300 V AC
MarkingCE
Sensor power supply24 V DC at 250 mA supplied by the controller
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715
 Top hat type TH35-7.5 rail conforming to IEC 60715
 plate or panel with fixing kit
Height90 mm
Depth70 mm
Width160 mm
Net weight0.456 kg
Environment
StandardsIEC 61131-2
 UL 508
 CAN/CSA C22.2 No. 213
 IACS E10
 ANSI/ISA 12-12-01
Product certificationsRCM
 LR
 cULus
 DNV-GL
 ABS
 EAC
 CE
 UKCA
 cULus HazLoc
Environmental characteristicOrdinary and hazardous location
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2
 4 kV on contact conforming to IEC 61000-4-2
Resistance to electromagnetic fields10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Resistance to magnetic fields30 A/m 50/60 Hz conforming to IEC 61000-4-8
Resistance to fast transients2 kV (power lines) conforming to IEC 61000-4-4
 2 kV (relay output) conforming to IEC 61000-4-4
 1 kV (I/O) conforming to IEC 61000-4-4
 1 kV (Ethernet line) conforming to IEC 61000-4-4
 1 kV (serial link) conforming to IEC 61000-4-4
Surge withstand2 kV power lines (AC) common mode conforming to IEC 61000-4-5
 2 kV relay output common mode conforming to IEC 61000-4-5
 1 kV I/O common mode conforming to IEC 61000-4-5
 1 kV shielded cable common mode conforming to IEC 61000-4-5
 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5
 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5
 1 kV relay output differential mode conforming to IEC 61000-4-5
 0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5
Resistance to conducted disturbances10 V 0.15...80 MHz conforming to IEC 61000-4-6
 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)
 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emissionConducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011
 Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011
 Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011
 Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011
 Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011
 Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011
 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to IEC 55011
Immunity to microbreaks10 ms
Ambient air temperature for operation-10…55 °C (horizontal installation)
 -10…35 °C (vertical installation)
Ambient air temperature for storage-25…70 °C
Relative humidity10…95 %, without condensation (in operation)
 10…95 %, without condensation (in storage)
IP degree of protectionIP20 with protective cover in place
pollution degree<= 2
Operating altitude0...2000 m
Storage altitude0…3000 m
Vibration resistance3.5 mm at 5…8.4 Hz on symmetrical rail
 3.5 mm at 5…8.4 Hz on panel mounting
 1 gn at 8.4…150 Hz on symmetrical rail
 1 gn at 8.4…150 Hz on panel mounting
Shock resistance98 m/s² for 11 ms
