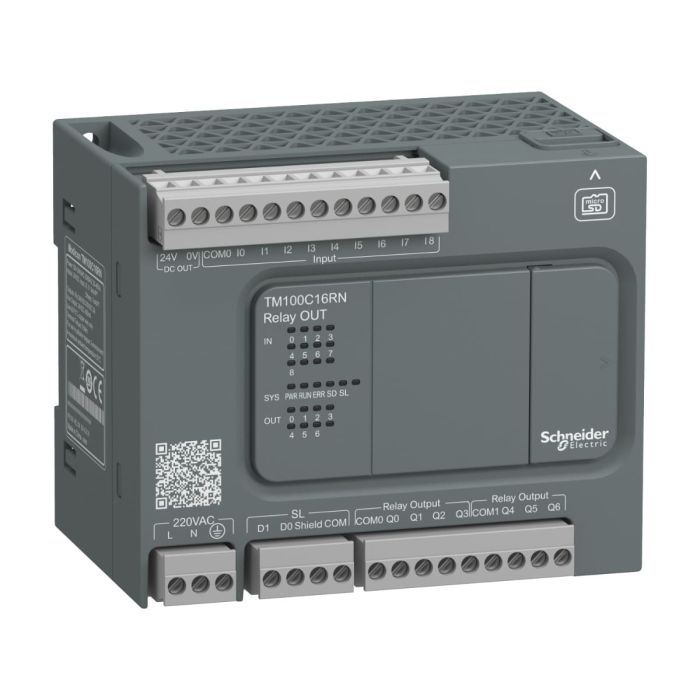

This product is part of the Easy modicon M100 range,an offer of logic controllers for simple machines up to 40 I/O. This logic controller provides 4 fast inputs,2 high speed inputs,3 regular inputs and 7 normally opened relay outputs. It is an Easy Modicon logic controller with an input voltage of 24V DC,an output voltage of 24V DC,220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are USB port with mini B USB 2.0 connector,non isolated serial link 1 and RS485 interface and non isolated serial link 2 and RS232/RS485 interface. It is a controller with an internal flash of 512KB and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.295kg. Designed for automation of small finishing,production,assembly or packaging machines. This product is certified by CE. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Cost-effective and easy solution to sequential control needs for your simple machines up to 40 I/O.

Specifications:

Main
Range of product	Easy Modicon M100
Product or component type	Logic controller
[Us] rated supply voltage	100...240 V AC
Discrete I/O number	16
Discrete input number	I2...I5: 4 fast input
	I6...I8: 3 regular input
	I0...I1: 2 high speed input
Discrete output number	7 relay
Discrete input voltage	24 V
Discrete input voltage type	DC
Discrete input current	7 mA for regular input
	7 mA for fast input
	9 mA for high speed input
Discrete output voltage	24 V DC
	220 V AC
Discrete output current	2:00 AM
Discrete output type	Relay normally open
Power consumption in VA	30…40 VA at 100...240 V AC (with max I/O)
Complementary
Supply voltage limits	85…264 V
Voltage state 1 guaranteed	>= 15 V for input
Voltage state 0 guaranteed	<= 5 V for input
Network frequency	50/60 Hz
Inrush current	50 A
Input impedance	3.3 kOhm for regular input
	3.3 kOhm for fast input
	2.81 kOhm for high speed input
Response time	10 ms turn-on, Q0...Q6 terminal(s) for relay output
	10 ms turn-off, Q0...Q6 terminal(s) for relay output
	35 µs turn-on, I2...I5 terminal(s) for fast input
	100 µs turn-off, I2...I5 terminal(s) for fast input
	5 µs turn-on, I0...I1 terminal(s) for high speed input
	5 µs turn-off, I0...I1 terminal(s) for high speed input
	35 µs turn-on, I6...I8 terminal(s) for regular input
	100 µs turn-off, I6...I8 terminal(s) for regular input
Configurable filtering time	0 ms for input
	3 ms for input
	12 ms for input
Output voltage limits	30 V DC
	250 V AC
Maximum current per output common	4 A at COM 0
	4 A at COM 1
Electrical durability	100000 cycles AC-12, 240 V, 480 VA, resistive
	100000 cycles DC-12, 24 V, 48 W, resistive
Switching frequency	0.1 Hz with maximum load
	5 Hz without maximum load
Mechanical durability	20000000 cycles for relay output
Minimum load	10 mA at 5 V DC for relay output
Memory capacity	1024 kB internal flash with 10000 instructions for backup of programs
Data storage equipment	32 GB micro SD card (optional)
Execution time for 1 KInstruction	0.3 ms for event and periodic task
Execution time per instruction	0.2 µs Boolean
Exct time for event task	60 µs response time
Regulation loop	Adjustable PID regulator up to 14 simultaneous loops
Control signal type	Quadrature (x1, x2, x4) at 60 kHz for fast input (HSC mode)
	Pulse/direction at 60 kHz for fast input (HSC mode)
	Single phase at 60 kHz for fast input (HSC mode)
	CW/CCW at 60 kHz for fast input (HSC mode)
Counting input number	2 fast input (HSC mode) at 60 kHz 32 bits
Integrated connection type	USB port with mini B USB 2.0 connector
	Non isolated serial link serial 1 with terminal block connector and RS485 interface
	Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
	1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
	12 Mbit/s for USB
Communication port protocol	USB port: USB - SoMachine-Network
	Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling	1 LED (green) for PWR
	1 LED (green) for RUN
	1 LED (red) for module error (ERR)
	1 LED (green) for SD card access (SD)
	1 LED (green) for SL1
	1 LED per channel (green) for I/O state
Electrical connection	removable screw terminal blockfor inputs
	removable screw terminal blockfor outputs
	removable screw terminal block, 4 terminal(s) for connecting the serial link1
	Mini B USB 2.0 connectorfor a programming terminal
	removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply
Maximum cable distance between devices	Shielded cable: <10 m for fast input
	Shielded cable: <10 m for high speed input
	Unshielded cable: <150 m for output
	Unshielded cable: <50 m for regular input
Insulation	Between input and internal logic at 560 V AC
	Between fast input and internal logic at 560 V AC
	Between input groups at 560 V AC
	Non-insulated between inputs
	Between output and internal logic at 1780 V AC
	Between output groups at 1780 V AC
	Between supply and internal logic at 1780 V AC
Sensor power supply	24 V DC
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715
	Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Height	90 mm
Depth	70 mm
Width	110 mm
Net weight	0.31 kg
Environment
IP degree of protection	IP20 with protective cover in place
Product certifications	CE
Standards	EN/IEC 61010-2-201
	EN/IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2
	Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
	Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3
	Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
	Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
	Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
	Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
	Magnetic field at power frequency - test level: 30 A/m (I/O) conforming to EN/IEC 61000-4-8
	Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4
	Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4
	Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4
	Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4
	1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 0.5 kV class A (power lines (DC)) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 1 kV class A (power lines (AC)) conforming to EN/IEC 61000-4-5
	1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5
	Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Shock resistance	15 gn for 11 ms
	30 gn for 6 ms
Immunity to microbreaks	10 ms
Vibration resistance	3.5 mm at 5…8.4 Hz on symmetrical rail
	1 gn at 8.4…150 Hz on symmetrical rail
	3.5 mm at 5…8.4 Hz on panel mounting
	3 gn at 8.4…150 Hz on panel mounting
Relative humidity	10…95 %, without condensation (in operation)
	10…95 %, without condensation (in storage)
Ambient air temperature for operation	0…55 °C (horizontal installation)
Ambient air temperature for storage	-25…70 °C
pollution degree	<= 2
Operating altitude	0...2000 m
Storage altitude	0…3000 m

Weight	3.000000
Brand	Schneider Electric
Model	TM100C16RN
Range	M200
Family	IDMST
Type	Logic controller
IP Degree of Protection	IP20

Schneider Electric Controller M100, 9I/7O relay, 220VAC
