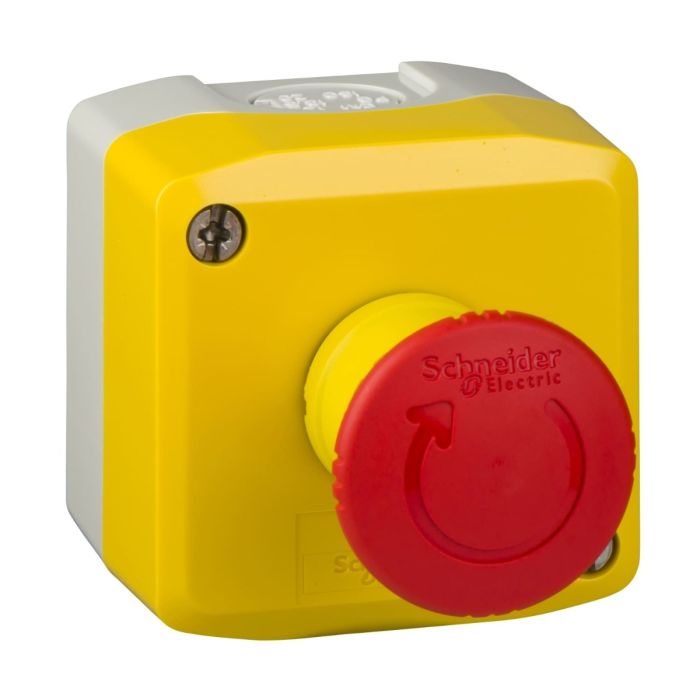

Schneider Electric Control Station, Plastic, Yellow Lid,1 Red Mushroom Push Button Ø40,Turn To Release,1 N
In stock
SKU
XALK178
Special Price EGP 1,758 Regular Price EGP 3,031
Schneider Electric Control Station, Plastic, Yellow Lid,1 Red Mushroom Push Button Ø40,Turn To Release,1 N is available to buy in increments of 1
Quick Overview
Range: Harmony XALK
Product type: Complete control station
Contact operation: Slow-break
Color: Yellow
This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines,with permanent modifications or damage to their machine body. It is designed for simple and mass production machines,textiles,packaging,handling small lifting systems,control of garage doors,rolling shutters,smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant,dust resistant,water resistant,corrosion resistant,and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K,making it ideal for operation in harsh environments.
Specifications:
| Main | |
| Range of product | Harmony XALK |
| Product or component type | Complete control station |
| Device short name | XALK |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Emergency switching off function |
| Emergency stop function | |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Operator profile | 1 mushroom head push-button |
| Operators description | Red unmarked 1 NC |
| Reset | Turn to release |
| Control station composition | 1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking |
| Contact operation | Slow-break |
| Complementary | |
| Cable entry | 1 knock-out for cable entry 0…14 mm |
| 2 knock-outs for Pg 13 cable gland and ISO M20 0…12 mm | |
| Net weight | 0.194 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) |
| 2.6 mm (NO changing electrical state) | |
| 4.3 mm (total travel) | |
| Operating force | 44 N NC + NO changing electrical state |
| Mechanical durability | 300000 cycles |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 | |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| Electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4 |
| Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4 | |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60204-1 |
| IEC 60947-1 | |
| IEC 60947-5-4 | |
| ISO 13850 | |
| JIS C 4520 | |
| IEC 60364-5-53 | |
| IEC 60947-5-5 | |
| UL 508 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XALK178 |
| Color | Yellow |
| Range | ControlStations |
| Family | IDSIG |
| Type | Complete Control Station |
| IK Degree of Protection | IK03 |
