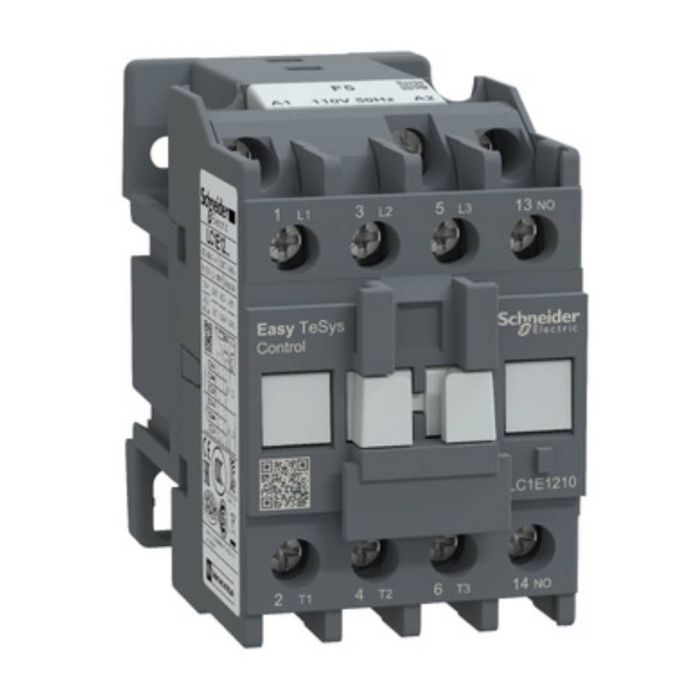

EasyPact TVS contactor 3 poles for motor applications up to 80A 45kW@440V. It provides a 220V 50/60Hz AC coil,without built-in auxiliary contacts,power and control connections by screw clamp terminals. 85mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail,No derating up to 3000m altitude. Multi-standards certified (IEC,CCC,EAC) and Green Premium compliant (RoHs/Reach)

Specifications:

Main
Range	Easy TeSys
Range of product	Easy TeSys Control
Product or component type	Contactor
Device short name	LC1E
Contactor application	Motor control
	Resistive load
Utilisation category	AC-3
	AC-3e
	AC-1
Poles description	3P
[Ue] rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current	80 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
	80 A (at <55 °C) at <= 440 V AC AC-3e for power circuit
	110 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage	220 V AC 50/60 Hz
Complementary
Motor power kW	22 kW at 220/230 V AC 50/60 Hz
	37 kW at 380/400 V AC
	45 kW at 415/440 V AC
	45 kW at 500 V AC
	45 kW at 660/690 V AC
	45 kW at 660...690 V
Pole contact composition	3 NO
[Ith] conventional free air thermal current	110 A (at 55 °C) for power circuit
Irms rated making capacity	960 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity	680 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	640 A 40 °C - 10 s for power circuit
	320 A 40 °C - 60 s for power circuit
	135 A 40 °C - 600 s for power circuit
Associated fuse rating	10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
	160 A gG at <= 690 V coordination type 1 for power circuit
Average impedance	0.8 mOhm - Ith 110 A 50 Hz for power circuit
Power dissipation per pole	5.1 W AC-3
	9.7 W AC-1
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[Uimp] rated impulse withstand voltage	6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	3000000 cycles
Electrical durability	350000 cycles AC-1
	900000 cycles AC-3
Control circuit type	AC at 50/60 Hz
Control circuit voltage limits	0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz
	0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz
Inrush power in VA	200 VA 50 Hz cos phi 0.75 (at 20 °C)
	220 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA	22 VA 60 Hz cos phi 0.3 (at 20 °C)
	20 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	6…10 W for control circuit
Operating time	20...35 ms on closing
	6...30 ms on opening
Maximum operating rate	1200 cyc/h 60 °C
Connections - terminals	Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible without cable end
	Power circuit: screw clamp terminals 2 4…16 mm² - cable stiffness: flexible without cable end
	Power circuit: screw clamp terminals 1 4…25 mm² - cable stiffness: flexible with cable end
	Power circuit: screw clamp terminals 2 4…50 mm² - cable stiffness: flexible with cable end
	Power circuit: screw clamp terminals 1 4…25 mm² - cable stiffness: solid without cable end
	Power circuit: screw clamp terminals 2 4…50 mm² - cable stiffness: solid without cable end
	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
	Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
	Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
	Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Tightening torque	Control circuit: 1.2 N.m
	Power circuit: 12 N.m
Auxiliary contact composition	1 NO + 1 NC
Minimum switching voltage	17 V for control circuit
Minimum switching current	5 mA for control circuit
Insulation resistance	> 10 MOhm for control circuit
Non-overlap time	1.5 ms on energisation guaranteed between NC and NO contact
	1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support	DIN rail
	Plate
Environment
Standards	IEC 60947-4-1
	IEC 60947-5-1
	IEC 60947-1
Product certifications	EAC
	CE
IP degree of protection	IP2X conforming to IEC 60529
Protective treatment	TH (pollution degree 3) conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-20…70 °C at Uc
	-60…80 °C storage
	-5…55 °C operation
Operating altitude	3000 m without derating
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	Vibrations contactor open (1.5 Gn, 5...300 Hz)
	Vibrations contactor closed (3 Gn, 5...300 Hz)
	Shocks contactor open (6 Gn for 11 ms)
	Shocks contactor closed (7 Gn for 11 ms)
Height	127 mm
Width	85 mm
Depth	121 mm
Net weight	1.52 kg

More Information

More Information
Weight	3.000000
Brand	Schneider Electric
Model	LC1E80M7
Range	Easy TeSys
Family	PPCTR
Type	Contactor
IP Degree of Protection	IP2X
