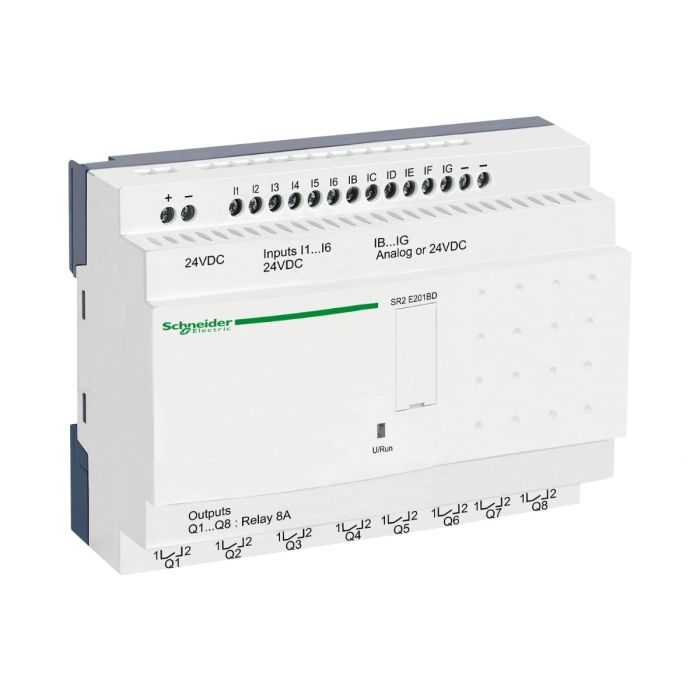

Schneider Electric Compact Smart Relay Zelio Logic, 20 I O - 24 V DC, Clock, No Display

This product is part of the Zelio Logic range,an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with clock and without display. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use,Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 24V DC,a maximum supply current of 100mA (without extension) and a power consumption of 6W without extension. It is an IP20 and IP40 rated product. It weighs 0.35kg. This product meets EN/IEC 61000-4-4 level 3,EN/IEC 61000-4-6 level 3,EN/IEC 61000-4-3,EN/IEC 61000-4-12,EN/IEC 61000-4-5,EN/IEC 61000-4-11,EN/IEC 61000-4-2 level 3,EN/IEC 60068-2-27 Ea and EN/IEC 60068-2-6 Fc standards. Simple to select,install and program,Zelio Logic is suitable for all your applications. Flexible,it offers you the choice of 2 ranges,compact or modular,extendable and 2 programming languages (FBD or LADDER). Easy to use,Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Specifications:
