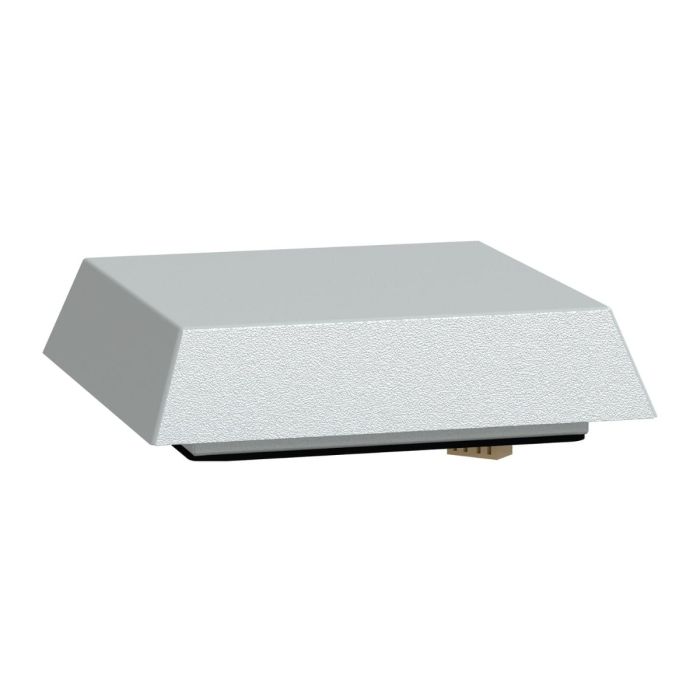

Schneider Electric Climasys Forced Vent. Roof, 575M3/H, 230V, With Roof Outlet Grille And Filter G2, Grey (Ral 7035)
Out of stock
SKU
NSYCVF575M230MF
Special Price EGP 23,983 Regular Price EGP 32,137
Quick Overview
Range: ClimaSys
Product type: Top hood with fan
Range compatibility: Prisma Prisma P
Input voltage: 230 V 50/60 Hz
ClimaSys CV forced ventilator. Top hood with fan. 230 V 50Hz or 60 Hz. 85W 50 Hz, 85W 60 Hz. Free flow rate with standard filter of 573 m3/h at 50 Hz and 350 m3/h at 60 Hz. 96 x 340 x 340 mm. Cut-out dimensions of 228 x 228 mm. Made in Hood steel Grey RAL 7035. Protection IP54.
| Main | |
| Range | ClimaSys |
| product name | ClimaSys CV |
| Product or component type | Top hood with fan |
| Range compatibility | Prisma Prisma P |
| Prisma Prisma PH | |
| Prisma Prisma iPM M | |
| Acti 9 enclosure | |
| Type of filter | G2 |
| Flow rate | With outlet grille cut-out 291 x 291 mm: 350 m3/h |
| Free flow rate: 575 m3/h at 50 Hz | |
| Input voltage | 230 V 50/60 Hz |
| Complementary | |
| Absorbed power | 85 W |
| Noise level < at | 64 dB |
| Height | External: 96 mm |
| Width | External: 340 mm |
| Depth | External : 340 mm |
| Cut-out dimensions | 228 x 228 mm |
| Material | Hood: steel |
| Colour | Hood: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Device composition | 1 hood: top of enclosure |
| 1 fan | |
| 1 fixing elements |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | NSYCVF575M230MF |
| Color | Black |
| IP Degree of Protection | IP54 |
