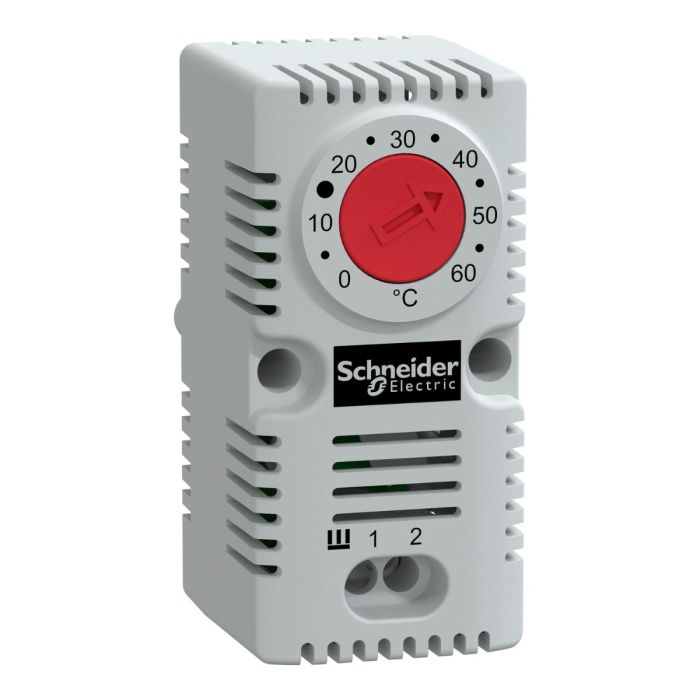

Schneider Electric Climasys CC Simple Thermostat, 250V, Temperature Range 0, 60°C, Normally Closed (NC)
In stock
SKU
NSYCCOTHC
Special Price EGP 728 Regular Price EGP 1,103
Schneider Electric Climasys CC Simple Thermostat, 250V, Temperature Range 0, 60°C, Normally Closed (NC) is available to buy in increments of 1
Quick Overview
Range: ClimaSys
Product type: Simple thermostat
Input Voltage: 250 V
Sensor Type: Bimetal
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Specifications:
| Main | |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Simple thermostat |
| Temperature setting range | 0…60 °C |
| Information displayed | Temperature in °C |
| Complementary | |
| Input voltage | 250 V |
| Sensor type | Bimetal |
| Contacts type and composition | NC |
| Contact resistance | 10 mOhm |
| Service life in cycles | 100000 cycles |
| Maximum switching capacity | 2 A 120...250 V AC inductive pf: 0.6 |
| 10 A 250 V AC resistive | |
| 15 A 120 V AC resistive | |
| 30 W DC | |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped |
| Height | External: 68 mm |
| Width | External: 33 mm |
| Depth | External : 44 mm |
| Net weight | 40 g |
| Mounting location | Spacial upright |
| 35 mm DIN rail | |
| Cross rails | |
| On mounting plate | |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 7 K +/- 0.4K |
| Number of outputs | 1 heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UL |
| Weight | 0.040000 |
|---|---|
| Brand | Schneider Electric |
| Model | NSYCCOTHC |
| Color | White |
| Depth [cm] | 4.4 |
| Width [cm] | 3.3 |
| Height [cm] | 6.8 |
| Range | UES |
| Family | PPUES |
| IP Degree of Protection | IP20 |
