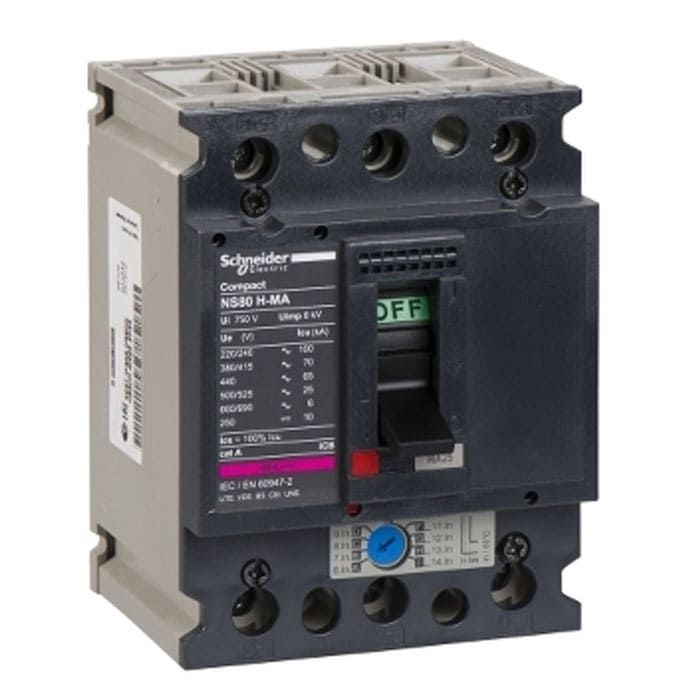

Schneider Electric Circuit Breaker, IEC, 25A, NEH Magnetic Trip
Out of stock
SKU
28102
Special Price EGP 9,542 Regular Price EGP 17,670
Quick Overview
Range: NS80H-MA
Product type: Circuit breaker
Device application: Motor
Numbers of poles: 3P
The Schneider Electric 28102 Circuit Breaker is designed for efficient and reliable protection of electrical circuits. This IEC-rated circuit breaker has a current rating of 25A and is equipped with a NEH magnetic trip unit. It serves as an essential component in electrical distribution systems, helping to prevent overload and short circuits.
| Main | |
| Range of product | NS80H-MA |
| Product or component type | Circuit breaker |
| Device short name | Compact NS80H |
| Circuit breaker name | Compact NS80H |
| Device application | Motor |
| Poles description | 3P |
| Protected poles description | 3t |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [In] rated current | 80 A at 65 °C |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | H |
| Breaking capacity | 10 kA at 600 V AC 50/60 Hz conforming to NEMA AB1 |
| 100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1 | |
| 65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1 | |
| 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 6 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service breaking capacity | 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 6 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Trip unit name | MA |
| Trip unit technology | Magnetic |
| Trip unit rating | 25 A |
| Protection type | Short-circuit protection (magnetic) |
| Pollution degree | 3 conforming to IEC 60947 |
| Complementary | |
| Control type | Toggle |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Upside connection | Tunnel terminal |
| Downside connection | Tunnel terminal |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| 7000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 | |
| Local signalling | Positive contact indication |
| Instantaneous pick-up adjustment type Ii | Adjustable |
| Instantaneous pick-up adjustment range | 6...14 x In |
| Zone selective interlocking ZSI | Without |
| Earth-leakage protection | Without |
| Height | 120 mm |
| Width | 90 mm |
| Depth | 80 mm |
| Environment | |
| Standards | IEC 60947-2 |
| Product certifications | ASEFA |
| ASTA | |
| KEMA | |
| LCIE | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | 28102 |
| Depth [cm] | 8 |
| Width [cm] | 9 |
| Height [cm] | 12 |
| Poles | 3P |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
