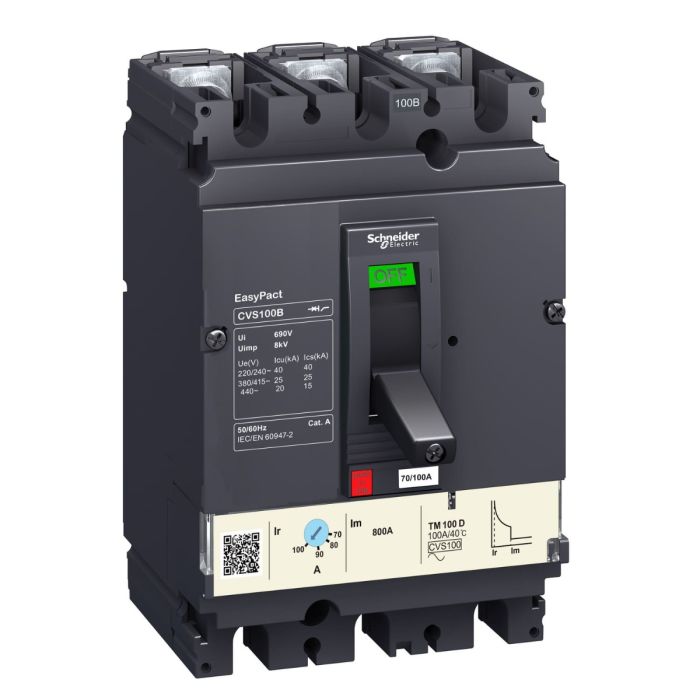

Schneider Electric Circuit Breaker Easypact CVS100F, 36 Ka At 415 Vac, 63 A Rating Thermal Magnetic Tm-D Trip Unit, 3P 3D
Range: EasyPact
Product type: Circuit breaker
Device application: Distribution
Poles: 3P
You May Also Like:
Schneider Electric Circuit Breaker , EasyPact EZCV250N , TMD, 63A, 3 Poles, 3DSpecial Price EGP 12,837 Regular Price EGP 25,673
EasyPact CVS100F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Specifications:
| Main | |
| Range | EasyPact |
| Range of product | EasyPact CVS100...250 |
| product name | EasyPact CVS |
| Device short name | CVS100F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 63 A at 40 °C |
| Network type | CA |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 63 A at 40 °C |
| Protection type | Short-circuit protection (magnetic) |
| Overload protection (thermal) | |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Breaking capacity code | F |
| [Ics] rated service breaking capacity | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 44.1…63 A |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| Instantaneous pick-up adjustment range | 500 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| Downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS100 |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| Net weight | 1.5 kg |
| Environment | |
| Standards | EN 60947-2 |
| IEC 60947-2 | |
| Product certifications | GOST |
| IEC | |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV510335 |
| Color | Black |
| Device Application | Distribution |
| Range | EasyPact |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 63 A at 40 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP40 |
