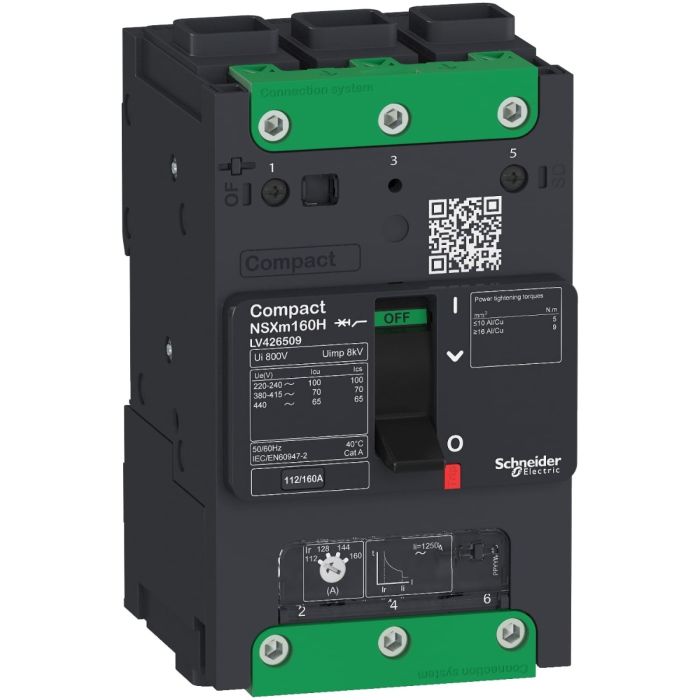

Schneider Electric, Circuit Breaker ComPact NSXm F (36 kA at 415 VAC), 3P 3d, 32 A rating TMD trip unit, EverLink connectors
Out of stock
SKU
LV426302
Special Price EGP 10,060 Regular Price EGP 15,242
Quick Overview
Range: ComPact
Product type: Circuit breaker
Device application: Protection
Number of poles: 3P
It is a Compact NSXm molded case circuit breaker, 32A, 36kA at 415VAC, for all LV standard applications. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. Compact NSXm is one of the smallest MCCB on the market, 81mm (W) x 137mm (H) x 80mm (D). This is a 3 poles version with an embedded thermal-magnetic trip unit. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
specifications:
| Main | |
| Range | ComPact |
| Product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 32F |
| Product or component type | Circuit breaker |
| Device application | Protection |
| Distribution | |
| Number of poles | 3P |
| Protected poles description | 3D |
| [In] rated current | 32 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 85 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Performance level | F 36 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | By screws |
| Clip-on | |
| Complementary | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| 85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In |
| 20000 cycles at 440 V In/2 | |
| 5000 cycles at 690 V In | |
| 10000 cycles at 690 V In/2 | |
| Mounting support | Plate |
| DIN rail | |
| Connection terminals | 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper |
| 1 Everlink lug wire size 2.5…70 mm², flexible copper | |
| Connection pitch | 35 mm with spreaders |
| 27 mm without spreaders | |
| 9 mm pitches | 9 module |
| Protection type | L : for overload protection (thermal) |
| I : for short-circuit protection (magnetic) | |
| Trip unit rating | 32 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [Im] magnetic protection pick-up range | 600 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF |
| 1 slot(s) for alarm switch SD | |
| 1 slot(s) for voltage release MN or MX | |
| Width (W) | 81 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| Net weight | 1.06 kg |
| Colour | Grey (RAL 7016) |
| Environment | |
| Standards | EN/IEC 60947 |
| Product certifications | CCC |
| EAC | |
| Marine | |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating |
| 2000...5000 m with derating |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV426302 |
| Color | Gray |
| Device Application | Distribution, Protection |
| Range | NSXm |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 32 A at 40 °C |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
