Schneider Electric Circuit breaker ComPact NSX630H,70 kA at 415 VAC,MicroLogic 1.3 M trip unit 500 A, 3 Poles 3D
Out of stock
SKU
LV432950
Special Price EGP 72,663 Regular Price EGP 110,096
Quick Overview
Range: ComPact
Product type: Circuit breaker
Device application: Motor
Number of poles: 3P
You May Also Like:
Schneider Electric Keylock Adapter for Compact NSX 100, 160, 250, Locking for Motor MechanismSpecial Price EGP 6,069 Regular Price EGP 9,196
Schneider Electric Circuit breaker, ComPacT NSX250N,50kA/415VAC,3 Poles, MicroLogic 2.2 Trip Unit 250ASpecial Price EGP 29,351 Regular Price EGP 44,471
Compact NSX100B Circuit Breaker, 25kA at 415VAC, TMD Trip Unit, 100A, 3 Poles, 3DSpecial Price EGP 9,292 Regular Price EGP 14,079
Schneider Electric Variable Speed Drive Altivar Machine ATV320, 5.5 kW, 380-500V, 3 Phases, CompactSpecial Price EGP 33,012 Regular Price EGP 60,021
Schneider Electric, Circuit breaker,ComPacT NSX100N,50kA/415VAC,4 poles,MicroLogic 2.2 trip unit 100ASpecial Price EGP 25,747 Regular Price EGP 39,011
Schneider Electric Circuit Breaker,ComPacT NSX630F, 36kA/415VAC,4 Poles, MicroLogic 2.3 trip unit 630ASpecial Price EGP 67,814 Regular Price EGP 102,748
Schneider Electric Standard Mn Undervoltage Release, Compact NSXm, Rated Voltage 220/240 Vac 50 Hz, 208/240 Vac 60HzSpecial Price EGP 8,404 Regular Price EGP 12,734
Schneider Electric, Standard motor mechanism module MT100/160,ComPact NSX100/160,220/240 VAC 50/60 Hz,208/277 VAC 60 HzSpecial Price EGP 37,612 Regular Price EGP 56,989
Schneider Electric Compact NSXM Circuit Breaker, 160 Amp, 3 Poles, 50kA at 415V AC, 3D, TMD Trip Unit, EverLink ConnectorsSpecial Price EGP 16,831 Regular Price EGP 25,502
Schneider Electric Compact NSXM Circuit Breaker, 40A, 3P, 25kA at 415V AC, TMD Trip Unit, EverLink ConnectorsSpecial Price EGP 8,562 Regular Price EGP 12,973
Circuit Breaker - Compact NSX250B, 25kA at 415V AC, Micrologic 2.2 Trip Unit, 250A, 4 Poles, 4DSpecial Price EGP 31,646 Regular Price EGP 47,948
Compact NSX Direct Rotary Handle, 100/160/250 with Black Rotary, IP40Special Price EGP 7,599 Regular Price EGP 11,514
Compact NSX Direct Rotary Handle, 400/630 with Black Rotary, IP40Special Price EGP 5,556 Regular Price EGP 8,419
Compact NSX100F Circuit Breaker, 36kA at 415VAC, Micrologic, 3 Poles, TMD trip unit 16ASpecial Price EGP 10,925 Regular Price EGP 16,553
Compact NSX100H Circuit Breaker, 70kA at 415VAC, MA Trip Unit, 12.5A, 3 Poles, 3DSpecial Price EGP 16,054 Regular Price EGP 24,325
Compact NSX100H Circuit Breaker, 70kA at 415VAC, MA Trip Unit, 25A, 3 Poles, 3DSpecial Price EGP 16,054 Regular Price EGP 24,325
Compact NSX100H Circuit Breaker, 70kA at 415VAC, TMD Trip Unit, 25A, 3 Poles, 3DSpecial Price EGP 13,671 Regular Price EGP 20,714
Circuit Breaker ComPacT NSXm B (25kA At 415VAC), 4 Poles 3d, 32ASpecial Price EGP 11,783 Regular Price EGP 17,852
Compact NSX100N Circuit Breaker, 50kA at 415VAC, Micrologic 2.2 Trip Unit, 100A, 3 Poles, 3DSpecial Price EGP 19,216 Regular Price EGP 29,116

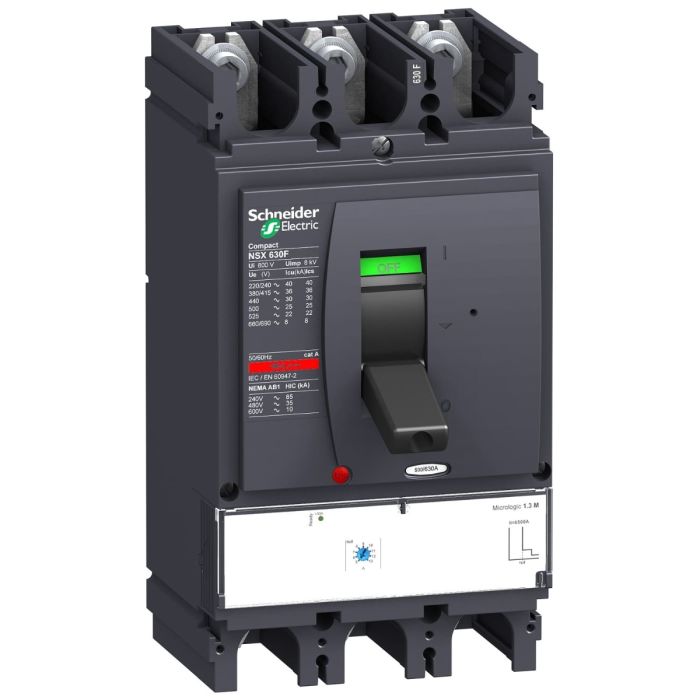

This Compact NSX630H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 1.3 M trip unit, with 500A rating. Micrologic 1.3 M trip unit provides an adjustable short time protection and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX630H is part of Schneider Electric EcoStruxure Power architecture.
Specifications:
| Main | |
| Range | ComPact |
| product name | ComPact NSX |
| Range of product | ComPact NSX400...630 |
| Device short name | NSX630H |
| Product or component type | Circuit breaker |
| Device application | Motor |
| Number of poles | 3P |
| Protected poles description | 3t |
| [In] rated current | 500 A at 65 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 85 kA at 240 V AC 50/60 Hz conforming to UL 508 |
| 65 kA at 480 V AC 50/60 Hz conforming to UL 508 | |
| 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 20 kA at 600 V AC 50/60 Hz conforming to UL 508 | |
| 20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Performance level | H 70 kA 415 V AC |
| Trip unit name | MicroLogic 1.3 M |
| Trip unit technology | Electronic |
| Trip unit protection functions | I |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| Complementary | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 |
| 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 15000 cycles |
| Electrical durability | 2000 cycles at 690 V In |
| 6000 cycles at 690 V In/2 | |
| 4000 cycles at 440 V In | |
| 8000 cycles at 440 V In/2 | |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 45 mm |
| Protection type | I : for short-circuit protection (magnetic) |
| Trip unit rating | 500 A at 65 °C |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 3000 A |
| 6500 A | |
| 5000 A | |
| 6000 A | |
| 3500 A | |
| 5500 A | |
| 4500 A | |
| 4000 A | |
| 2500 A | |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 6500 A |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Number of slots for electrical auxiliaries | 6 slot(s) |
| Local signalling | Flashing LED (green) for ready to operate |
| Width (W) | 140 mm |
| Height (H) | 255 mm |
| Depth (D) | 110 mm |
| Net weight | 6.2 kg |
| Environment | |
| Standards | EN/IEC 60947 |
| Product certifications | CCC |
| EAC | |
| Marine | |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating |
| 2000 m...5000 m with derating |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV432950 |
| Device Application | Motor |
| Range | ComPacT |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 500 A at 65 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
