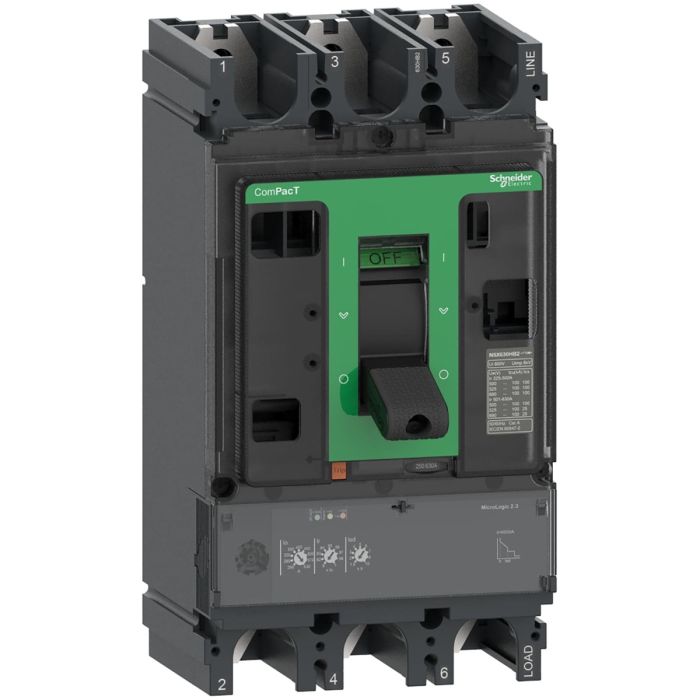

Schneider Electric Circuit Breaker, ComPacT NSX400F,36kA/415VAC,3 Poles, MicroLogic 2.3 Trip Unit 400A
Out of stock
SKU
C40F32D400
Special Price EGP 37,944 Regular Price EGP 57,490
Quick Overview
Range: ComPacT
Product type: Circuit breaker
Device application: Distribution
Number of poles: 3P
This ComPacT NSX400F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit,with 400A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections,and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947),CCC,EAC and marine specifications. ComPacT NSX400F is part of Schneider Electric EcoStruxure Power architecture.
Specifications:
| Main | |
| Range | ComPacT |
| product name | ComPacT NSX |
| Device short name | NSX400F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 400 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 | |
| 35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 | |
| 20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1 | |
| Performance level | F 36 kA 415 V AC |
| Trip unit name | MicroLogic 2.3 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoI |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| Complementary | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 15000 cycles |
| Electrical durability | 12000 cycles at 440 V In/2 |
| 6000 cycles at 440 V In | |
| 6000 cycles at 690 V In/2 | |
| 3000 cycles at 690 V In | |
| Power dissipation per pole | 19.2 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Flat on the back | |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 45 mm |
| Protection type | L : for overload protection (long time) |
| So : for short time short-circuit protection with fixed delay | |
| I : for instantaneous short-circuit protection | |
| Trip unit rating | 400 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 160…400 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 400 s at 1.5 x Ir |
| 16 s at 6 x Ir | |
| 11 s at 7.2 x Ir | |
| Thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 4800 A |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Number of slots for electrical auxiliaries | 6 slot(s) |
| Local signalling | Flashing LED (green) for ready to operate |
| LED 105 % Ir (red) for overload | |
| LED 90 % Ir (orange) for overload | |
| Width (W) | 140 mm |
| Height (H) | 255 mm |
| Depth (D) | 110 mm |
| Net weight | 6.05 kg |
| Environment | |
| Standards | EN/IEC 60947-2 |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating |
| 2000 m...5000 m with derating |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | C40F32D400 |
| Device Application | Distribution |
| Range | NSX |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 400 A at 40 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
