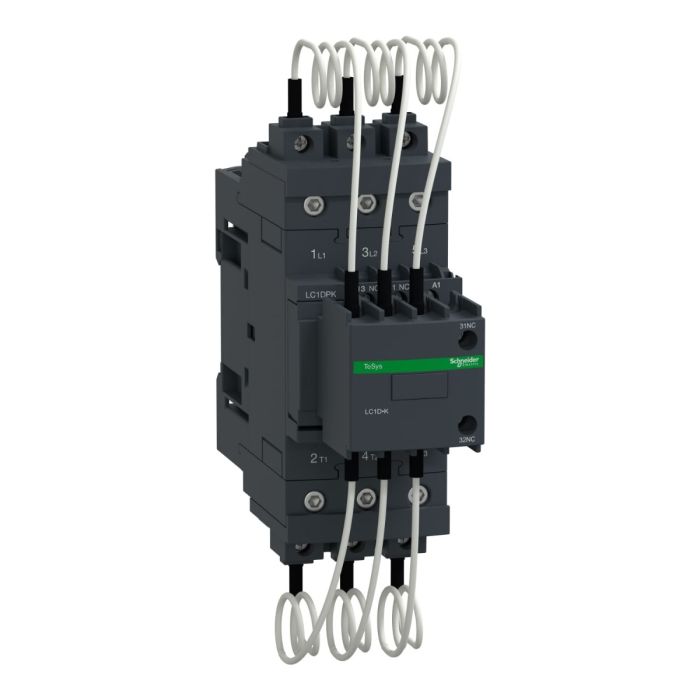

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 40kVAR@400V 50Hz (67kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Specifications:

Main
Range	TeSys
	TeSys Deca
Product name	TeSys LC1D.K
	TeSys Deca
Product or component type	Capacitor duty contactor
Device short name	LC1DTK
Device application	Control
Contactor application	Power factor correction
Utilisation category	AC-6b
Poles description	3P
power pole contact composition	3 NO
Device location in system	Line interruption
	Inside delta interruption
[Ue] rated operational voltage	Power circuit: 690 V AC 50/60 Hz
Reactive power rating	22 kvar at 230 V AC 50 Hz 60 °C
	40 kvar at 400 V AC 50 Hz 60 °C
	43 kvar at 440 V AC 50 Hz 60 °C
	67 kvar at 690 V AC 50 Hz 60 °C
	20 kvar at 230 V AC 60 Hz 60 °C
	40 kvar at 460 V AC 60 Hz 60 °C
	50 kvar at 575 V AC 60 Hz 60 °C
Control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	220 V AC 50/60 Hz
Auxiliary contact composition	1 NO + 2 NC instantaneous
Electrical durability	300000 cycles at Ue 400 V
	200000 cycles at Ue 690 V
Mounting support	DIN rail
	Plate
Standards	EN/IEC 60947-1
	EN/IEC 60947-4-1
	UL 60947-4-1
	CSA C22.2 No 60947-4-1
	IEC 60335-1
Product certifications	IECEE CB Scheme
	UL
	CSA
	UKCA
Connections - terminals	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
	Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
	Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
	Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
	Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid
	Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid
	Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with or without cable end
	Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with or without cable end
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals
	Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm²
	Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35 mm²
Maximum operating rate	100 cyc/h
Complementary
Auxiliary contacts type	type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection	IP20 front face conforming to IEC 60529
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-60…80 °C
Operating altitude	0...3000 m
Height	166 mm
Width	55 mm
Depth	156 mm
Net weight	1.3 kg

More Information

More Information
Weight	3.000000
Brand	Schneider Electric
Model	LC1DTKM7
Range	Capacitor Contactors
Family	PPCTR
