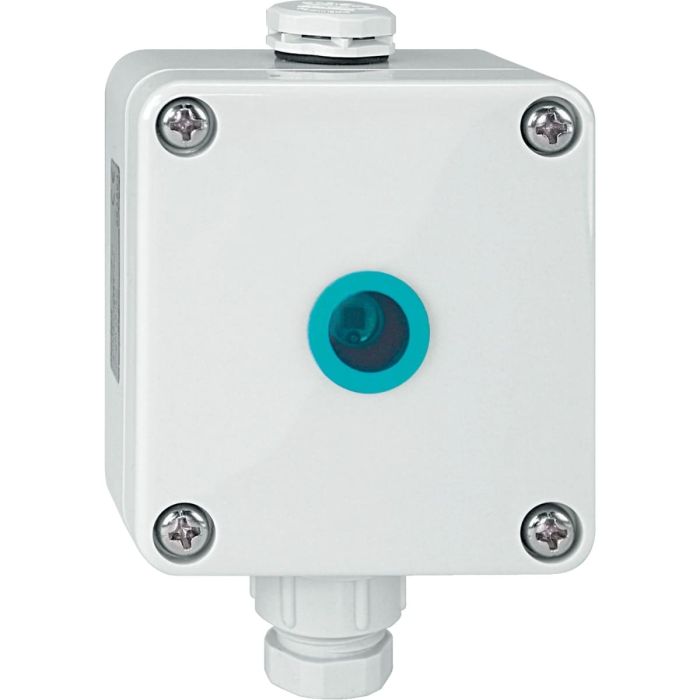

Schneider Electric Brightness Sensor, Light Grey
Range: KNX
Product type: Brightness sensor
Wiring device mounting: Surface
Color: Light grey (RAL 7035)
The brightness sensor is required for recording and evaluating brightness. Brightness is recorded via a photoelectric diode and electronically converted into an analogue output signal of 0 V - 10 V. For external installation and connection to the weather station REG-K/4-gang. This device provide the supply voltage necessary to operate the sensor. Measuring range: 0 to 60,000 lux, linear. Output: 0-10 V short-circuit-proof. External power supply:. Voltage: 24 V DC (15-30 V DC). Power consumption: approx. 5 mA. General specifications:. Incoming cable: using PG7 screw fitting. Recommended cable: 3 x 0.25 mm². Type of protection: IP 65.
Specifications:
Main | |
Range of product | KNX |
Product or component type | Brightness sensor |
Main colour tint | Light grey |
Complementary | |
Bus type | KNX |
wiring device mounting | Surface |
Colour tint | Light grey (RAL 7035) |
Environment | |
IP degree of protection | IP65 |
| Weight | 0.102000 |
|---|---|
| Brand | Schneider Electric |
| Model | MTN663593 |
| Color | Light Gray |
| Range | KNX |
| IP Degree of Protection | IP65 |
