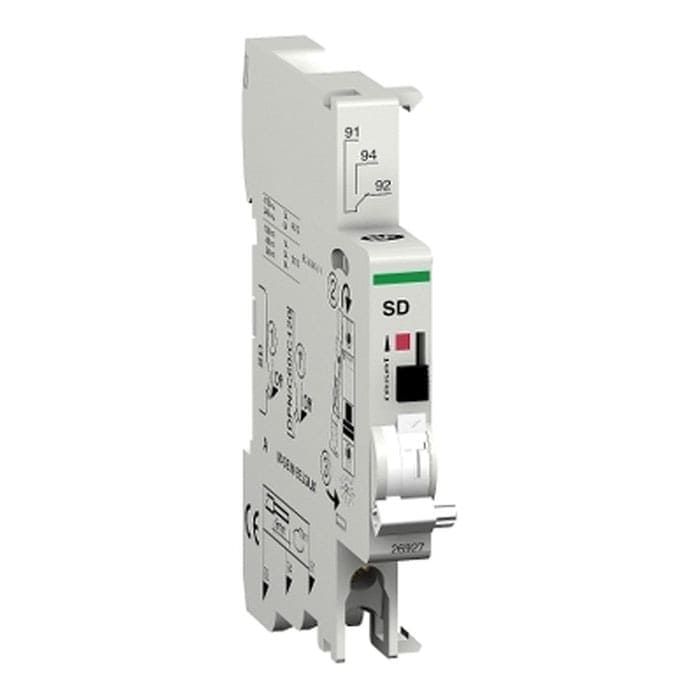

Schneider Electric Auxiliary Contact, 1 NO, Rated for 380-415 V, 6 A, Compatible with C60 Circuit Breakers
Out of stock
SKU
26927
Special Price EGP 1,603 Regular Price EGP 2,447
Quick Overview
Range: Multi9
Product type: Fault contact
Mounting mode: Fixed
Voltage Rating: 380-415 V
The Schneider Electric 26927 Auxiliary Contact is a versatile and reliable component designed to enhance the functionality of C60 circuit breakers. It features one Normally Open (NO) contact configuration and is rated for use with voltages between 380-415 V. With a current rating of 6 A, it is suitable for various electrical applications.
| Main | |
| range of product | Multi9 |
| Product or Component Type | Fault contact |
| Device short name | SD |
| Signal contacts composition | 1 C/O |
| Line Rated Current | AC-12 3 A at 380...415 V, AC 50/60 Hz |
| AC-12 6 A at 220...240 V, AC 50/60 Hz | |
| DC-12 1 A at 130 V, DC | |
| DC-12 1.5 A at 60 V, DC | |
| DC-12 2 A at 48 V, DC | |
| DC-12 6 A at 24 V, DC | |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 |
| Product Certifications | ASTA |
| KEMA | |
| ASEFA | |
| LCIE | |
| Complementary | |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Height | 3.3 in (84 mm) |
| Width | 0.4 in (9 mm) |
| Depth | 2.9 in (73 mm) |
| Connections - terminals | Clamp terminal2 0.002 in² (1.5 mm²) - flexible |
| Clamp terminal2 0.002 in² (1.5 mm²) - rigid | |
| Clamp terminal1 0.0008…0.004 in² (0.5…2.5 mm²) - flexible | |
| Clamp terminal1 0.0008…0.004 in² (0.5…2.5 mm²) - rigid | |
| Wire stripping length | 0.4 in (9 mm) |
| Tightening torque | 8.9 lbf.in (1 N.m) |
| Environment | |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Pollution degree | 3 EN/IEC 60947-5-1 |
| Tropicalisation | 2 EN/IEC 60947-5-1 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Ambient air temperature for operation | -13…122 °F (-25…50 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ordering and shipping details | |
| Category | 01078-DE2 MISC |
| Discount Schedule | DE2 |
| GTIN | 3.30343E+12 |
| Returnability | No |
| Country of origin | BE |
| Weight | 0.030000 |
|---|---|
| Brand | Schneider Electric |
| Model | 26927 |
| Depth [cm] | 7.3 |
| Width [cm] | 0.9 |
| Height [cm] | 8.4 |
| Range | Multi9 |
| Type | Auxiliary Contact |
| IP Degree of Protection | IP20 |
