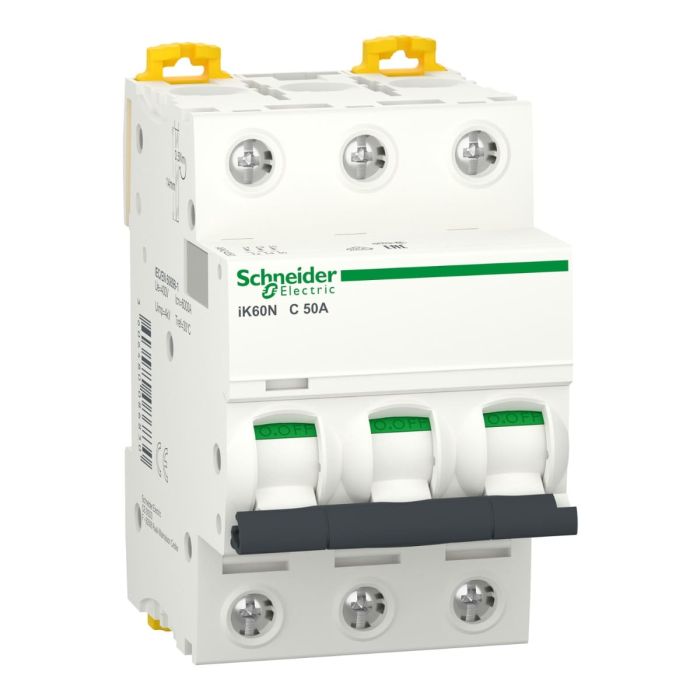

Schneider Electric Acti9 iK60N, 3P, 50 A Miniature circuit-breaker, C curve, 6000 A (IEC 60898-1)
Poles description: 3P
Number of protected poles: 3
[In] rated current: 50 A at 30 °C
Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 50A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. It has a double clip for dismounting with comb busbar in place. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
Specifications:
Device application | Distribution |
Range | Acti9 |
Product name | Acti9 iK60 |
product or component type | Miniature circuit-breaker |
Device short name | iK60N |
poles description | 3P |
Number of protected poles | 3 |
[In] rated current | 50 A at 30 °C |
Network type | AC |
Trip unit technology | Thermal-magnetic |
Curve code | C |
Breaking capacity | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
Standards | EN/IEC 60898-1 |
Complementary | |
Network frequency | 50/60 Hz |
Magnetic tripping limit | 5...10 x In |
[Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz |
Limitation class | 3 conforming to EN/IEC 60898-1 |
[Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
[Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
Contact position indicator | No |
Control type | Toggle |
local signalling | ON/OFF indication |
mounting mode | Clip-on |
mounting support | DIN rail |
9 mm pitches | 6 |
Height | 85 mm |
Width | 54 mm |
Depth | 78.5 mm |
net weight | 300 g |
Colour | White |
Mechanical durability | 20000 cycles |
Electrical durability | 10000 cycles |
Locking options description | Padlocking device |
Connections - terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid |
Tunnel type terminal (top or bottom) 1…25 mm² flexible | |
Wire stripping length | 14 mm for top or bottom connection |
Tightening torque | 3.5 N.m top or bottom |
Earth-leakage protection | Without |
Environment | |
IP degree of protection | IP20 conforming to IEC 60529 |
Pollution degree | 2 conforming to EN/IEC 60898-1 |
Overvoltage category | II |
Ambient air temperature for operation | -25…60 °C |
Ambient air temperature for storage | -40…85 °C |
| Weight | 0.300000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9K24350 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.85 |
| Width [cm] | 5.4 |
| Height [cm] | 8.5 |
| Range | IK602P |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 3P |
| [In] Rated Current | 50 A at 30 °C |
| IP Degree of Protection | IP20 |
